What is Argo Rollout, is it related to ArgoCD?

Argo Rollouts is a progressive delivery controller for K8S which provides advanced deployment capabilities such as blue-green, canary.....

alt text

It doesn't relate to ArgoCD. Argo Rollouts is often used in conjunction with Argo CD, the Argo project’s continuous delivery (CD) tool. Argo CD implements declarative GitOps-driven CD for Kubernetes, while Rollouts offers a controller and CRDs that let you robustly manage blue-green and canary deployments

What is Canary/Blue-Green deployment?

Umm, if i explain complete for this, this article will be long to read so i will not include it here, only focus on the main objective.

In case you don't know about it, google is your friend xD

Installation

Install Argo Rollouts

I will use the default install, assume you have Argocd installed

kubectl create namespace argo-rollouts
kubectl apply -n argo-rollouts -f https://github.com/argoproj/argo-rollouts/releases/latest/download/install.yaml

Output after the command is executed is like this:

namespace/argo-rollouts created
customresourcedefinition.apiextensions.k8s.io/analysisruns.argoproj.io created
customresourcedefinition.apiextensions.k8s.io/analysistemplates.argoproj.io created
customresourcedefinition.apiextensions.k8s.io/clusteranalysistemplates.argoproj.io created
customresourcedefinition.apiextensions.k8s.io/experiments.argoproj.io created
customresourcedefinition.apiextensions.k8s.io/rollouts.argoproj.io created
serviceaccount/argo-rollouts created
clusterrole.rbac.authorization.k8s.io/argo-rollouts created
clusterrole.rbac.authorization.k8s.io/argo-rollouts-aggregate-to-admin created
clusterrole.rbac.authorization.k8s.io/argo-rollouts-aggregate-to-edit created
clusterrole.rbac.authorization.k8s.io/argo-rollouts-aggregate-to-view created
clusterrolebinding.rbac.authorization.k8s.io/argo-rollouts created
configmap/argo-rollouts-config created
secret/argo-rollouts-notification-secret created
service/argo-rollouts-metrics created
deployment.apps/argo-rollouts created

Make sure argo rollout controller is ready: kubectl get pods -n argo-rollouts

NAME                             READY   STATUS    RESTARTS   AGE
argo-rollouts-5498f9bc4b-8xt26   1/1     Running   0          69s

Extra note: If you have multiple k8s clusters like mine, you have to install Argo Rollout to each cluster you want to use feature rollouts for canary/blue-green deployment.

Install kubectl plugin for Argo Rollouts

Download and install

curl -LO https://github.com/argoproj/argo-rollouts/releases/latest/download/kubectl-argo-rollouts-linux-amd64
chmod +x kubectl-argo-rollouts-linux-amd64
sudo mv kubectl-argo-rollouts-linux-amd64 /usr/local/bin/kubectl-argo-rollouts

Check: kubectl argo rollouts version

kubectl-argo-rollouts: v1.8.0+9c5d75d
  BuildDate: 2025-01-30T15:54:30Z
  GitCommit: 9c5d75d84a998bc0515caa64085bf8c23f2a41b7
  GitTreeState: clean
  GoVersion: go1.23.5
  Compiler: gc
  Platform: linux/amd64

Testing canary rollout

Change from deployment to canary rollout

I already have argocd deployment with helm running, now i want to migrate it to Argo rollouts. How i can achieve this? First, remove deployment.yaml and add rollout.yaml. You will notice little change in apiVersion and kind. Then strategy, will be defined like below

  strategy:
      canary:
        steps:
          - setWeight: 25  # 25% traffic to new version (with replica count 4, 1 pod will be updated)
          - pause: { duration: 300s }  # wait 5 minutes before next step
          - setWeight: 50  #  50% traffic to new version
          - pause: {}  # wait indefinitely for manual approval

Example picture after switch from deployment to rollout

alt text

Check the current version before rollout with canary:

for i in {0..100}; do curl -XGET "http://golang-webapp-testing.rke2-cluster.kienlt.local/version"; done
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1

Ok. Let's build a new image and manually switch image tags for the fast demo. Assume the new tag will be v3.0.0. Code repo: https://github.com/BlackMetalz/Golang-Webapp-Testing

docker build . -t kienlt992/golang-webapp-testing:v3.0.0
docker push kienlt992/golang-webapp-testing:v3.0.0

Check the current status of rollout after migration:

kubectl argo rollouts get rollout -n golang-app golang-webapp-testing-production

Name:            golang-webapp-testing-production
Namespace:       golang-app
Status:          ✔ Healthy
Strategy:        Canary
  Step:          4/4
  SetWeight:     100
  ActualWeight:  100
Images:          kienlt992/golang-webapp-testing:v2.1.1 (stable)
Replicas:
  Desired:       4
  Current:       4
  Updated:       4
  Ready:         4
  Available:     4

NAME                                                          KIND        STATUS     AGE  INFO
⟳ golang-webapp-testing-production                            Rollout     ✔ Healthy  18m
└──# revision:1
   └──⧉ golang-webapp-testing-production-6f5b799cf7           ReplicaSet  ✔ Healthy  18m  stable
      ├──□ golang-webapp-testing-production-6f5b799cf7-b5rh7  Pod         ✔ Running  18m  ready:1/1
      ├──□ golang-webapp-testing-production-6f5b799cf7-d9j8r  Pod         ✔ Running  18m  ready:1/1
      ├──□ golang-webapp-testing-production-6f5b799cf7-df5b9  Pod         ✔ Running  18m  ready:1/1
      └──□ golang-webapp-testing-production-6f5b799cf7-njrfn  Pod         ✔ Running  18m  ready:1/1

Ok, now update the manifest to use image v3.0.0 and sync. Then use the command to watch the rollout progress:

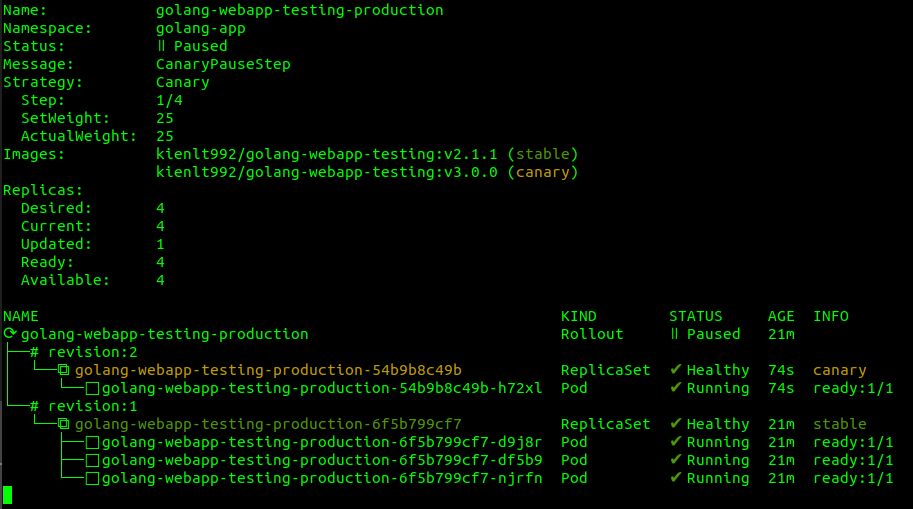

kubectl argo rollouts get rollout -n golang-app golang-webapp-testing-production --watch

alt text

Output for check version, you can see there are some requests that have version 3.0.0 already!

for i in {0..100}; do curl -XGET "http://golang-webapp-testing.rke2-cluster.kienlt.local/version" && sleep 1; done
Version: 3.0.0
Version: 2.1.1
Version: 2.1.1
Version: 3.0.0
Version: 3.0.0
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1
Version: 2.1.1

After 5 minutes, the rollout for the canary will increase to 50% as we defined in the rollout

alt text

We assume our application is good and ready to promote 50% left for complete rollout.

kubectl argo rollouts promote -n golang-app golang-webapp-testing-production
rollout 'golang-webapp-testing-production' promoted

Check again rollout status again for the final

alt text

Check request again, you can see it is 100% switched to version 3.0.0 right now!

for i in {0..100}; do curl -XGET "http://golang-webapp-testing.rke2-cluster.kienlt.local/version" && sleep 1; done
Version: 3.0.0
Version: 3.0.0
Version: 3.0.0
Version: 3.0.0
Version: 3.0.0
Version: 3.0.0
Version: 3.0.0
Version: 3.0.0
Version: 3.0.0
Version: 3.0.0
.......

How could we monitor and rollback canary deployment if new version has the issue?

This is a good question to improve this article. Let's create canary deployment first:

kubectl argo rollouts get rollout golang-webapp-testing-production -n golang-app
Name:            golang-webapp-testing-production
Namespace:       golang-app
Status:          ॥ Paused
Message:         CanaryPauseStep
Strategy:        Canary
  Step:          3/4
  SetWeight:     50
  ActualWeight:  50
Images:          kienlt992/golang-webapp-testing:v4.0.0 (stable)
                 kienlt992/golang-webapp-testing:v5.0.0 (canary)
Replicas:
  Desired:       4
  Current:       4
  Updated:       2
  Ready:         4
  Available:     4

NAME                                                          KIND        STATUS        AGE    INFO
⟳ golang-webapp-testing-production                            Rollout     ॥ Paused      46h
├──# revision:10
│  └──⧉ golang-webapp-testing-production-6c8c79b696           ReplicaSet  ✔ Healthy     6m56s  canary
│     ├──□ golang-webapp-testing-production-6c8c79b696-dsltf  Pod         ✔ Running     6m56s  ready:1/1
│     └──□ golang-webapp-testing-production-6c8c79b696-ggh56  Pod         ✔ Running     107s   ready:1/1
├──# revision:9
│  └──⧉ golang-webapp-testing-production-86bb7d659f           ReplicaSet  ✔ Healthy     30h    stable
│     ├──□ golang-webapp-testing-production-86bb7d659f-r6drp  Pod         ✔ Running     16m    ready:1/1
│     └──□ golang-webapp-testing-production-86bb7d659f-zgv7h  Pod         ✔ Running     16m    ready:1/1

Make some requests for testing, you can see status code 504 right below

while true;do  status_code=$(curl -s -o /dev/null -w "%{http_code}" http://golang-webapp-testing.rke2-cluster.kienlt.local/version); echo "Status code: $status_code"; sleep 1; done
Status code: 504
Status code: 200
Status code: 200
Status code: 200
Status code: 200
Status code: 200
Status code: 200
Status code: 200
Status code: 200
Status code: 504
Status code: 200
Status code: 200
Status code: 200
Status code: 200
Status code: 200
Status code: 200
Status code: 200
Status code: 504
Status code: 200
Status code: 504

Query in Prometheus:

alt text

Wait for a little time and see the alert:

alt text

Hmm? Wait a minute? 100%? This is not correct. Let me fix this by correcting Prometheus rule xD

alt text

Now we need to rollback the canary rollout. And the request will be 200 again

kubectl argo rollouts abort  golang-webapp-testing-production -n golang-app
rollout 'golang-webapp-testing-production' aborted

Get rollout status:

kubectl argo rollouts get rollout golang-webapp-testing-production -n golang-app
Name:            golang-webapp-testing-production
Namespace:       golang-app
Status:          ✖ Degraded
Message:         RolloutAborted: Rollout aborted update to revision 10
Strategy:        Canary
  Step:          0/4
  SetWeight:     0
  ActualWeight:  0
Images:          kienlt992/golang-webapp-testing:v4.0.0 (stable)
Replicas:
  Desired:       4
  Current:       4
  Updated:       0
  Ready:         4
  Available:     4

NAME                                                          KIND        STATUS        AGE  INFO
⟳ golang-webapp-testing-production                            Rollout     ✖ Degraded    46h
├──# revision:10
│  └──⧉ golang-webapp-testing-production-6c8c79b696           ReplicaSet  • ScaledDown  21m  canary
├──# revision:9
│  └──⧉ golang-webapp-testing-production-86bb7d659f           ReplicaSet  ✔ Healthy     30h  stable
│     ├──□ golang-webapp-testing-production-86bb7d659f-r6drp  Pod         ✔ Running     30m  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-zgv7h  Pod         ✔ Running     30m  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-6bbhk  Pod         ✔ Running     32s  ready:1/1
│     └──□ golang-webapp-testing-production-86bb7d659f-6qfbd  Pod         ✔ Running     32s  ready:1/1

After sometimes....

alt text

Let's make status Healthy again by (Don't focus on correct revision, i was test abort and promote multiple times And it won't affect at all i guess xD)

# kubectl argo rollouts undo golang-webapp-testing-production --to-revision=9 -n golang-app
INFO[0000] unknown field "spec.template.metadata.creationTimestamp"
rollout 'golang-webapp-testing-production' undo
# kubectl argo rollouts get rollout golang-webapp-testing-production -n golang-app
Name:            golang-webapp-testing-production
Namespace:       golang-app
Status:          ✔ Healthy
Strategy:        Canary
  Step:          4/4
  SetWeight:     100
  ActualWeight:  100
Images:          kienlt992/golang-webapp-testing:v4.0.0 (stable)
Replicas:
  Desired:       4
  Current:       4
  Updated:       4
  Ready:         4
  Available:     4

NAME                                                          KIND        STATUS        AGE    INFO
⟳ golang-webapp-testing-production                            Rollout     ✔ Healthy     47h
├──# revision:13
│  └──⧉ golang-webapp-testing-production-86bb7d659f           ReplicaSet  ✔ Healthy     31h    stable
│     ├──□ golang-webapp-testing-production-86bb7d659f-r6drp  Pod         ✔ Running     77m    ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-zgv7h  Pod         ✔ Running     77m    ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-hwd2s  Pod         ✔ Running     3m43s  ready:1/1
│     └──□ golang-webapp-testing-production-86bb7d659f-mt5fp  Pod         ✔ Running     3m43s  ready:1/1
├──# revision:12
│  └──⧉ golang-webapp-testing-production-6c8c79b696           ReplicaSet  • ScaledDown  67m
├──# revision:11
│  └──⧉ golang-webapp-testing-production-54b9b8c49b           ReplicaSet  • ScaledDown  46h
└──# revision:1
   └──⧉ golang-webapp-testing-production-6f5b799cf7           ReplicaSet  • ScaledDown  47h

Trying blue-green deployment

Config rollout for blue-green

Just change strategy section from previous rollout:

  strategy:
      blueGreen:
        activeService: {{ include "golang-webapp-testing.fullname" . }}-active
        previewService: {{ include "golang-webapp-testing.fullname" . }}-passive
        autoPromotionEnabled: false  # Do not automatically promote the new ReplicaSet to the active service
        # autoPromotionSeconds: 300  # Wait 300 seconds before automatically promoting the new ReplicaSet to the active service

Add/Update service for blue-green deployment

apiVersion: v1
kind: Service
metadata:
  name: {{ include "golang-webapp-testing.fullname" . }}-active
  labels:
    {{- include "golang-webapp-testing.labels" . | nindent 4 }}
spec:
  type: {{ .Values.service.type }}
  ports:
    - port: {{ .Values.service.port }}
      targetPort: http
      protocol: TCP
      name: http
  selector:
    {{- include "golang-webapp-testing.selectorLabels" . | nindent 4 }}
---
apiVersion: v1
kind: Service
metadata:
  name: {{ include "golang-webapp-testing.fullname" . }}-passive
  labels:
    {{- include "golang-webapp-testing.labels" . | nindent 4 }}
spec:
  type: {{ .Values.service.type }}
  ports:
    - port: {{ .Values.service.port }}
      targetPort: http
      protocol: TCP
      name: http
  selector:
    {{- include "golang-webapp-testing.selectorLabels" . | nindent 4 }}

Also you need to update your ingress as well (like mine) for expose service. Just add -active after service name. Then you will be able to access your service after switching to blue-green rollouts.

{{- if .Values.ingress.enabled -}}
{{- $fullName := include "golang-webapp-testing.fullname" . -}}
{{- $svcPort := .Values.service.port -}}
....... etc ...........
  rules:
    {{- range .Values.ingress.hosts }}
    - host: {{ .host | quote }}
      http:
        paths:
          {{- range .paths }}
          - path: {{ .path }}
            {{- if and .pathType (semverCompare ">=1.18-0" $.Capabilities.KubeVersion.GitVersion) }}
            pathType: {{ .pathType }}
            {{- end }}
            backend:
              {{- if semverCompare ">=1.19-0" $.Capabilities.KubeVersion.GitVersion }}
              service:
                name: {{ $fullName }}-active
                port:
                  number: {{ $svcPort }}
              {{- else }}
              serviceName: {{ $fullName }}-active
              servicePort: {{ $svcPort }}

After that, push the changes to manifest repo and get synced with Argocd.

alt text

Check rollout status after Argocd is healthy. You can see Strategy changed to BlueGreen

# kubectl argo rollouts get rollout -n golang-app golang-webapp-testing-production
Name:            golang-webapp-testing-production
Namespace:       golang-app
Status:          ✔ Healthy
Strategy:        BlueGreen
Images:          kienlt992/golang-webapp-testing:v3.0.0 (stable, active)
Replicas:
  Desired:       4
  Current:       4
  Updated:       4
  Ready:         4
  Available:     4

NAME                                                          KIND        STATUS        AGE  INFO
⟳ golang-webapp-testing-production                            Rollout     ✔ Healthy     15h
├──# revision:2
│  └──⧉ golang-webapp-testing-production-54b9b8c49b           ReplicaSet  ✔ Healthy     15h  stable,active
│     ├──□ golang-webapp-testing-production-54b9b8c49b-h72xl  Pod         ✔ Running     15h  ready:1/1
│     ├──□ golang-webapp-testing-production-54b9b8c49b-2jtl5  Pod         ✔ Running     15h  ready:1/1
│     ├──□ golang-webapp-testing-production-54b9b8c49b-cqnxl  Pod         ✔ Running     15h  ready:1/1
│     └──□ golang-webapp-testing-production-54b9b8c49b-mtrkh  Pod         ✔ Running     15h  ready:1/1
└──# revision:1
   └──⧉ golang-webapp-testing-production-6f5b799cf7           ReplicaSet  • ScaledDown  15h

Let's update new image in helm values file. Changed from v3.0.0 to v4.0.0

   # Overrides the image tag whose default is the chart appVersion.
-  tag: "v3.0.0"
+  tag: "v4.0.0"

Let's see what happens after we push manifest. You can see rollout status still version v3.0.0 because in strategy of rollout, i required manually promote, not auto after xxx times

First with check version still is 3.0.0

curl "http://golang-webapp-testing.rke2-cluster.kienlt.local/version"
Version: 3.0.0

Second check status via Argocd UI

alt text

And Rollout status via CLI

alt text

I will promote and see what happens, i like to use CLI instead of UI sometimes xD

# kubectl argo rollouts promote golang-webapp-testing-production -n golang-app
rollout 'golang-webapp-testing-production' promoted

Rollout status

alt text

Argocd UI

alt text

Check version again:

curl "http://golang-webapp-testing.rke2-cluster.kienlt.local/version"
Version: 4.0.0

Complete manifest for blue-green here: golang-webapp-testing-bluegreen

How about rollback, not promote for blue-green deployment?

I will go for real quick! Here is status:

kubectl argo rollouts get rollout golang-webapp-testing-production -n golang-app
Name:            golang-webapp-testing-production
Namespace:       golang-app
Status:          ॥ Paused
Message:         BlueGreenPause
Strategy:        BlueGreen
Images:          kienlt992/golang-webapp-testing:v3.0.0 (preview)
                 kienlt992/golang-webapp-testing:v4.0.0 (stable, active)
Replicas:
  Desired:       4
  Current:       8
  Updated:       4
  Ready:         4
  Available:     4

NAME                                                          KIND        STATUS        AGE    INFO
⟳ golang-webapp-testing-production                            Rollout     ॥ Paused      45h
├──# revision:6
│  └──⧉ golang-webapp-testing-production-54b9b8c49b           ReplicaSet  ✔ Healthy     45h    preview
│     ├──□ golang-webapp-testing-production-54b9b8c49b-g6f86  Pod         ✔ Running     65s    ready:1/1
│     ├──□ golang-webapp-testing-production-54b9b8c49b-rmqk2  Pod         ✔ Running     65s    ready:1/1
│     ├──□ golang-webapp-testing-production-54b9b8c49b-znvvw  Pod         ✔ Running     65s    ready:1/1
│     └──□ golang-webapp-testing-production-54b9b8c49b-zsxf7  Pod         ✔ Running     65s    ready:1/1
├──# revision:5
│  └──⧉ golang-webapp-testing-production-86bb7d659f           ReplicaSet  ✔ Healthy     29h    stable,active
│     ├──□ golang-webapp-testing-production-86bb7d659f-gdkn2  Pod         ✔ Running     7m25s  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-q9p6d  Pod         ✔ Running     7m22s  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-ftxck  Pod         ✔ Running     7m21s  ready:1/1
│     └──□ golang-webapp-testing-production-86bb7d659f-25np2  Pod         ✔ Running     7m19s  ready:1/1
└──# revision:1
   └──⧉ golang-webapp-testing-production-6f5b799cf7           ReplicaSet  • ScaledDown  45h
---
# curl "http://golang-webapp-testing.rke2-cluster.kienlt.local/version"
Version: 4.0.0

Abort the rollout:

kubectl argo rollouts abort -n golang-app golang-webapp-testing-production
rollout 'golang-webapp-testing-production' aborted

Get status again and see preview gone

Name:            golang-webapp-testing-production
Namespace:       golang-app
Status:          ✖ Degraded
Message:         RolloutAborted: Rollout aborted update to revision 6
Strategy:        BlueGreen
Images:          kienlt992/golang-webapp-testing:v4.0.0 (stable, active)
Replicas:
  Desired:       4
  Current:       4
  Updated:       0
  Ready:         4
  Available:     4

NAME                                                          KIND        STATUS        AGE  INFO
⟳ golang-webapp-testing-production                            Rollout     ✖ Degraded    45h
├──# revision:6
│  └──⧉ golang-webapp-testing-production-54b9b8c49b           ReplicaSet  • ScaledDown  45h  preview,delay:passed
├──# revision:5
│  └──⧉ golang-webapp-testing-production-86bb7d659f           ReplicaSet  ✔ Healthy     30h  stable,active
│     ├──□ golang-webapp-testing-production-86bb7d659f-gdkn2  Pod         ✔ Running     13m  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-q9p6d  Pod         ✔ Running     13m  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-ftxck  Pod         ✔ Running     13m  ready:1/1
│     └──□ golang-webapp-testing-production-86bb7d659f-25np2  Pod         ✔ Running     13m  ready:1/1
└──# revision:1
   └──⧉ golang-webapp-testing-production-6f5b799cf7           ReplicaSet  • ScaledDown  45h

Undo rollback to version 5 to make status healthy again:

kubectl argo rollouts undo golang-webapp-testing-production --to-revision=5 -n golang-app
INFO[0000] unknown field "spec.template.metadata.creationTimestamp"
rollout 'golang-webapp-testing-production' undo

The result after undo:

kubectl argo rollouts get rollout golang-webapp-testing-production -n golang-app
Name:            golang-webapp-testing-production
Namespace:       golang-app
Status:          ✔ Healthy
Strategy:        BlueGreen
Images:          kienlt992/golang-webapp-testing:v4.0.0 (stable, active)
Replicas:
  Desired:       4
  Current:       4
  Updated:       4
  Ready:         4
  Available:     4

NAME                                                          KIND        STATUS        AGE  INFO
⟳ golang-webapp-testing-production                            Rollout     ✔ Healthy     45h
├──# revision:7
│  └──⧉ golang-webapp-testing-production-86bb7d659f           ReplicaSet  ✔ Healthy     30h  stable,active
│     ├──□ golang-webapp-testing-production-86bb7d659f-gdkn2  Pod         ✔ Running     15m  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-q9p6d  Pod         ✔ Running     15m  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-ftxck  Pod         ✔ Running     15m  ready:1/1
│     └──□ golang-webapp-testing-production-86bb7d659f-25np2  Pod         ✔ Running     15m  ready:1/1
├──# revision:6
│  └──⧉ golang-webapp-testing-production-54b9b8c49b           ReplicaSet  • ScaledDown  45h  delay:passed
└──# revision:1
   └──⧉ golang-webapp-testing-production-6f5b799cf7           ReplicaSet  • ScaledDown  45h

Next scenario, undo the promoted in blue-green deployment

I will not post full detail since they are just the same with little different.

kubectl argo rollouts promote golang-webapp-testing-production -n golang-app
rollout 'golang-webapp-testing-production' promoted
---
curl "http://golang-webapp-testing.rke2-cluster.kienlt.local/version"
Version: 3.0.0

Get status:

kubectl argo rollouts get rollout golang-webapp-testing-production -n golang-app
Name:            golang-webapp-testing-production
Namespace:       golang-app
Status:          ✔ Healthy
Strategy:        BlueGreen
Images:          kienlt992/golang-webapp-testing:v3.0.0 (stable, active)
                 kienlt992/golang-webapp-testing:v4.0.0
Replicas:
  Desired:       4
  Current:       8
  Updated:       4
  Ready:         4
  Available:     4

NAME                                                          KIND        STATUS        AGE  INFO
⟳ golang-webapp-testing-production                            Rollout     ✔ Healthy     45h
├──# revision:8
│  └──⧉ golang-webapp-testing-production-54b9b8c49b           ReplicaSet  ✔ Healthy     45h  stable,active
│     ├──□ golang-webapp-testing-production-54b9b8c49b-b6ss5  Pod         ✔ Running     80s  ready:1/1
│     ├──□ golang-webapp-testing-production-54b9b8c49b-fkm6b  Pod         ✔ Running     80s  ready:1/1
│     ├──□ golang-webapp-testing-production-54b9b8c49b-xm2jt  Pod         ✔ Running     80s  ready:1/1
│     └──□ golang-webapp-testing-production-54b9b8c49b-bnkvq  Pod         ✔ Running     79s  ready:1/1
├──# revision:7
│  └──⧉ golang-webapp-testing-production-86bb7d659f           ReplicaSet  ✔ Healthy     30h  delay:23s
│     ├──□ golang-webapp-testing-production-86bb7d659f-gdkn2  Pod         ✔ Running     21m  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-q9p6d  Pod         ✔ Running     21m  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-ftxck  Pod         ✔ Running     21m  ready:1/1
│     └──□ golang-webapp-testing-production-86bb7d659f-25np2  Pod         ✔ Running     21m  ready:1/1
└──# revision:1
   └──⧉ golang-webapp-testing-production-6f5b799cf7           ReplicaSet  • ScaledDown  45h

Undo to previous version which is 7:

kubectl argo rollouts undo golang-webapp-testing-production --to-revision=7 -n golang-app
INFO[0000] unknown field "spec.template.metadata.creationTimestamp"
rollout 'golang-webapp-testing-production' undo
# Need to promote as well
kubectl argo rollouts promote golang-webapp-testing-production -n golang-app
rollout 'golang-webapp-testing-production' promoted

After that, get status again, after 2-3 minutes it will remove pods in old revision (which is revision 8 in output)

Name:            golang-webapp-testing-production
Namespace:       golang-app
Status:          ✔ Healthy
Strategy:        BlueGreen
Images:          kienlt992/golang-webapp-testing:v3.0.0
                 kienlt992/golang-webapp-testing:v4.0.0 (stable, active)
Replicas:
  Desired:       4
  Current:       8
  Updated:       4
  Ready:         4
  Available:     4

NAME                                                          KIND        STATUS        AGE    INFO
⟳ golang-webapp-testing-production                            Rollout     ✔ Healthy     45h
├──# revision:9
│  └──⧉ golang-webapp-testing-production-86bb7d659f           ReplicaSet  ✔ Healthy     30h    stable,active
│     ├──□ golang-webapp-testing-production-86bb7d659f-582kj  Pod         ✔ Running     44s    ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-bsb8v  Pod         ✔ Running     44s    ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-r6drp  Pod         ✔ Running     44s    ready:1/1
│     └──□ golang-webapp-testing-production-86bb7d659f-zgv7h  Pod         ✔ Running     44s    ready:1/1
├──# revision:8
│  └──⧉ golang-webapp-testing-production-54b9b8c49b           ReplicaSet  ✔ Healthy     45h    delay:27s
│     ├──□ golang-webapp-testing-production-54b9b8c49b-b6ss5  Pod         ✔ Running     3m34s  ready:1/1
│     ├──□ golang-webapp-testing-production-54b9b8c49b-fkm6b  Pod         ✔ Running     3m34s  ready:1/1
│     ├──□ golang-webapp-testing-production-54b9b8c49b-xm2jt  Pod         ✔ Running     3m34s  ready:1/1
│     └──□ golang-webapp-testing-production-54b9b8c49b-bnkvq  Pod         ✔ Running     3m33s  ready:1/1
└──# revision:1
   └──⧉ golang-webapp-testing-production-6f5b799cf7           ReplicaSet  • ScaledDown  45h
# This is output after 2-3 minutes (maybe lower xD)
Name:            golang-webapp-testing-production
Namespace:       golang-app
Status:          ✔ Healthy
Strategy:        BlueGreen
Images:          kienlt992/golang-webapp-testing:v4.0.0 (stable, active)
Replicas:
  Desired:       4
  Current:       4
  Updated:       4
  Ready:         4
  Available:     4

NAME                                                          KIND        STATUS        AGE    INFO
⟳ golang-webapp-testing-production                            Rollout     ✔ Healthy     45h
├──# revision:9
│  └──⧉ golang-webapp-testing-production-86bb7d659f           ReplicaSet  ✔ Healthy     30h    stable,active
│     ├──□ golang-webapp-testing-production-86bb7d659f-582kj  Pod         ✔ Running     3m16s  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-bsb8v  Pod         ✔ Running     3m16s  ready:1/1
│     ├──□ golang-webapp-testing-production-86bb7d659f-r6drp  Pod         ✔ Running     3m16s  ready:1/1
│     └──□ golang-webapp-testing-production-86bb7d659f-zgv7h  Pod         ✔ Running     3m16s  ready:1/1
├──# revision:8
│  └──⧉ golang-webapp-testing-production-54b9b8c49b           ReplicaSet  • ScaledDown  45h
└──# revision:1
   └──⧉ golang-webapp-testing-production-6f5b799cf7           ReplicaSet  • ScaledDown  45h
# curl "http://golang-webapp-testing.rke2-cluster.kienlt.local/version"
Version: 4.0.0

Conclusion

This is just a basic canary/blue-green deployment with Argo Rollout. But good step for a beginner like me.
Knowing concepts is important more than knowing steps.

Canary/Blue-Green deployment with Argo Rollouts

What is Argo Rollout, is it related to ArgoCD?

What is Canary/Blue-Green deployment?

Installation

Install Argo Rollouts

Install kubectl plugin for Argo Rollouts

Testing canary rollout

Change from deployment to canary rollout

How could we monitor and rollback canary deployment if new version has the issue?

Trying blue-green deployment

Config rollout for blue-green

How about rollback, not promote for blue-green deployment?

Next scenario, undo the promoted in blue-green deployment

Conclusion

Ref:

Published

Category

Tags

Contact
