Containers Are Just Linux Primitives: Namespaces, Cgroups, OverlayFS, and Podman

Containers Are Just Linux process (or process tree).

It is a combination of Linux primitives. I would call these the 3 common Linux primitives used by containers:

Namespaces for isolation
Cgroups for resource control
A layered root filesystem for the container's file view, often implemented with OverlayFS (for a simple reflection)

This article uses Podman for the demos, because Podman is close enough to Docker to feel familiar, but transparent enough that we can still see the Linux primitives.

0. What is OCI?

It has 2 parts: OCI and OCI Runtime

OCI

From what I understand, Open Container Initiative (OCI) is a standard for container. With this standard, an image built with Docker can be run pretty well in Podman or Kubernetes and vice versa.

Content copy from homepage of OCI:

The OCI currently contains three specifications: the Runtime Specification (runtime-spec), the Image Specification (image-spec) and the Distribution Specification (distribution-spec). The Runtime Specification outlines how to run a “filesystem bundle” that is unpacked on disk. At a high-level an OCI implementation would download an OCI Image then unpack that image into an OCI Runtime filesystem bundle. At this point the OCI Runtime Bundle would be run by an OCI Runtime.

OCI Runtime

The OCI Runtime is the implementation that communicates with the kernel to expand the image into a container xD

1. What exactly is Podman?

If you are coming from Docker, you can think of Podman as:

A daemonless container engine
It speaks a Docker-like CLI
It uses an OCI runtime like crun or runc underneath
No need service running in background.

The word daemonless is important!.

Let's me show you a quick example but not really related to container, but it's about daemonless vs daemon xD

Gitlab CI with Docker:

build_docker:
  image: docker:latest
  services:
    - docker:dind          # Required for Docker daemon
  script:
    - docker build -t image-name .

Gitlab CI with Podman:

build_podman:
  image: quay.io/podman/stable:latest
  script:
    - podman build -t image-name .

2. The 3 Common Linux Primitives Behind Containers

Primitive 1: Namespaces

Isolation is what I understand about namespaces in Linux. It gives a process its own view of specific system resources.

Common namespace types you will meet in containers, detail in Redhat blog

PID namespace: the process gets its own process tree
NET namespace: its own network stack, interfaces, routes, ports. For example, a container in a new NET namespace gets its own private network (its own localhost), its own IP address (like 10.88.0.2), and its own virtual network devices (like eth0), completely isolated from the host machine's networking.
MNT namespace: its own mount table
UTS namespace: its own hostname
IPC namespace: its own shared memory / semaphores
USER namespace: user and group ID remapping, especially important for rootless containers

There are also cgroup and time namespaces, but the ones above are the types you will encounter most often in container discussions.

This is why process 12345 on the host can look like PID 1 inside the container. It is the same underlying kernel, but the process is looking through a different namespace view.

Primitive 2: Cgroups

While namespaces isolate what a process can see. Cgroups control how much of the machine a process can consume.

That includes things like:

CPU time
Memory
Number of processes
I/O accounting and limits

Without cgroups, a "container" could still exist as an isolated process, but it would be terrible for multi-tenant systems because one noisy workload could fucked up everything else. That is why resource limit is the fucking important!

Primitive 3: A Layered Root Filesystem

Every container needs a filesystem view:

/bin/sh
/etc
/usr
and so on...

That is the job of the container root filesystem.

In modern Linux container engines, this filesystem is often built from image layers plus a writable container layer. A very common implementation is OverlayFS.

That gives us the classic model:

lower layers (image) + upper layer (container writes) -> merged view

3. Lab Setup

To follow this lab on Ubuntu 24.04, install:

Podman
jq
util-linux for nsenter and related tools
iproute2 for ip addr

apt update
apt install -y podman jq util-linux iproute2

Quick checks:

podman version
podman info --format 'OCI_Runtime={{.Host.OCIRuntime.Name}} Cgroup_Manager={{.Host.CgroupManager}}  Storage_Driver={{.Store.GraphDriverName}} Rootless={{.Host.Security.Rootless}}'

Expected output:

# Version
Client:       Podman Engine
Version:      4.9.3
API Version:  4.9.3
Go Version:   go1.22.2
Built:        Thu Jan  1 08:00:00 1970
OS/Arch:      linux/amd64

# Info
OCI_Runtime=runc
Cgroup_Manager=systemd
Storage_Driver=overlay
Rootless=false

For this article, I will use rootful Podman in the low-level inspection steps because it makes namespace and filesystem introspection simpler. Podman supports rootless mode too, but we will not talk about it in this article xD

4. Step 1: Run One Real Container

Let us create a tiny container with very visible limits, it will has fully explained in the next steps:

podman run -d --name kienlt-lab \
  --hostname kienlt-lab \
  --memory 128m \
  --cpus 0.5 \
  --pids-limit 64 \
  docker.io/library/alpine:3.22 \
  sleep infinity

Check it:

podman ps
# Output
CONTAINER ID  IMAGE                          COMMAND         CREATED         STATUS         PORTS       NAMES
71d926d3c61c  docker.io/library/alpine:3.22  sleep infinity  13 seconds ago  Up 14 seconds              kienlt-lab
podman inspect kienlt-lab --format '{{.State.Status}}'
# Output
running

Get the host PID of the container's main process:

PID=$(podman inspect -f '{{.State.Pid}}' kienlt-lab)
echo "$PID"
# Example output:
# 890812

kienlt-lab is not a mini-VM. It is just a process (or process tree) on the host. Podman simply created it with a different set of namespaces, cgroups, and mounts. Here is the proof

# Inside the container
root@kienlt-lab-utilities:~# podman exec kienlt-lab ps -ef
PID   USER     TIME  COMMAND
    1 root      0:00 sleep infinity
    6 root      0:00 ps -ef
root@kienlt-lab-utilities:~# podman top kienlt-lab
USER        PID         PPID        %CPU        ELAPSED          TTY         TIME        COMMAND
root        1           0           0.000       6m12.258388147s  ?           0s          sleep infinity
# On the host
root@kienlt-lab-utilities:~# ps -ef|grep sleep
root      890812  890800  0 00:50 ?        00:00:00 sleep infinity
# Or even better grep
root@kienlt-lab-utilities:~# ps -fp $(pgrep -f "sleep infinity")
UID          PID    PPID  C STIME TTY          TIME CMD
root      890812  890800  0 00:50 ?        00:00:00 sleep infinity

Let's see detail of process 890812

root@kienlt-lab-utilities:~# pstree -aps 890812
systemd,1 --system --deserialize=81
  └─conmon,890800 --api-version 1 -c 71d926d3c61c8c4a9beecc7d1a81a516d247dcf1c541bb71e9a39fb89721b7d5 -u 71d926d3c61c8c4a9beecc7d1a81a516d247dcf1c541bb71e9a39fb89721b7d5 -r /usr/bin/runc -b...
      └─sleep,890812 infinity

Yes, /usr/bin/runc... the OCI runtime

5. Step 2: Prove the Namespace Story

List the namespaces associated with that process:

lsns -p "$PID"

You will typically see namespace with types like time,user,net....

root@kienlt-lab-utilities:~# lsns -p "$PID"
        NS TYPE   NPROCS    PID USER COMMAND
4026531834 time      226      1 root /usr/lib/systemd/systemd --system --deserialize=81
4026531837 user      225      1 root /usr/lib/systemd/systemd --system --deserialize=81
4026533601 net         1 890812 root sleep infinity
4026533660 mnt         1 890812 root sleep infinity
4026533661 uts         1 890812 root sleep infinity
4026533662 ipc         1 890812 root sleep infinity
4026533663 pid         1 890812 root sleep infinity
4026533664 cgroup      1 890812 root sleep infinity

Enter the container's namespaces from the host:

nsenter -t "$PID" -m -u -i -n -p sh
# Or shorter way to enter namespace with PID...
nsenter -t "$PID" -a sh

Now run these commands inside that namespace view:

hostname
ip addr
ps -ef
mount | head

Expected output:

root@kienlt-lab-utilities:~# nsenter -t "$PID" -m -u -i -n -p sh
/ # ps -ef
PID   USER     TIME  COMMAND
    1 root      0:00 sleep infinity # This is the main process of container
   11 root      0:00 sh # This is the shell I'm using
   12 root      0:00 ps -ef # And this is the command I'm running
/ # hostname
kienlt-lab
/ # ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0@if38: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UP qlen 1000
    link/ether 92:62:ee:30:ce:4d brd ff:ff:ff:ff:ff:ff
    inet 10.88.0.2/16 brd 10.88.255.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::9062:eeff:fe30:ce4d/64 scope link
       valid_lft forever preferred_lft forever
/ # mount|head
overlay on / type overlay (rw,relatime,lowerdir=/var/lib/containers/storage/overlay/l/OZSBEMCB4NRVVXNZV5W5NJS2HM,upperdir=/var/lib/containers/storage/overlay/10fd7e8145ead961bd9f42c8402410974548da353e02474a93e5428d30962c5f/diff,workdir=/var/lib/containers/storage/overlay/10fd7e8145ead961bd9f42c8402410974548da353e02474a93e5428d30962c5f/work,uuid=on,nouserxattr)
proc on /proc type proc (rw,nosuid,nodev,noexec,relatime)
tmpfs on /dev type tmpfs (rw,nosuid,size=65536k,mode=755,inode64)
sysfs on /sys type sysfs (ro,nosuid,nodev,noexec,relatime)
devpts on /dev/pts type devpts (rw,nosuid,noexec,relatime,gid=5,mode=620,ptmxmode=666)
mqueue on /dev/mqueue type mqueue (rw,nosuid,nodev,noexec,relatime)
tmpfs on /run/.containerenv type tmpfs (rw,nosuid,nodev,noexec,relatime,size=813152k,mode=755,inode64)
tmpfs on /etc/hostname type tmpfs (rw,nosuid,nodev,noexec,relatime,size=813152k,mode=755,inode64)
tmpfs on /etc/resolv.conf type tmpfs (rw,nosuid,nodev,noexec,relatime,size=813152k,mode=755,inode64)
tmpfs on /etc/hosts type tmpfs (rw,nosuid,nodev,noexec,relatime,size=813152k,mode=755,inode64)
# xD
root@kienlt-lab-utilities:~# ifconfig podman0
podman0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 10.88.0.1  netmask 255.255.0.0  broadcast 10.88.255.255
        inet6 fe80::50ff:afff:fea1:ed7c  prefixlen 64  scopeid 0x20<link>

What you should notice:

hostname is kienlt-lab, not the host hostname
the process list is tiny compared with the host
the network interfaces and routes are container-specific
the mount table is not the same as the host mount table

That is namespaces which is able to explain in one line: The process is still on the same kernel, but it sees a different world.

6. Step 3: Prove the Cgroup Story

We started the container with:

--memory 128m
--cpus 0.5
--pids-limit 64

Now let us see where those limits live.

First, inspect the cgroup path:

cat /proc/$PID/cgroup

Expected output:

0::/machine.slice/libpod-71d926d3c61c8c4a9beecc7d1a81a516d247dcf1c541bb71e9a39fb89721b7d5.scope

Capture it:

CGROUP_REL=$(awk -F: '$1=="0"{print $3}' /proc/$PID/cgroup)
CGROUP_DIR="/sys/fs/cgroup${CGROUP_REL}"
echo "$CGROUP_DIR"

Now inspect the actual cgroup files:

cat "$CGROUP_DIR/memory.max"
cat "$CGROUP_DIR/cpu.max"
cat "$CGROUP_DIR/pids.max"

You should see values that correspond to the limits we gave Podman.

For example:

# Not related but you will understand where is the fucking CGROUP_REL comes from!
root@kienlt-lab-utilities:~# cat /proc/890812/cgroup
0::/machine.slice/libpod-71d926d3c61c8c4a9beecc7d1a81a516d247dcf1c541bb71e9a39fb89721b7d5.scope
# And then
root@kienlt-lab-utilities:~# cat "$CGROUP_DIR/memory.max"
134217728
# Lets calculate xD
root@kienlt-lab-utilities:~# bytes=134217728
root@kienlt-lab-utilities:~# mib=$((bytes / 1024 / 1024))
root@kienlt-lab-utilities:~# echo "${mib} MB"
128 MB
root@kienlt-lab-utilities:~# cat "$CGROUP_DIR/cpu.max"
50000 100000
root@kienlt-lab-utilities:~# cat "$CGROUP_DIR/pids.max"
64

memory.max should be around 134217728 bytes for 128m
pids.max should be 64
cpu.max should show a quota/period pair that approximates 0.5 CPU

Podman did not invent resource limits. It translated your CLI flags into cgroup settings the Linux kernel already understands.

You can also look at live usage (like command docker stats):

podman stats --no-stream kienlt-lab
ID            NAME        CPU %       MEM USAGE / LIMIT  MEM %       NET IO          BLOCK IO    PIDS        CPU TIME    AVG CPU %
8c68368d643d  kienlt-lab  0.01%       53.25kB / 134.2MB  0.04%       1.626kB / 936B  0B / 0B     1           34.723ms    0.01%

Again, the container is not that fucking special. It is just a process tree attached to a cgroup subtree.

7. Step 4: Prove the Layered Filesystem Story

This section is fucking great for me, I see overlayfs for a lot of fucking time, but I never really understand what the fuck are they!

Now let us inspect the container filesystem driver:

podman inspect kienlt-lab | jq '.[0].GraphDriver'

Expected output:

{
  "Name": "overlay",
  "Data": {
    "LowerDir": "/var/lib/containers/storage/overlay/cce92674e98722970ab3fdce76a2566f54db535beeb24f0b4397f070ab5f6987/diff",
    "MergedDir": "/var/lib/containers/storage/overlay/10fd7e8145ead961bd9f42c8402410974548da353e02474a93e5428d30962c5f/merged",
    "UpperDir": "/var/lib/containers/storage/overlay/10fd7e8145ead961bd9f42c8402410974548da353e02474a93e5428d30962c5f/diff",
    "WorkDir": "/var/lib/containers/storage/overlay/10fd7e8145ead961bd9f42c8402410974548da353e02474a93e5428d30962c5f/work"
  }
}

cce9267.... and 10fd7e8145.... are SHA256 of uncompressed image layers?

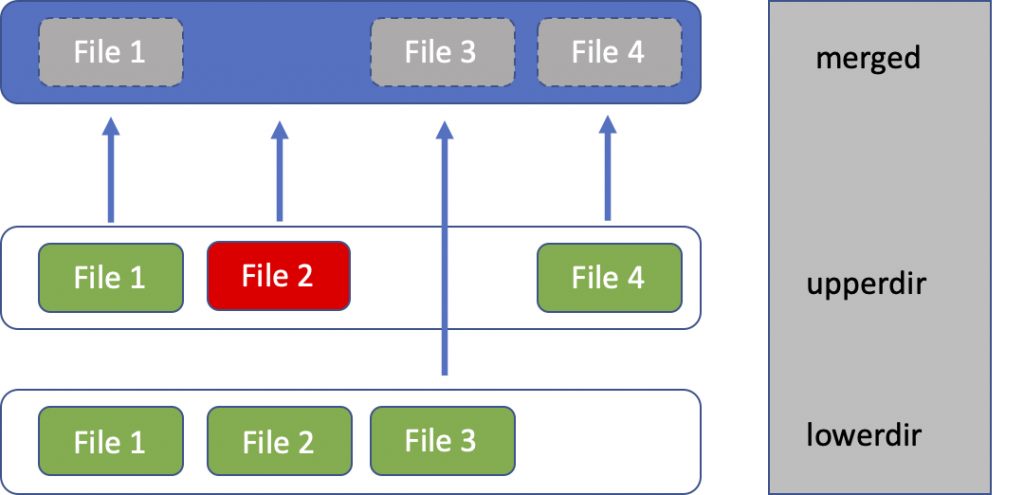

That maps directly to OverlayFS concepts:

LowerDir: read-only image layers
UpperDir: writable layer for this container
WorkDir: OverlayFS bookkeeping
MergedDir: the final mounted root filesystem the process sees

Extract those paths:

LOWER_DIR=$(podman inspect kienlt-lab | jq -r '.[0].GraphDriver.Data.LowerDir')
UPPER_DIR=$(podman inspect kienlt-lab | jq -r '.[0].GraphDriver.Data.UpperDir')
MERGED_DIR=$(podman inspect kienlt-lab | jq -r '.[0].GraphDriver.Data.MergedDir')

echo "LOWER_DIR=$LOWER_DIR"
echo "UPPER_DIR=$UPPER_DIR"
echo "MERGED_DIR=$MERGED_DIR"

Now write a file from inside the container:

podman exec kienlt-lab sh -c 'echo "hello from upperdir" > /root/hello_overlayfs.txt'

Check the merged filesystem view:

ls -l "$MERGED_DIR/root/hello_overlayfs.txt"
cat "$MERGED_DIR/root/hello_overlayfs.txt"

Then inspect the upper layer:

ls -l "$UPPER_DIR/root/hello_overlayfs.txt"
cat "$UPPER_DIR/root/hello_overlayfs.txt"

Output in action:

root@kienlt-lab-utilities:~# ls -l "$MERGED_DIR/root/hello_overlayfs.txt"
-rw-r--r-- 1 root root 20 Mar 25 01:08 /var/lib/containers/storage/overlay/10fd7e8145ead961bd9f42c8402410974548da353e02474a93e5428d30962c5f/merged/root/hello_overlayfs.txt
root@kienlt-lab-utilities:~# cat "$MERGED_DIR/root/hello_overlayfs.txt"
hello from upperdir
root@kienlt-lab-utilities:~# ls -l "$UPPER_DIR/root/hello_overlayfs.txt"
-rw-r--r-- 1 root root 20 Mar 25 01:08 /var/lib/containers/storage/overlay/10fd7e8145ead961bd9f42c8402410974548da353e02474a93e5428d30962c5f/diff/root/hello_overlayfs.txt
root@kienlt-lab-utilities:~# cat "$UPPER_DIR/root/hello_overlayfs.txt"
hello from upperdir
# You can see clearly that the file is not in the lowerdir which is read-only. That is why echo to file in container doesn't show in lowerdir!
root@kienlt-lab-utilities:~# cat "$LOWER_DIR/root/hello_overlayfs.txt"
cat: /var/lib/containers/storage/overlay/cce92674e98722970ab3fdce76a2566f54db535beeb24f0b4397f070ab5f6987/diff/root/hello_overlayfs.txt: No such file or directory
root@kienlt-lab-utilities:~# ls -l "$LOWER_DIR/root/hello_overlayfs.txt"
ls: cannot access '/var/lib/containers/storage/overlay/cce92674e98722970ab3fdce76a2566f54db535beeb24f0b4397f070ab5f6987/diff/root/hello_overlayfs.txt': No such file or directory

That file was not baked into the image. It landed in the writable upper layer of this specific container.

A container image is not one giant mutable disk. It is usually a stack of read-only layers plus one writable layer on top.

A picture for easier imagination from blogs of cisco:

overlayFS

8. Put the 3 Pieces Together

The fucking flow:

Podman CLI
  -> asks an OCI runtime to start a process
  -> that process gets new namespaces
  -> that process is attached to cgroups
  -> that process sees a merged root filesystem
  -> done

Reason containers are usually lighter than VMs:

no second kernel
no hardware virtualization boundary
no emulated machine
just a process with isolation, limits, and a filesystem view

9. Summary

If you want one sentence to remember, make it this: A container is just a Linux process built from namespaces, cgroups, and a container-specific root filesystem.

So yes, "namespaces + cgroups + OverlayFS" is a useful teaching shortcut or telling your friend xD

But the most precise version is:

Namespaces provide isolation
Cgroups provide resource control
A layered root filesystem provides the file view

12. Cleanup

podman rm -f kienlt-lab

References:

Containers Are Just Linux Primitives: Namespaces, Cgroups, OverlayFS, and Podman

0. What is OCI?

OCI

OCI Runtime

1. What exactly is Podman?

2. The 3 Common Linux Primitives Behind Containers

Primitive 1: Namespaces

Primitive 2: Cgroups

Primitive 3: A Layered Root Filesystem

3. Lab Setup

4. Step 1: Run One Real Container

5. Step 2: Prove the Namespace Story

6. Step 3: Prove the Cgroup Story

7. Step 4: Prove the Layered Filesystem Story

8. Put the 3 Pieces Together

9. Summary

12. Cleanup

Published

Category

Tags

Contact
