Introduction

I was tried to learn Azure to prepare for certification AZ-104, but really get bored while watching video in Udemy course. So I decide to learn a real project from basic to a little level higher than basic xD (not really advanced)

Prerequisite

This is not introduction to Azure so I'm assume you have little knowledge related to Azure with following sections:

Azure CLI!
VNet (Virtual Network): Subnet, NSG (Network Security Group)...
Azure Container Registry (ACR)
Kubernetes Service (AKS)
and so on...

Also I'm using trial account with 200$ credit and very very limit resource quota for this lab!

Standard_D2s_v3 is only SKU I can use for this lab.

Resource Creation

Step 1: create resource group

Azure Resource Group(RG) is a logical container that holds related resources (VMs, databases, web apps) for an Azure solution. When you delete a RG, all resource in that RG will gone, remember this xD

az group create -n rg-aks-lab -l southeastasia --tags Project=aks-lab Owner=kien Environment=lab

Step 2: Create VNet + subnet for AKS

az network vnet create \
    -g rg-aks-lab \
    -n vnet-aks \
    --location southeastasia \
    --address-prefix 10.10.0.0/16 \
    --subnet-name snet-aks \
    --subnet-prefix 10.10.1.0/24 \
    --tags Project=aks-lab Owner=kien Environment=lab

subnet snet-aks: 10.10.1.0/24 I'm gonna use for AKS.

Verify subnet creation:

az network vnet subnet list \
    -g rg-aks-lab \
    --vnet-name vnet-aks \
    --query "[].{Name:name, CIDR:addressPrefix}" -o table
# Expected output
Name      CIDR
--------  ------------
snet-aks  10.10.1.0/24

Save Subnet ID in a variable

SUBNET_ID=$(az network vnet subnet show \
    -g rg-aks-lab \
    --vnet-name vnet-aks \
    -n snet-aks \
    --query id -o tsv)

Step 3: Create ACR

Generate unique name:

ACR_NAME="acrakslab$RANDOM"
echo "ACR name will be: $ACR_NAME"
# ACR name will be: acrakslab20546

Create ACR Basic:

az acr create \
    -g rg-aks-lab \
    -n $ACR_NAME \
    --sku Basic \
    --location southeastasia \
    --tags Project=aks-lab Owner=kien Environment=lab

Show ACR Info:

az acr show -n $ACR_NAME \
    --query "{name:name, loginServer:loginServer, sku:sku.name, status:provisioningState}" \
    -o jsonc

Expected output of ACR info:

{
  "loginServer": "acrakslab20546.azurecr.io",
  "name": "acrakslab20546",
  "sku": "Basic",
  "status": "Succeeded"
}

For login later to container registry:

ACR_LOGIN_SERVER=$(az acr show -n $ACR_NAME --query loginServer -o tsv)

Test login container registry:

az acr login -n $ACR_NAME
# Login Succeeded

Step 4: Create AKS

Make sure Microsoft.ContainerService registered for subscription

az provider register --namespace Microsoft.ContainerService
az provider register --namespace Microsoft.ContainerRegistry

Verify by:

az provider show -n Microsoft.ContainerService --query registrationState -o tsv

Get your public IP for whitelist access to K8s api server:

MYIP=$(curl -s https://api.ipify.org)

Create AKS command:

az aks create \
    --resource-group rg-aks-lab \
    --name aks-lab \
    --location southeastasia \
    --tier free \
    --kubernetes-version 1.35.0 \
    --node-count 1 \
    --node-vm-size Standard_D2s_v3 \
    --vnet-subnet-id $SUBNET_ID \
    --network-plugin azure \
    --network-plugin-mode overlay \
    --pod-cidr 10.244.0.0/16 \
    --service-cidr 10.20.0.0/16 \
    --dns-service-ip 10.20.0.10 \
    --enable-managed-identity \
    --attach-acr $ACR_NAME \
    --api-server-authorized-ip-ranges $MYIP/32 \
    --generate-ssh-keys \
    --tags Project=aks-lab Owner=kien Environment=lab

Note regarding --network-plugin azure --network-plugin-mode overlay: This is Azure CNI Overlay, different from regular Azure CNI (each pod occupies 1 IP from the VNet subnet). Overlay mode uses its own --pod-cidr (10.244.0.0/16) so pods don't consume IPs from the snet-aks subnet → saving IPs, allowing for easy scaling of multiple pods without worrying about running out of subnet IPs. Suitable for small labs and production.

If there something fucked up related to version of k8s: az aks get-versions -l southeastasia try to change to other version (latest for example!). It will tooks about 5-10 minutes

Verify by:

az aks show -g rg-aks-lab -n aks-lab \
    --query "{name:name, state:provisioningState, k8s:kubernetesVersion}" \
    -o jsonc
# Expected output
{
  "k8s": "1.35.0",
  "name": "aks-lab",
  "state": "Succeeded"
}

K8S cluster Info:

az aks show -g rg-aks-lab -n aks-lab \
    --query "{name:name, fqdn:fqdn, k8s:kubernetesVersion, nodeRG:nodeResourceGroup, identity:identity.type}" \
    -o jsonc

Output:

{
  "fqdn": "aks-lab-rg-aks-lab-6ffa29-svgtoxzi.hcp.southeastasia.azmk8s.io",
  "identity": "SystemAssigned",
  "k8s": "1.35.0",
  "name": "aks-lab",
  "nodeRG": "MC_rg-aks-lab_aks-lab_southeastasia"
}

Note: AKS auto created 1 RG named MC_ that contains VM, NSG, LB, Public IP. Don't touch this fucking RG, AKS will delete this auto when we delete AKS

Check role assignment in ACR:

ACR_ID=$(az acr show -n $ACR_NAME --query id -o tsv)
az role assignment list --scope $ACR_ID -o table | grep AcrPull
# Output
.....Microsoft.ContainerRegistry/registries/acrakslab20546

If in this scenario, --attach-acr not working, you can run:

az aks update -g rg-aks-lab -n aks-lab --attach-acr $ACR_NAME

Verify:

az aks get-credentials -g rg-aks-lab -n aks-lab
# Merged "aks-lab" as current context in /Users/kienlt/.kube/config
# kctx installed here: https://github.com/BlackMetalz/ChgK8sCtx
kctx
# Using default kubeconfig path: /Users/kienlt/.kube/config
# ✔ aks-lab(current-context)
# You already selected this context!
k get nodes
# NAME                                STATUS   ROLES    AGE     VERSION
# aks-nodepool1-22202873-vmss000000   Ready    <none>   7m23s   v1.35.0

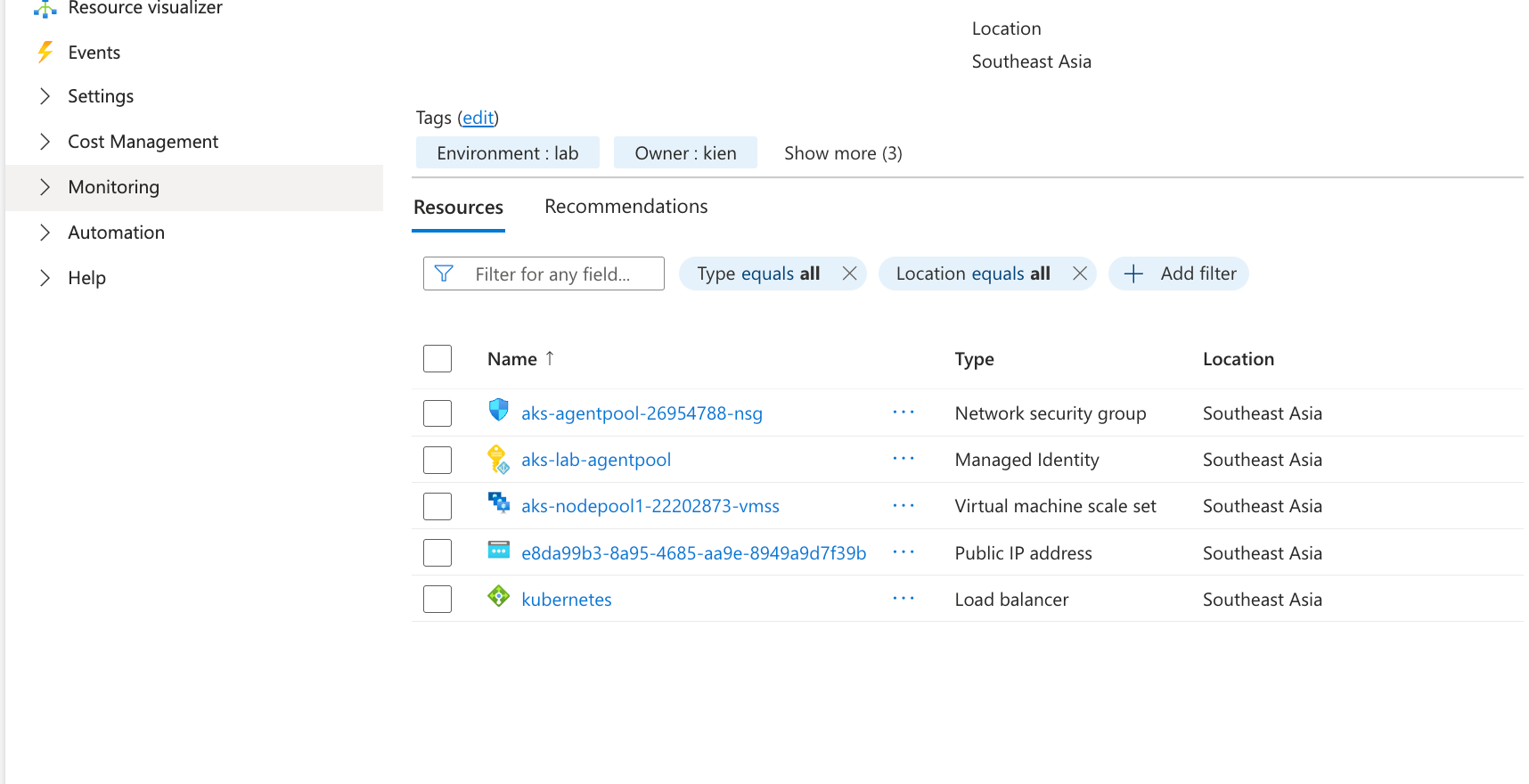

Here is overview after created above resources:

overview

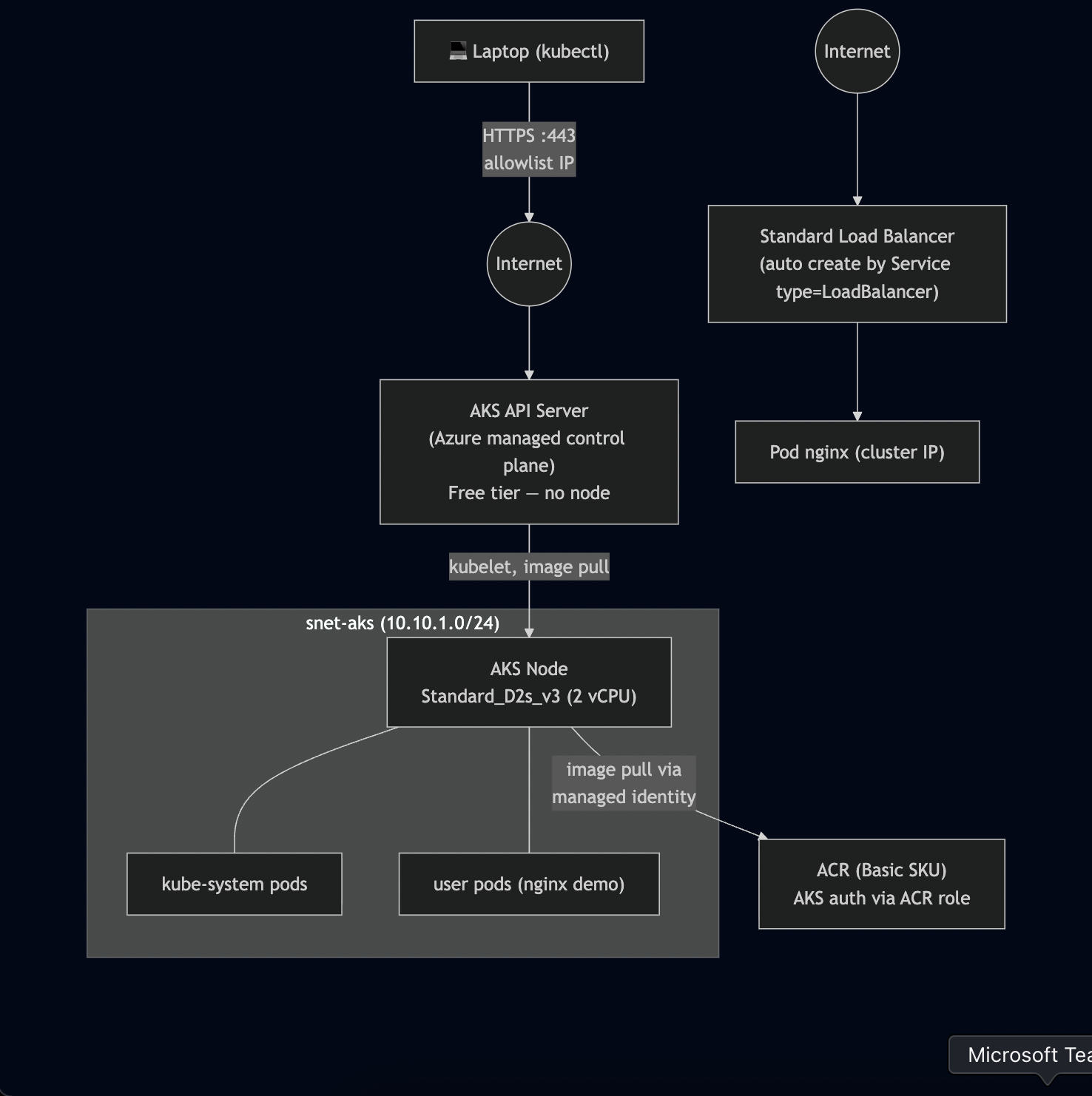

Architecture diagram (network flow):

Deploy, Interact with K8S cluster

Step 5: kubectl + ACR build/push

Here is demo repo of mine after a lot of modify: https://gitlab.com/devops-azure/aks-lab-app but I updated a lot to final version so you only see 1 init commit.

Build local because az acr build will not work on trial subscription. And why I used to build multiple platform? because I'm using Mac to build, not Ubuntu (linux/amd64)

az acr login -n $ACR_NAME
# Login Succeeded
docker buildx build \
    --platform linux/amd64,linux/arm64 \
    --tag $ACR_LOGIN_SERVER/hello-aks:v1 \
    --tag $ACR_LOGIN_SERVER/hello-aks:latest \
    --push \
    .

Verify by: az acr repository show-tags -n $ACR_NAME --repository hello-aks -o table

Result
--------
latest
v1

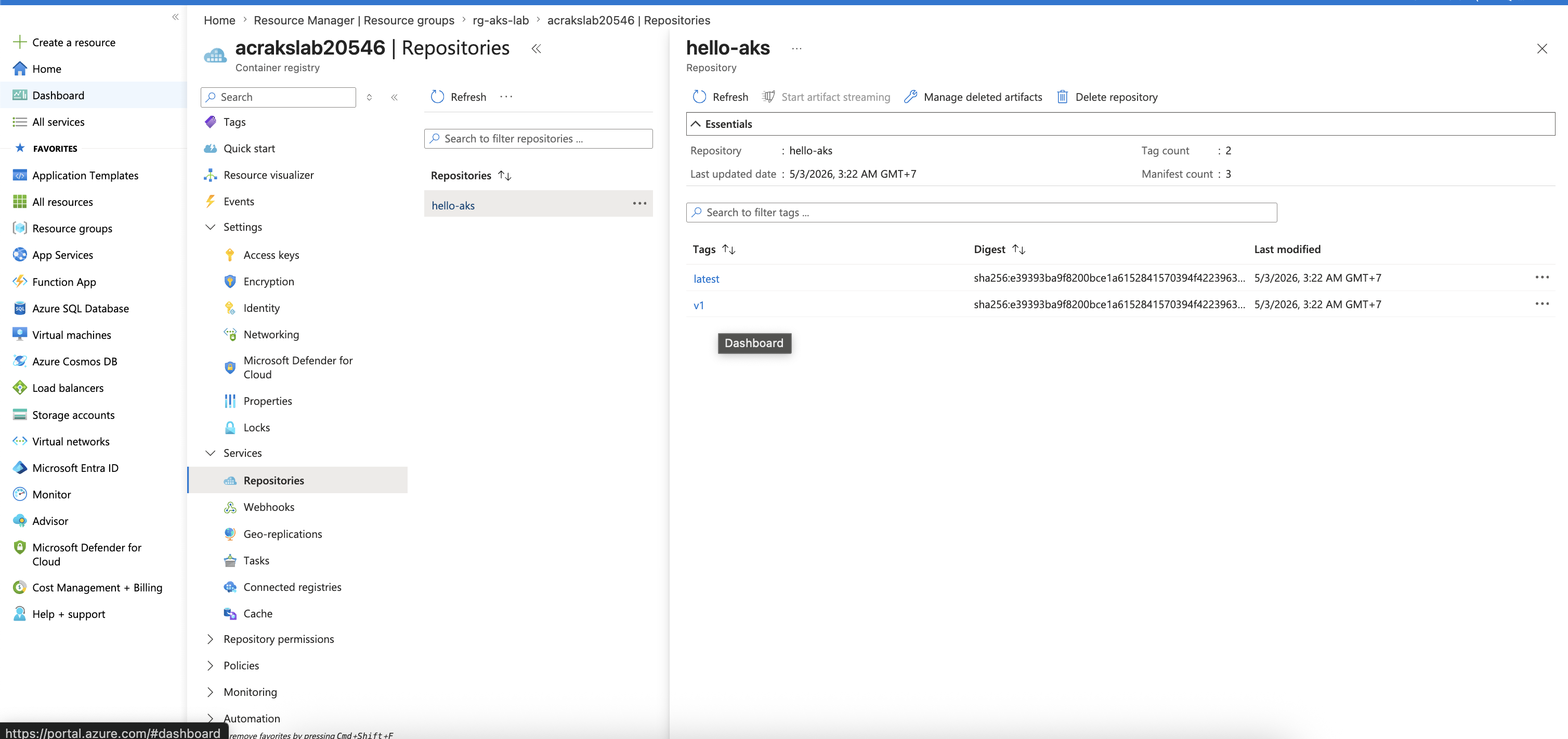

Verify via Portal:

acr portal

Step 6: Deploy APP into AKS

Go to folder aks-lab-app and deploy manifests:

cd manifests
k apply -f 01.deploy.yaml

Output:

k get pod -owide
NAME                        READY   STATUS    RESTARTS   AGE   IP             NODE                                NOMINATED NODE   READINESS GATES
hello-aks-58d5fbc6b-8krf4   1/1     Running   0          24s   10.244.0.155   aks-nodepool1-22202873-vmss000000   <none>           <none>
hello-aks-58d5fbc6b-gqxrz   1/1     Running   0          26s   10.244.0.167   aks-nodepool1-22202873-vmss000000   <none>           <none>
hello-aks-58d5fbc6b-j2qdl   1/1     Running   0          22s   10.244.0.132   aks-nodepool1-22202873-vmss000000   <none>           <none>

Step 7 — Expose app via LoadBalancer Service (We can skip this section)

svc.yaml manifest:

apiVersion: v1
kind: Service
metadata:
  name: hello-aks
spec:
  type: LoadBalancer
  selector:
    app: hello-aks
  ports:
    - port: 80
      targetPort: 80
      protocol: TCP

Verify Azure resource created:

Public IP for LoadBalancer in nodeRG:

az network public-ip list \
    -g MC_rg-aks-lab_aks-lab_southeastasia \
    --query "[].{name:name, ip:ipAddress, sku:sku.name}" -o table
# output (2 rows)
Name                                         Ip             Sku
-------------------------------------------  -------------  --------

Standard LB:

az network lb list \
    -g MC_rg-aks-lab_aks-lab_southeastasia \
    --query "[].{name:name, sku:sku.name, frontends:frontendIpConfigurations[].name}" -o table

Name        Sku
----------  --------
kubernetes  Standard

Get external IP to test:

EXTERNAL_IP=$(kubectl get svc hello-aks -o jsonpath='{.status.loadBalancer.ingress[0].ip}')

Testing time:

for i in {1..6}; do
    echo "--- Request $i ---"
    curl -s http://$EXTERNAL_IP | grep "pod\">" | sed 's/<[^>]*>//g'
  done
--- Request 1 ---
hello-aks-7fd4ff6c4f-lgt2w
--- Request 2 ---
hello-aks-7fd4ff6c4f-lgt2w
--- Request 3 ---
hello-aks-7fd4ff6c4f-bljl8
--- Request 4 ---
hello-aks-7fd4ff6c4f-bljl8
--- Request 5 ---
hello-aks-7fd4ff6c4f-bljl8
--- Request 6 ---
hello-aks-7fd4ff6c4f-th8tp

Step 8 - Scale AKS worker node

az aks nodepool scale \
    --resource-group rg-aks-lab \
    --cluster-name aks-lab \
    --name nodepool1 \
    --node-count 2

Verify:

kubectl get nodes
NAME                                STATUS   ROLES    AGE    VERSION
aks-nodepool1-22202873-vmss000000   Ready    <none>   121m   v1.35.0
aks-nodepool1-22202873-vmss000001   Ready    <none>   14m    v1.35.0

Test again with 10 pods:

for i in {1..10}; do
    echo "--- Request $i ---"
    curl -s http://$EXTERNAL_IP | grep "pod\">" | sed 's/<[^>]*>//g'
  done
--- Request 1 ---
hello-aks-7fd4ff6c4f-75ppz
--- Request 2 ---
hello-aks-7fd4ff6c4f-9956v
--- Request 3 ---
hello-aks-7fd4ff6c4f-v5fmt
--- Request 4 ---
hello-aks-7fd4ff6c4f-9956v
--- Request 5 ---
hello-aks-7fd4ff6c4f-v5fmt
--- Request 6 ---
hello-aks-7fd4ff6c4f-bwcz5
--- Request 7 ---
hello-aks-7fd4ff6c4f-75ppz
--- Request 8 ---
hello-aks-7fd4ff6c4f-v5fmt
--- Request 9 ---
hello-aks-7fd4ff6c4f-7js52
--- Request 10 ---
hello-aks-7fd4ff6c4f-th8tp

Step 9 - Static IP for Service (Skip this section also, same reason for step 7)

NODE_RG=$(az aks show -g rg-aks-lab -n aks-lab --query nodeResourceGroup -o tsv)
echo "Node RG: $NODE_RG"
az network public-ip create \
    -g $NODE_RG \
    -n pip-hello-aks \
    --location southeastasia \
    --sku Standard \
    --allocation-method Static

STATIC_IP=$(az network public-ip show -g $NODE_RG -n pip-hello-aks --query ipAddress -o tsv)
echo "Static IP: $STATIC_IP"

Manifest:

apiVersion: v1
kind: Service
metadata:
  name: hello-aks
  annotations:
    service.beta.kubernetes.io/azure-load-balancer-resource-group: MC_rg-aks-lab_aks-lab_southeastasia
    service.beta.kubernetes.io/azure-pip-name: pip-hello-aks
    # Bonus: provide DNS Azure
    service.beta.kubernetes.io/azure-dns-label-name: hello-aks-kien
spec:
  type: LoadBalancer
  selector:
    app: hello-aks
  ports:
    - port: 80
      targetPort: 80

Apply: k apply -f svc-static.yaml

This is example, for better example we could use Ingress Nginx

AKS App Routing - Nginx Ingress

Step 10 - AKS App Routing (Practical for ingress)

Enable it by:

az aks approuting enable -g rg-aks-lab -n aks-lab

Verify:

k get pod -n app-routing-system
NAME                     READY   STATUS    RESTARTS   AGE
nginx-78ff99b4ff-h6f7t   1/1     Running   0          3m57s
nginx-78ff99b4ff-wjq2t   1/1     Running   0          4m11s

Note: The delete pip-hello-aks section below only applies if you perform Step 9 (static IP for the service). If you skip Step 9, you will always skip this cleanup.

Need to delete previous public-ip created for LB:

# List first
az network public-ip list -g $NODE_RG -o table
Name                                         ResourceGroup                        Location       Zones    Address        IdleTimeoutInMinutes    ProvisioningState
-------------------------------------------  -----------------------------------  -------------  -------  -------------  ----------------------  -------------------
e8da99b3-8a95-4685-aa9e-8949a9d7f39b         MC_rg-aks-lab_aks-lab_southeastasia  southeastasia  213      20.10.10.1     4                       Succeeded
kubernetes-afdc67b3ca4d3445ba9d6beeaeed1884  mc_rg-aks-lab_aks-lab_southeastasia  southeastasia  213      20.10.10.2     4                       Succeeded
pip-hello-aks                                MC_rg-aks-lab_aks-lab_southeastasia  southeastasia           20.10.10.3     4                       Succeeded

We should delete pip-hello-aks which we created via svc: k delete svc hello-aks

Check it attached to anything:

az network public-ip show -g $NODE_RG -n pip-hello-aks \
    --query "{name:name, ip:ipAddress, attachedTo:ipConfiguration}" \
    -o jsonc
{
  "attachedTo": null,
  "ip": "20.10.10.3",
  "name": "pip-hello-aks"
}

Ok, null. Time to delete: az network public-ip delete -g $NODE_RG -n pip-hello-aks

Make static public IP in nodeRG.

NODE_RG=$(az aks show -g rg-aks-lab -n aks-lab --query nodeResourceGroup -o tsv)
az network public-ip create \
    -g $NODE_RG \
    -n pip-ingress \
    --location southeastasia \
    --sku Standard \
    --allocation-method Static \
    --dns-name hello-aks-kienlt

INGRESS_IP=$(az network public-ip show -g $NODE_RG -n pip-ingress --query ipAddress -o tsv)
INGRESS_FQDN=$(az network public-ip show -g $NODE_RG -n pip-ingress --query dnsSettings.fqdn -o tsv)

echo "Static IP:   $INGRESS_IP"
echo "Azure FQDN:  $INGRESS_FQDN"

Configure App Routing to use this Static IP by creating nginx-ingress.yaml:

apiVersion: approuting.kubernetes.azure.com/v1alpha1
kind: NginxIngressController
metadata:
  name: default
spec:
  ingressClassName: webapprouting.kubernetes.azure.com
  controllerNamePrefix: nginx
  loadBalancerAnnotations:
    service.beta.kubernetes.io/azure-load-balancer-resource-group: MC_rg-aks-lab_aks-lab_southeastasia
    service.beta.kubernetes.io/azure-pip-name: pip-ingress

ingress.yaml:

  apiVersion: networking.k8s.io/v1
  kind: Ingress
  metadata:
    name: hello-aks
    annotations:
      nginx.ingress.kubernetes.io/rewrite-target: /
  spec:
    ingressClassName: webapprouting.kubernetes.azure.com
    rules:
      - host: kienlt.com    # Your domain here.
        http:
          paths:
            - path: /
              pathType: Prefix
              backend:
                service:
                  name: hello-aks
                  port:
                    number: 80

Apply the configuration:

kubectl apply -f nginx-ingress.yaml

Ok. Make a CNAME via Azure FQDN then test

Step 11 - Whitelist IP access to API Server

There is no fucking NSG for managed K8S, check which address currently allowed

az aks show -g rg-aks-lab -n aks-lab \
    --query "apiServerAccessProfile" -o jsonc

Create a fake rule then test you can not connect to API Server via kubectl

az aks update -g rg-aks-lab -n aks-lab \
    --api-server-authorized-ip-ranges "1.2.3.4/32"

Restore rule:

MYIP=$(curl -s https://api.ipify.org)
az aks update -g rg-aks-lab -n aks-lab \
    --api-server-authorized-ip-ranges $MYIP/32

Conclusion

This is not complete article like have no mistake, this is just what I want to save steps I did while learning Azure.

I personal think this step is great for me, who have no fucking idea about Azure before (Never touch or create account in Azure xD)

My experience on learning Azure Devops - Part 1: ACR + AKS

Introduction

Prerequisite

Resource Creation

Step 1: create resource group

Step 2: Create VNet + subnet for AKS

Step 3: Create ACR

Step 4: Create AKS

Deploy, Interact with K8S cluster

Step 5: kubectl + ACR build/push

Step 6: Deploy APP into AKS

Step 7 — Expose app via LoadBalancer Service (We can skip this section)

Step 8 - Scale AKS worker node

Step 9 - Static IP for Service (Skip this section also, same reason for step 7)

AKS App Routing - Nginx Ingress

Step 10 - AKS App Routing (Practical for ingress)

Step 11 - Whitelist IP access to API Server

Conclusion

Published

Category

Tags

Contact
