TLDR: Slurm is an open source, fault-tolerant, and highly scalable cluster management and job scheduling system for large and small Linux clusters.

Phase 1: Understanding the Core Concepts of Slurm (Most Important)

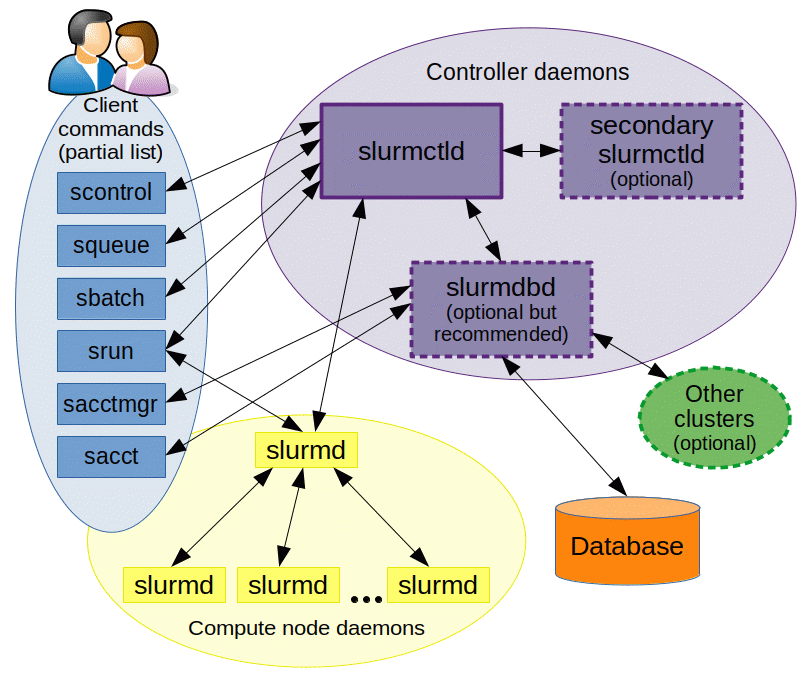

First, understand the basic topology:

User
  |
Login Node
  |
slurmctld (controller)
  |
+------------+------------+
|            |            |
slurmd      slurmd      slurmd
Node01      Node02      Node03

Key Components:

Mapping Concepts: Slurm vs Kubernetes

K8s                    Slurm

kube-apiserver   ~=    slurmctld
kubelet          ~=    slurmd
Node             ~=    Compute Node
Pod              ~=    Job/Task
Scheduler        ~=    Slurm Scheduler

Key fundamental differences:

• Kubernetes is optimized for long-running services (Deployments, APIs, web apps).
• Slurm is optimized for batch workloads (AI training, simulations, HPC jobs).

For example:

• K8s: "I want to run an Nginx service indefinitely."
• Slurm: "I want to run a 48-hour model training job and exit when done."

Why not just use K8s Jobs for Distributed AI Training?

While Kubernetes has Job objects, Slurm remains the gold standard for large-scale GPU training because of three core HPC capabilities built into its DNA:

Atomic Multi-Node Allocation (Native Co-Allocation):

• Multi-node distributed training (PyTorch DDP / FSDP / Megatron-LM) requires all $N$ GPUs across multiple nodes to start simultaneously to establish rendezvous and synchronize gradients.
• In vanilla Kubernetes, the default scheduler binds pods incrementally. If 60 GPUs are free and 4 are busy, it might schedule 60 pods and leave them idling—wasting expensive GPU hours unless using external batch co-scheduling add-ons like Kueue or Volcano.
• Slurm natively guarantees atomic allocation: a job is only launched when 100% of the requested nodes and resources are simultaneously available, remaining in PENDING state without holding or fragmenting resources. (Note: In Slurm documentation, "Gang Scheduling" specifically refers to time-slicing oversubscribed resources between jobs, rather than co-allocation).

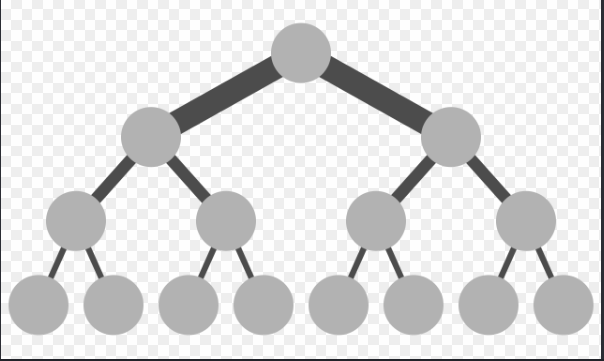

Network Topology Awareness (InfiniBand / RoCE Tree):

• The biggest bottleneck in AI training is inter-GPU communication (NCCL AllReduce latency).
• Slurm understands network switch hierarchy via Topology Plugins (Spine-Leaf / Fat-Tree). It prioritizes packing jobs within the same Top-of-Rack (ToR) switch to maximize throughput and minimize latency.

Bare-Metal Performance & Direct POSIX Storage:

• Slurm executes processes directly on the host OS with Linux cgroups locking specific CPU cores, NUMA nodes, and GPU PCI buses.
• Zero container overlay network (CNI) overhead and direct POSIX access to high-performance parallel file systems (Lustre, BeeGFS, GPFS / IBM Storage Scale).

Essential CLI Commands:

sbatch: Submits a batch job script. Slurm accepts the job and initially places it in a PENDING state:

JobID=123
State=PENDING

It then waits for the scheduler to allocate resources and execute it. In Kubernetes terms, it feels like:

kubectl apply -f job.yaml

srun: Executes jobs immediately in interactive mode or runs parallel tasks within an allocation. For example:

srun hostname

Slurm allocates a node and executes the command on node01. A quick way to distinguish them:

sbatch = Submit a job script (asynchronous)

srun   = Run a command / step (synchronous / interactive)

squeue: Views the cluster's job queue. Running squeue:

JOBID PARTITION USER ST
123   gpu       kien PD
124   gpu       kien R

State meanings:

PD = Pending
R  = Running
CG = Completing

Conceptually similar to: kubectl get pods

sinfo: Views the status of nodes and partitions. Running sinfo:

PARTITION AVAIL NODES STATE
cpu       up      4   idle
gpu       up      2   alloc

Think of it like:

kubectl get nodes

scancel: Cancels/kills a job. For example: scancel 123. Similar to: kubectl delete pod xxx.

sacct: Accounting tool. Displays historical job accounting records.

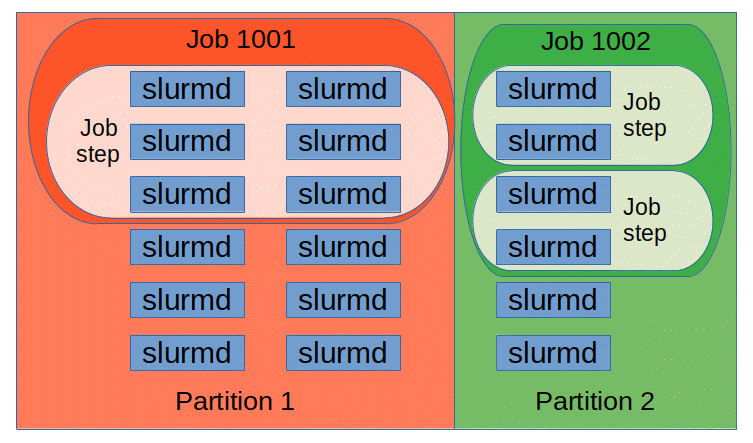

Core Resource & Scheduling Concepts

• QoS (Quality of Service): Priority, limits, and preemption rules.
• Partition: Logical grouping of nodes (like queues or namespaces with specific node pools).
• GRES (Generic Resources): Generic resource management (e.g. GPUs).
• cgroup: Resource isolation (CPU cores, memory, devices) enforced on compute nodes.

Phase 2: Localhost Lab with Docker

Building a Mini Cluster

docker network create slurm-net

controller
compute01
compute02

Each container acts as a specific role:

slurm-controller
slurm-node1
slurm-node2

Architecture:

+------------------+
|    slurmctld     |
+------------------+
         |
    +----+----+
    |         |
+--------+ +--------+
| slurmd | | slurmd |
| node01 | | node02 |
+--------+ +--------+

Hands-on Testing

This is the most valuable part to practice:

• sbatch job.sh
• srun hostname
• sinfo
• squeue

Phase 3: Simulating a Production Cluster

Once the basic Docker cluster is up and running:

Adding a Login Node:

login
controller
compute01
compute02

The login node doesn't run computation workloads:

User workflow:

ssh login
sbatch train.sh

This mirrors real-world production environments much closer.

Adding slurmdbd (Accounting)

Learn accounting — this is one of the most frequently used subsystems by HPC admins.

MariaDB
  |
slurmdbd
  |
slurmctld

Then explore these commands:

• sacct
• sreport

Phase 4: GPU Scheduling

Note: GPU scheduling (GRES) can be skipped initially if you don't have local GPUs.

• Slurm manages GPU via GRES (Generic Resources) combined with Linux cgroups to map device files (/dev/nvidia*).
• Tip for learners without a local GPU like me, we still can define dummy GRES in slurm.conf and gres.conf to completely understand the resource request flow of --gres=gpu:1 in Slurm without any physical GPU!

# slurm.conf
GresTypes=gpu
NodeName=node[1-2] Gres=gpu:fake:2

# gres.conf
NodeName=node[1-2] Name=gpu Type=fake File=/dev/null

Phase 5: High Availability (HA) & Production Setup

When scaling up to a larger lab:

Controller HA

Learn Slurm High Availability (HA):

Primary slurmctld
Backup slurmctld

Configuration concepts in slurm.conf:

SlurmctldHost=ctrl1
SlurmctldHost=ctrl2

Shared Storage Strategy

While not a hardcoded Slurm specification, the standard industry convention in HPC/AI clusters is to tier shared storage into 3 distinct mount paths based on I/O performance and lifecycle:

• /home (User Environment):
• Holds dotfiles, Python virtualenvs, and job submission scripts.
• Backed by standard NFS / CephFS with daily backups and strict quotas (e.g., 20GB/user).
• /scratch (High-Speed Ephemeral Workspace):
• Dedicated for active job I/O, temporary checkpoints (.pt), and staging datasets.
• Backed by high-throughput Parallel File Systems (Lustre, BeeGFS). No backups and subject to auto-purging policies (e.g., automatically deleted if unaccessed for 30 days).
• /project or /data (Team Shared Assets):
• Shared storage for base datasets (e.g., ImageNet, HuggingFace caches) and long-term project artifacts with team-based POSIX permissions (setgid).

Phase 6: Slurm + Containers

This is where the real fun begins:

Why don't we just use docker run in Slurm?

• The essence: Docker requires a daemon running with root access. In multi-tenant HPC clusters, giving docker access to users is practically equivalent to giving them root access xD.

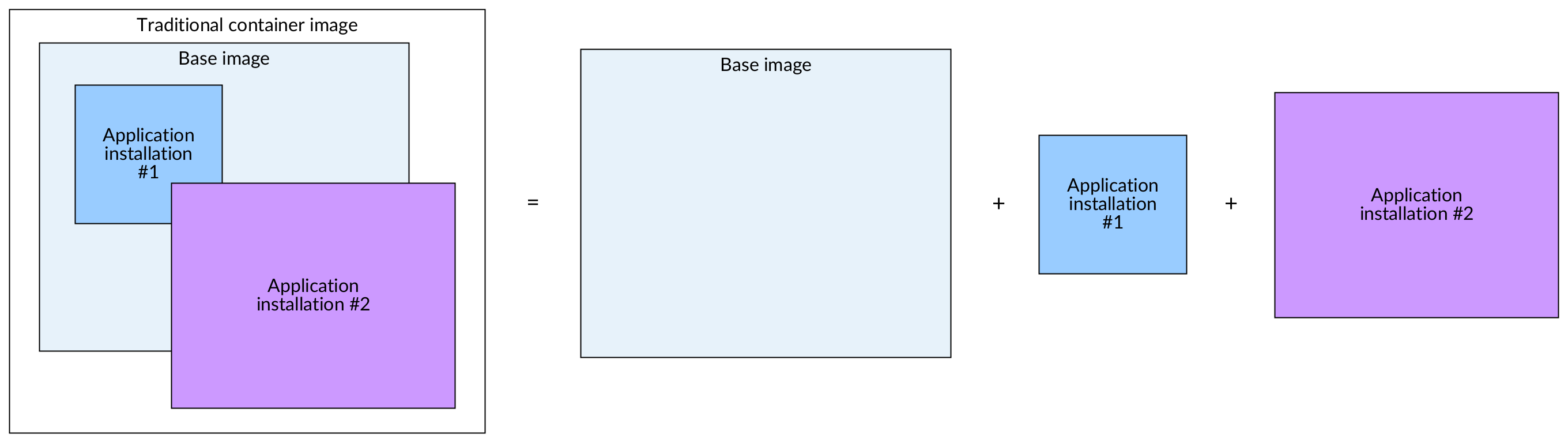

• Solution for HPC: Apptainer (Singularity) or NVIDIA Enroot / Pyxis that turn container images into flat files (.sif), run completely under the user's UID/GID within a user namespace, and mount /scratch and host NVIDIA drivers directly without a root daemon.

Apptainer (Singularity)

Extremely popular in HPC environments. Apptainer is well worth learning before Docker-on-Slurm, as almost every HPC cluster uses it for rootless container execution.

srun apptainer exec pytorch.sif python train.py

Phase 7: Slurm + Kubernetes

This is the most sensible model in modern AI/ML infrastructure today. For example:

K8S Layer (Cloud-native control plane)

Serving developer experience: - JupyterHub - MLflow - Ray / Ray Dashboard - Model Registry - Serving APIs / Inference Servers (vLLM / Triton Inference Server)

Slurm Layer (Bare-metal Execution Engine)

Serving heavy distributed training & fine-tuning where thousands of GPUs connect to each other via InfiniBand or RoCEv2.
