Introduction
This article is part 2, part 1 you can find it here: My experience on learning Azure Devops - Part 1: ACR + AKS
In this article, I will show you some little knowledge about Azure DevOps that I learned and try to implement in my lab.
Overview

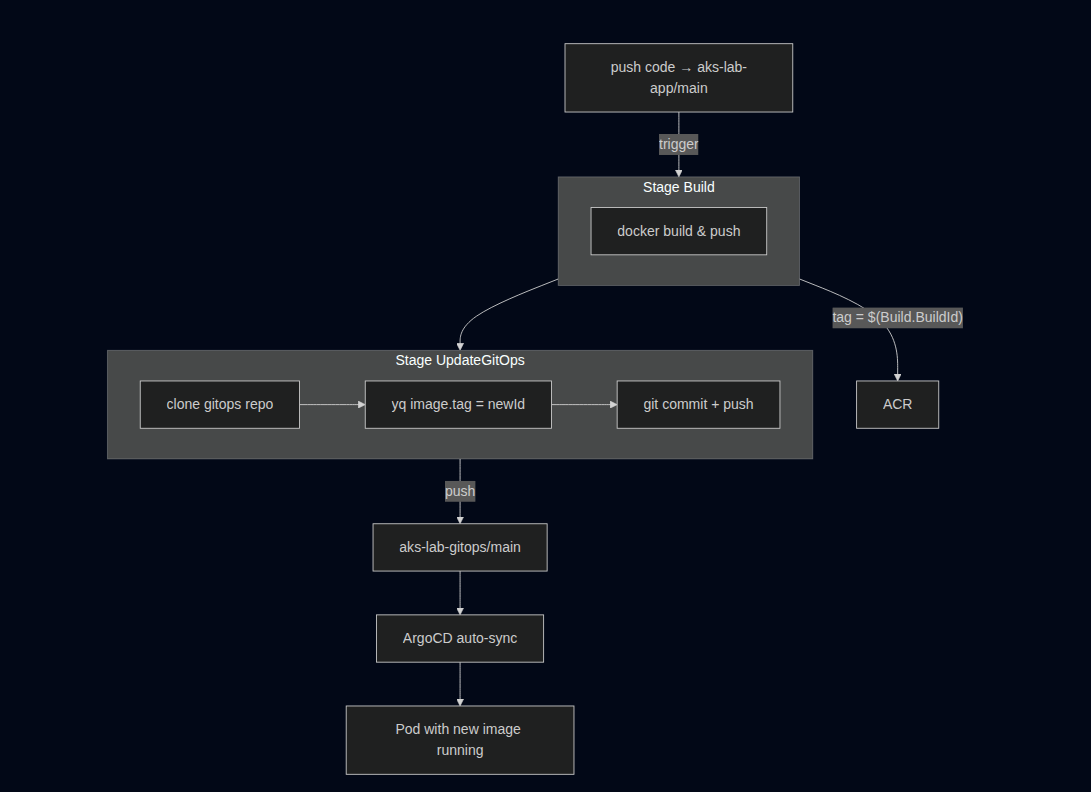

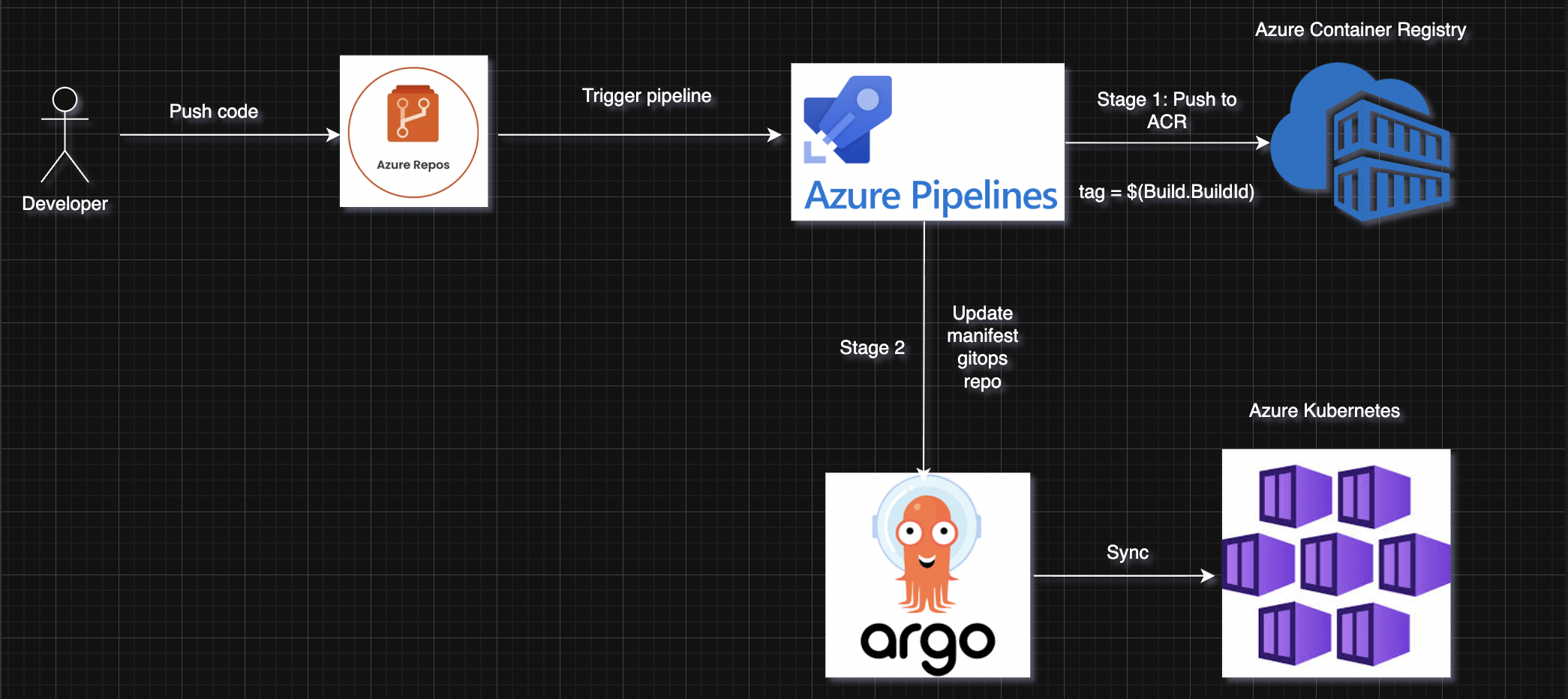

So I'm gonna use Azure DevOps for this lab. My idea is: Push code → trigger pipeline in Azure DevOps → pipeline will build image -> push ACR -> update gitops repo -> ArgoCD auto sync.
So in this setup ArgoCD is only external component, the rest is managed by Azure!
Step 1: Install ArgoCD
For this fucking lab, no HA — just standalone install.
# Create namespace
kubectl create namespace argocd
# Install ArgoCD
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml
Get admin password:
kubectl -n argocd get secret argocd-initial-admin-secret \
-o jsonpath="{.data.password}" | base64 -d ; echo
Get public IP:
NODE_RG=$(az aks show -g rg-aks-lab -n aks-lab --query nodeResourceGroup -o tsv)
INGRESS_IP=$(az network public-ip show -g $NODE_RG -n pip-ingress --query ipAddress -o tsv)
echo $INGRESS_IP
Apply manifest for argocd ingress: k apply -f 02-devops-azure/argocd-ingress.yaml
Step 2: Azure Repos + Helm chart + ArgoCD Application

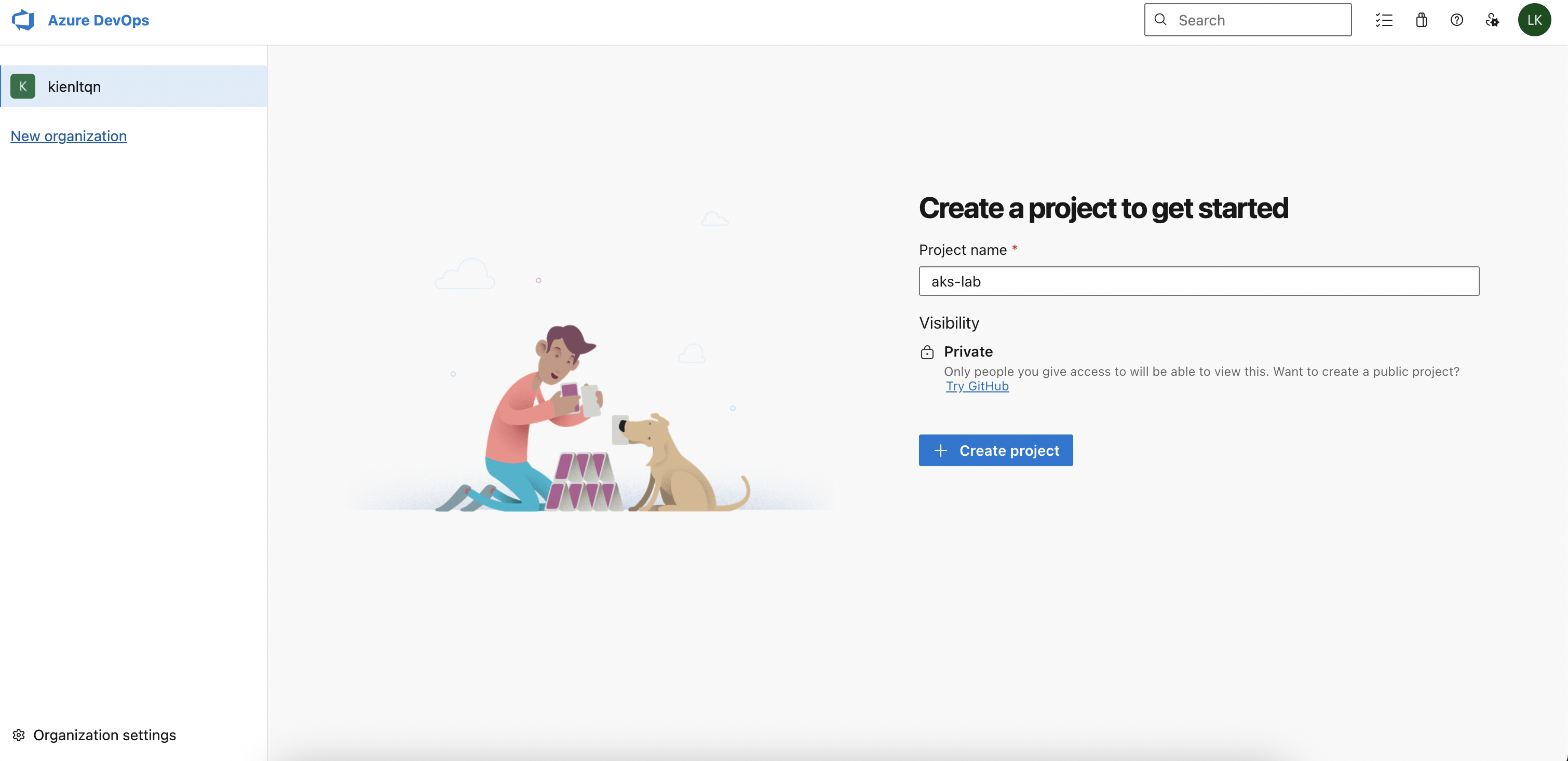

Create Azure DevOps org + project

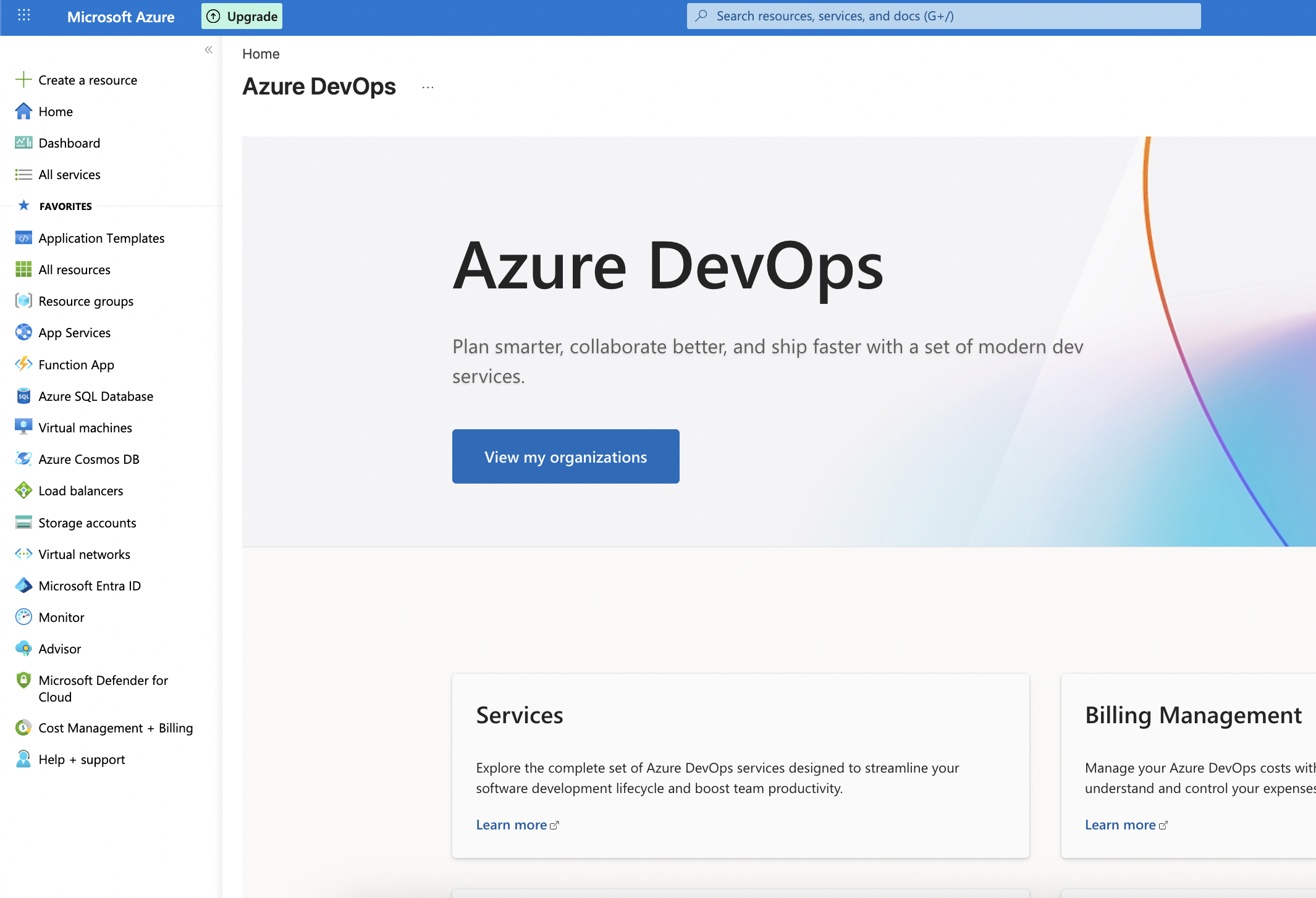

Create new Org with your current subscription

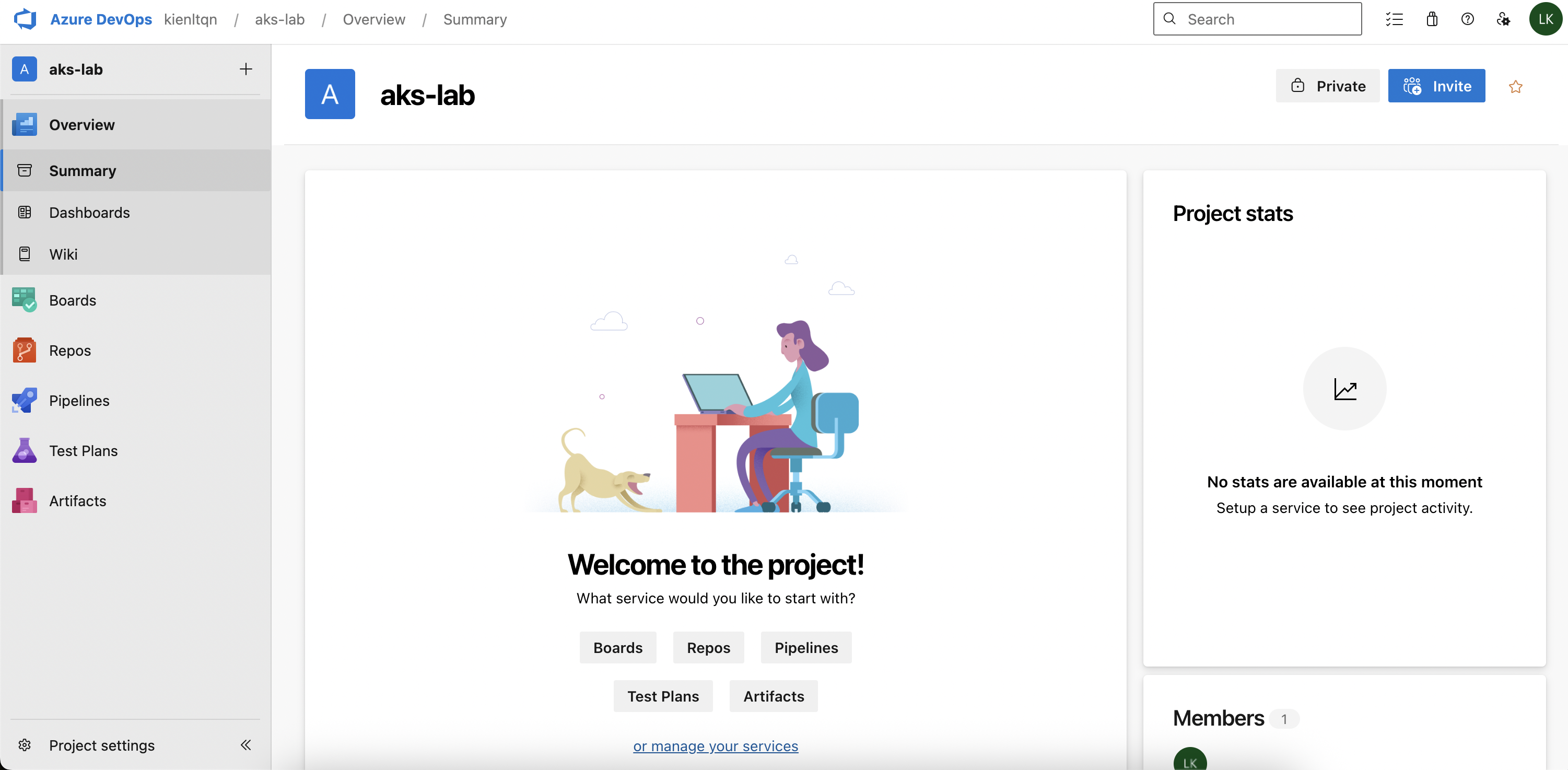

New project aks-lab

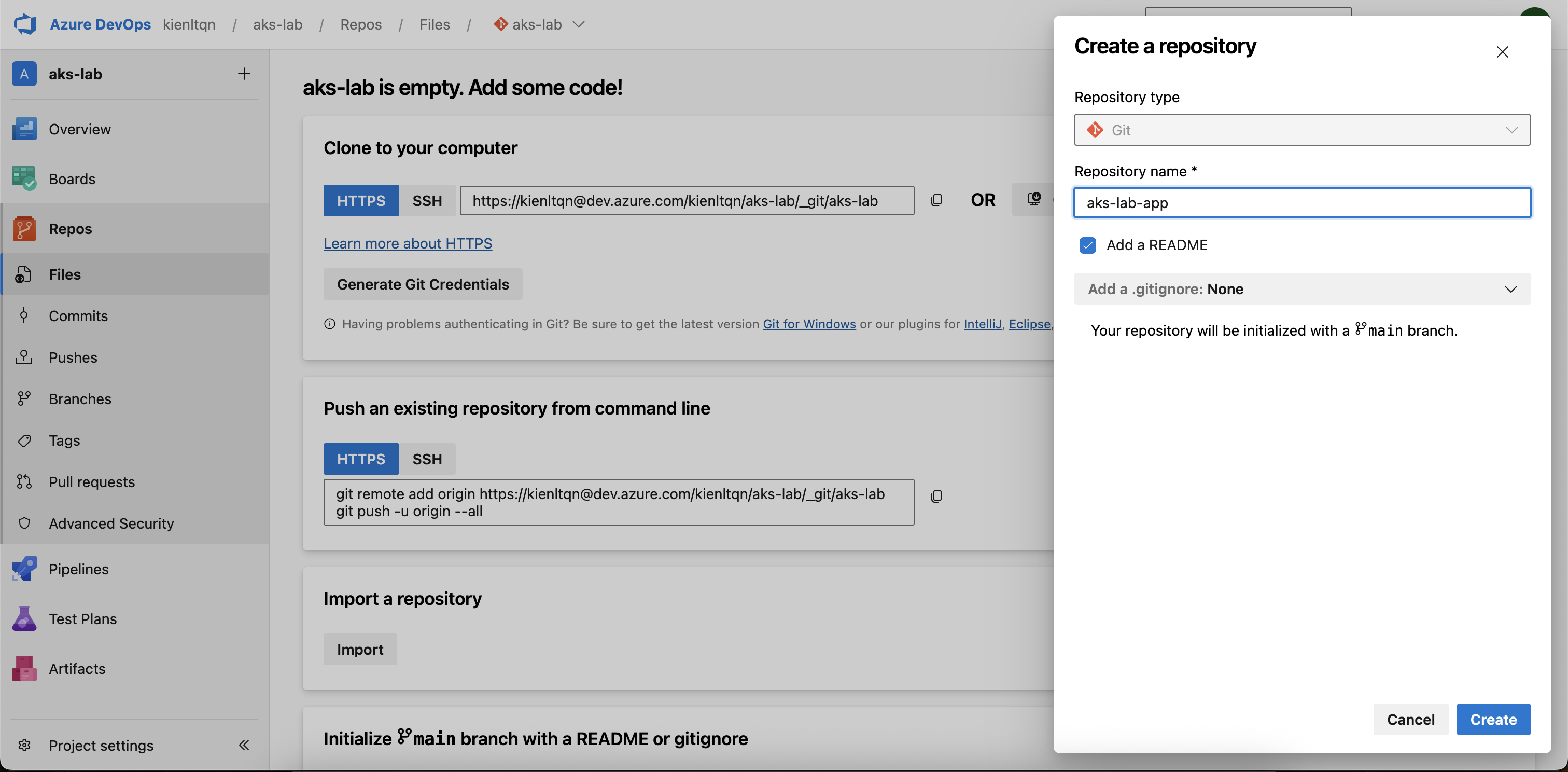

Create new Repos for app + gitops:

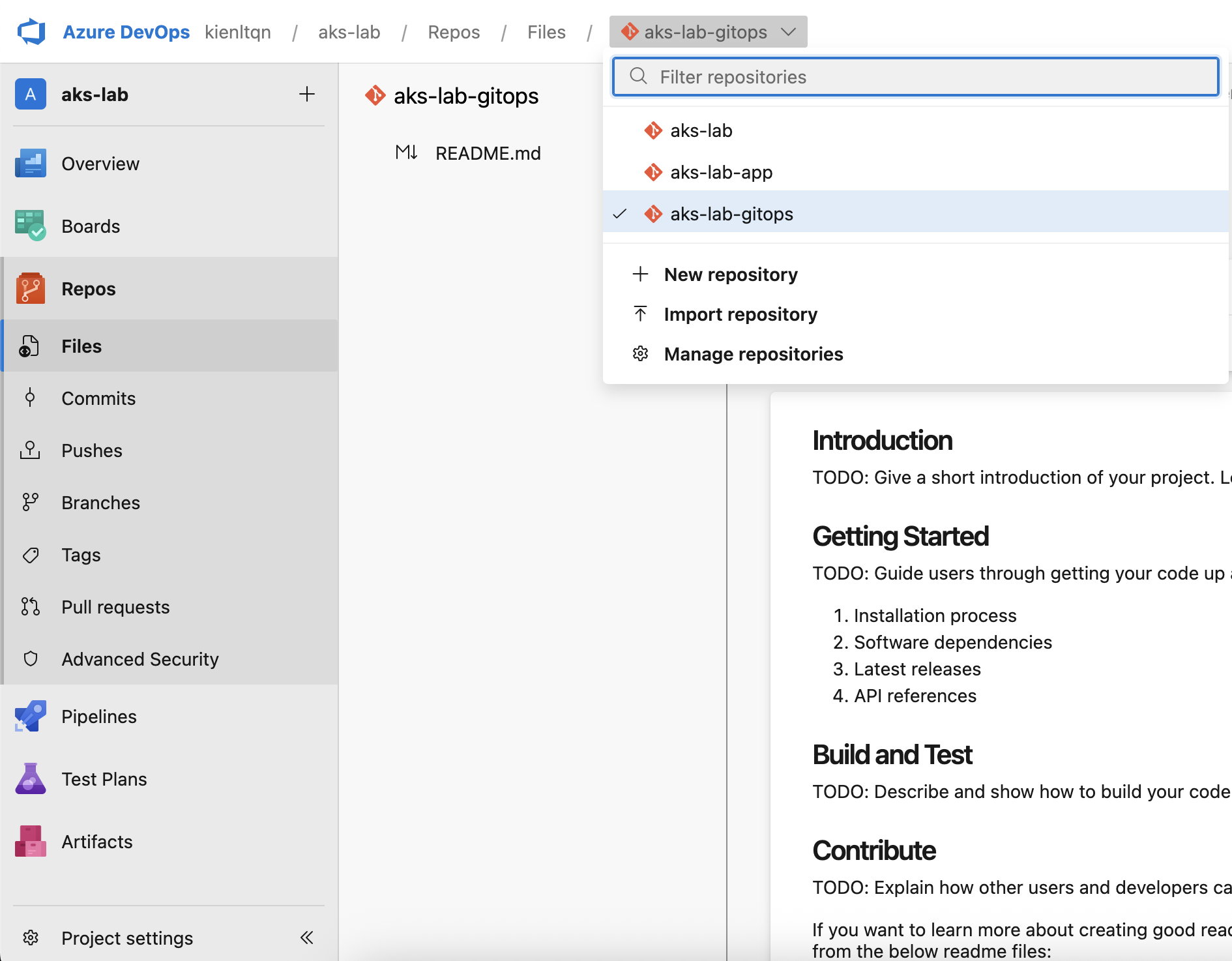

Oke, we have 2 new ones plus 1 default xD

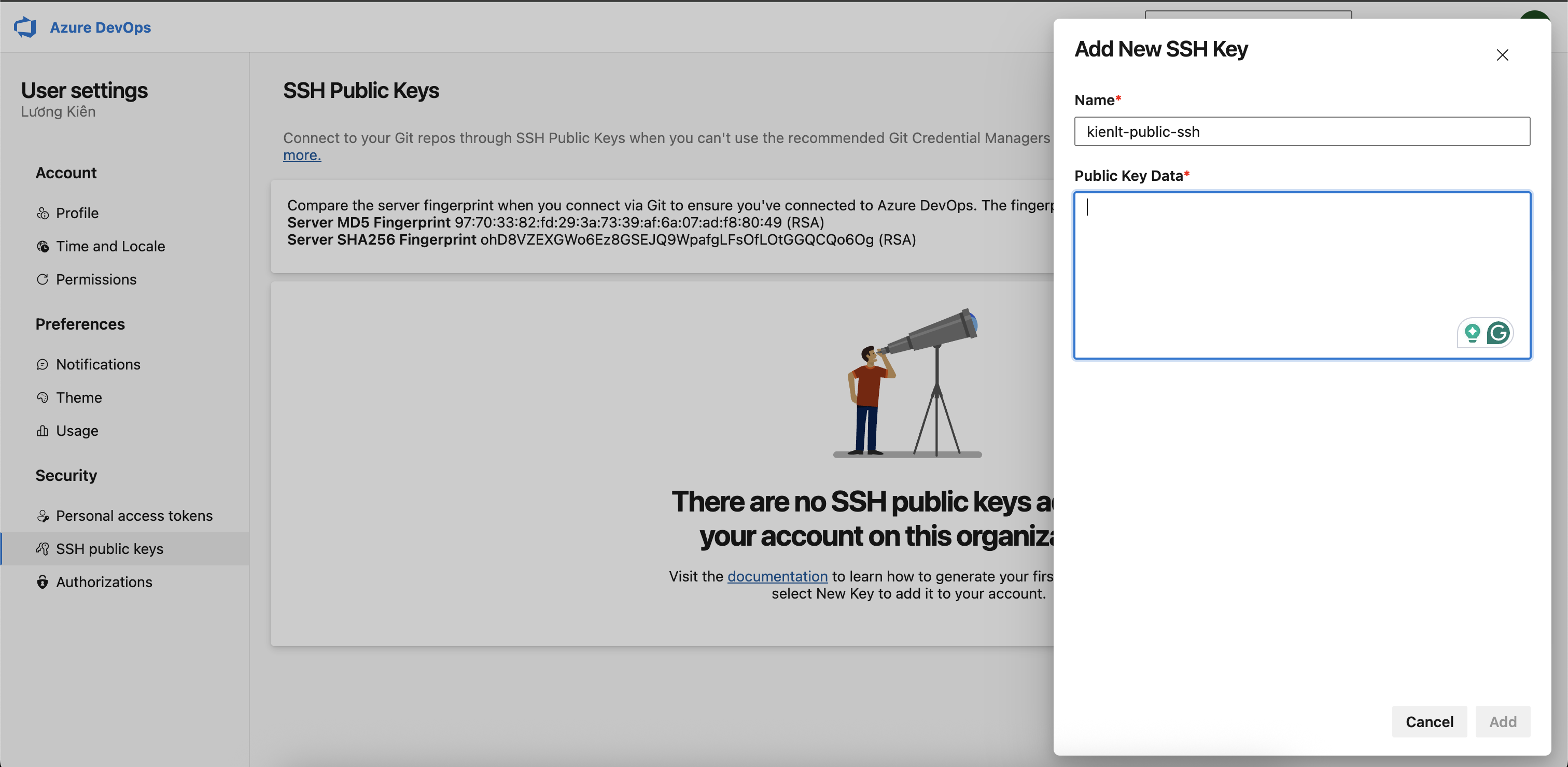

Next we need to setup ssh key for clone without credential xD. Local dev = git clone via SSH. But pipeline needs PAT because self-hosted agent / ArgoCD need HTTPS auth!
Then clone it, pretty same like other git providers xD
kienlt@Luongs-MacBook-Pro dev.azure.com % git clone git@ssh.dev.azure.com:v3/kienltqn/aks-lab/aks-lab-app
Cloning into 'aks-lab-app'...
Warning: Permanently added 'ssh.dev.azure.com' (RSA) to the list of known hosts.
remote: Azure Repos
remote: Found 3 objects to send. (51 ms)
Receiving objects: 100% (3/3), done.
And our repo will have following files from previous project
kienlt@Luongs-MacBook-Pro aks-lab-app % ll
total 32
drwxr-xr-x@ 8 kienlt staff 256 3 May 10:05 .
drwxr-xr-x@ 3 kienlt staff 96 3 May 10:02 ..
drwxr-xr-x@ 12 kienlt staff 384 3 May 10:04 .git
-rw-r--r--@ 1 kienlt staff 199 3 May 10:03 default.conf
-rw-r--r--@ 1 kienlt staff 125 3 May 10:03 Dockerfile
-rw-r--r--@ 1 kienlt staff 461 3 May 10:03 index.html
drwxr-xr-x@ 4 kienlt staff 128 3 May 10:05 manifests
-rw-r--r--@ 1 kienlt staff 985 3 May 10:02 README.md
kienlt@Luongs-MacBook-Pro aks-lab-app % ll manifests
total 16
drwxr-xr-x@ 4 kienlt staff 128 3 May 10:05 .
drwxr-xr-x@ 8 kienlt staff 256 3 May 10:05 ..
-rw-r--r--@ 1 kienlt staff 707 3 May 10:03 01.deploy.yaml
-rw-r--r--@ 1 kienlt staff 516 3 May 10:03 02.ingress.yaml
Helm chart and gitops
Next clone gitops repo:
git clone git@ssh.dev.azure.com:v3/kienltqn/aks-lab/aks-lab-gitops
Cloning into 'aks-lab-gitops'...
remote: Azure Repos
remote: Found 3 objects to send. (72 ms)
Receiving objects: 100% (3/3), done.
And then we have very very basic....
aks-lab-gitops/
└── charts/
└── hello-aks/
├── Chart.yaml
├── values.yaml
└── templates/
├── deployment.yaml
├── service.yaml
└── ingress.yaml
Validate it by using helm template. You can install it via brew install helm
helm template hello-aks ./charts/hello-aks/
---
# Source: hello-aks/templates/service.yaml
apiVersion: v1
kind: Service
metadata:
name: hello-aks
spec:
type: ClusterIP
selector:
app: hello-aks
ports:
- port: 80
targetPort: 80
---
# Source: hello-aks/templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: hello-aks
labels:
app: hello-aks
spec:
replicas: 2
selector:
matchLabels:
app: hello-aks
template:
metadata:
labels:
app: hello-aks
spec:
containers:
- name: app
image: "acrakslab20546.azurecr.io/hello-aks:v1"
imagePullPolicy: IfNotPresent
ports:
- containerPort: 80
---
# Source: hello-aks/templates/ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: hello-aks
spec:
ingressClassName: webapprouting.kubernetes.azure.com
rules:
- host: hello.kienlt.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: hello-aks
port:
number: 80
Ok, remember to clean from previous section
kienlt@Luongs-MacBook-Pro 10-ecr-aks % k delete -f 01.deploy.yaml
deployment.apps "hello-aks" deleted from default namespace
service "hello-aks" deleted from default namespace
kienlt@Luongs-MacBook-Pro 10-ecr-aks % k delete -f 02.ingress.yaml
ingress.networking.k8s.io "hello-aks" deleted from default namespace
ArgoCD

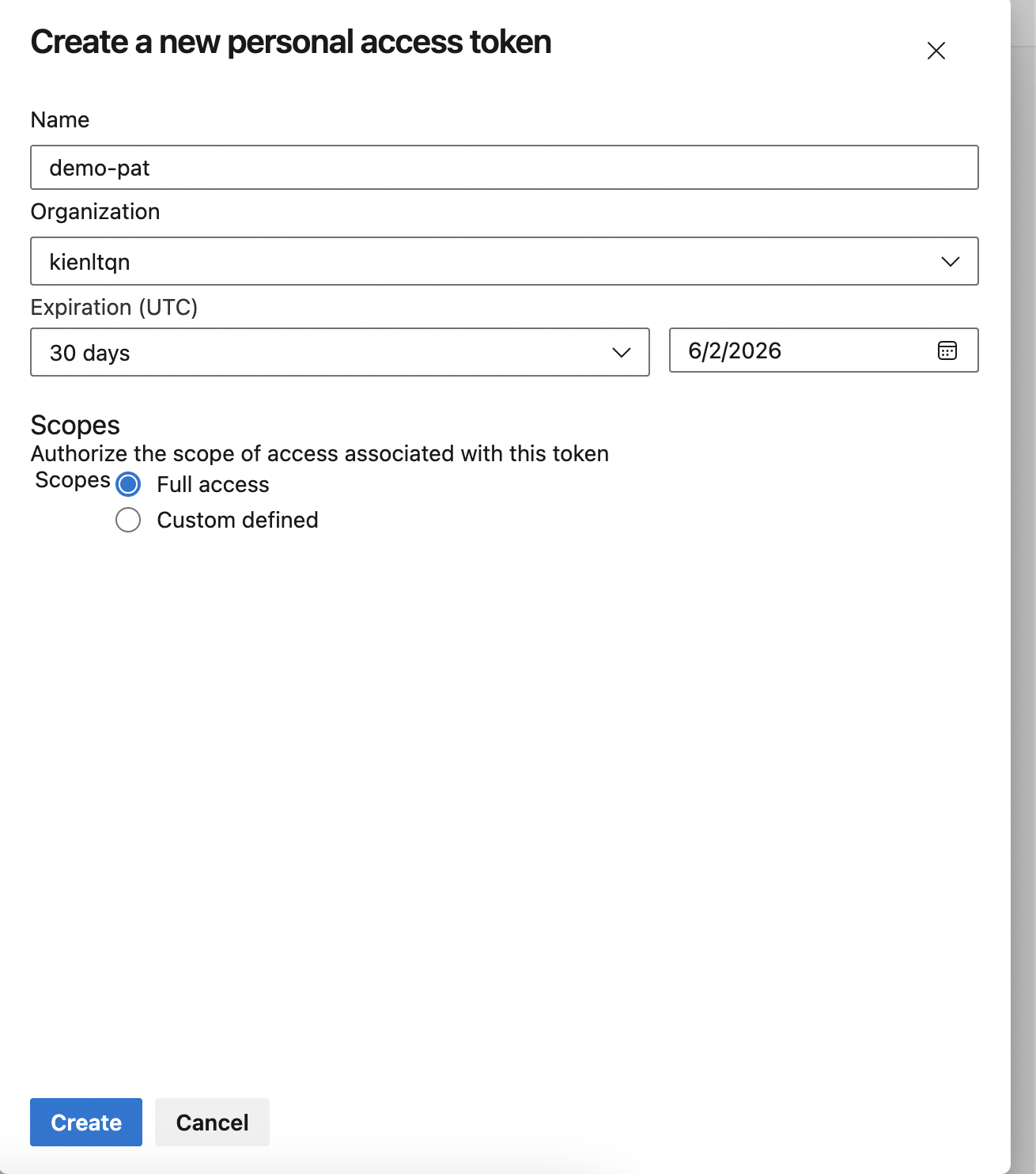

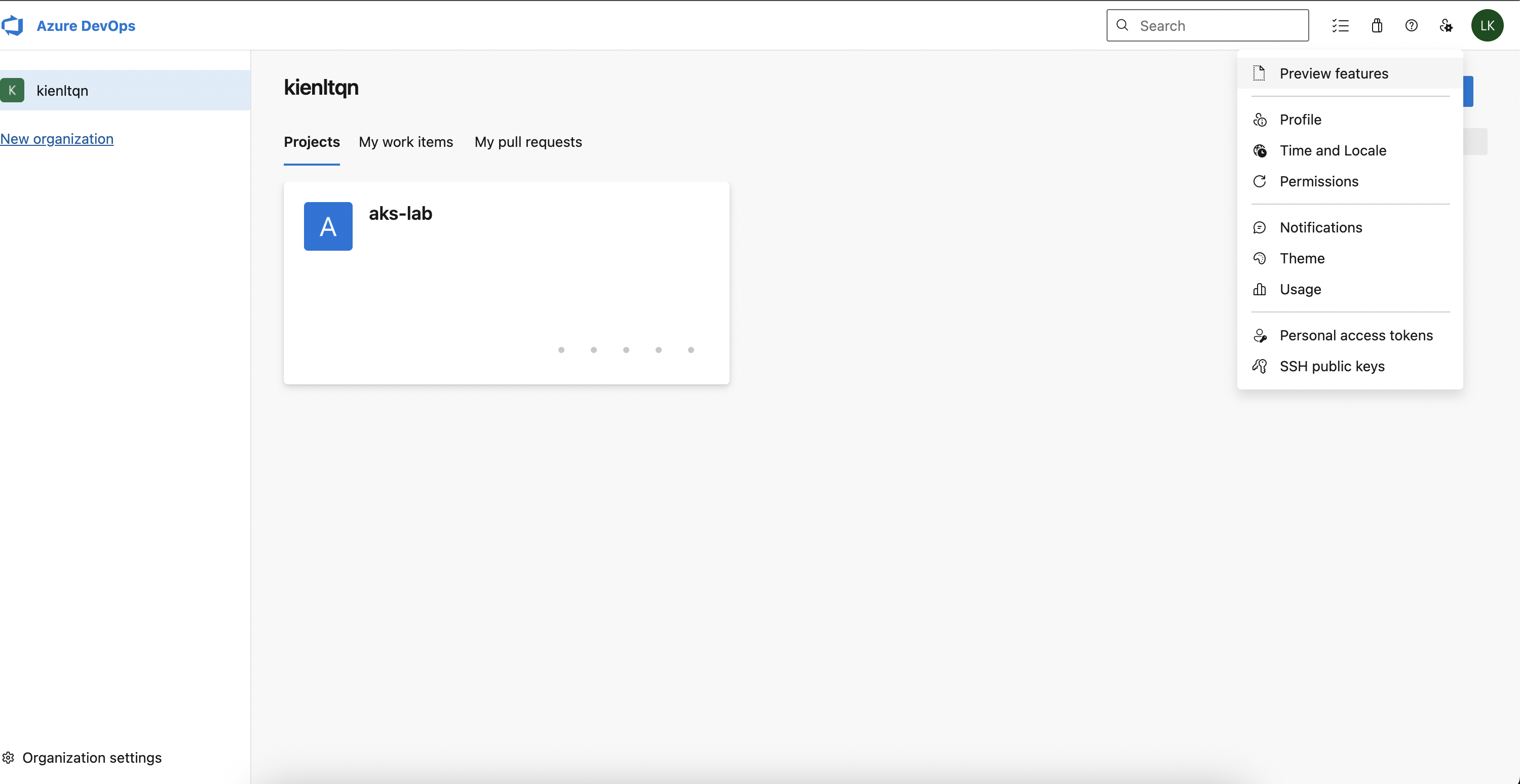

We need to create PAT (Personal Access Token) to give Argocd permission to sync...
Yeah, full access for this fucking demo xD or serious with Scopes: Custom defined → tick Code → Read
Test token time:
PAT="<your-pat>"
curl -sI -u "kienltqn:$PAT" \
"https://dev.azure.com/kienltqn/aks-lab/_git/aks-lab-gitops/info/refs?service=git-upload-pack" \
| head -3
Response ok:
HTTP/2 200
cache-control: no-cache, no-store, must-revalidate
pragma: no-cache

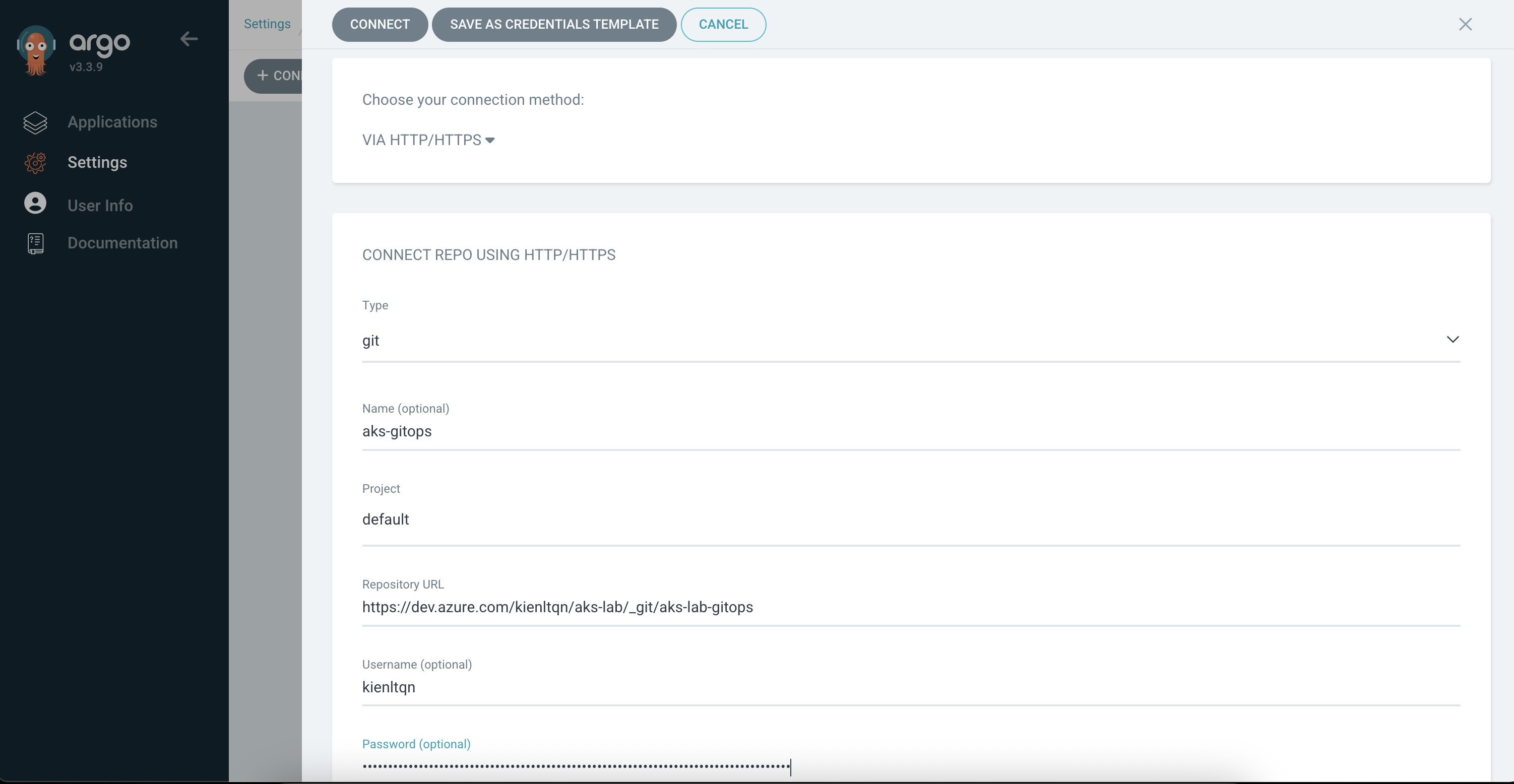

Connect Repo in ArgoCD: remember, no fucking username (@username) in repo URL.

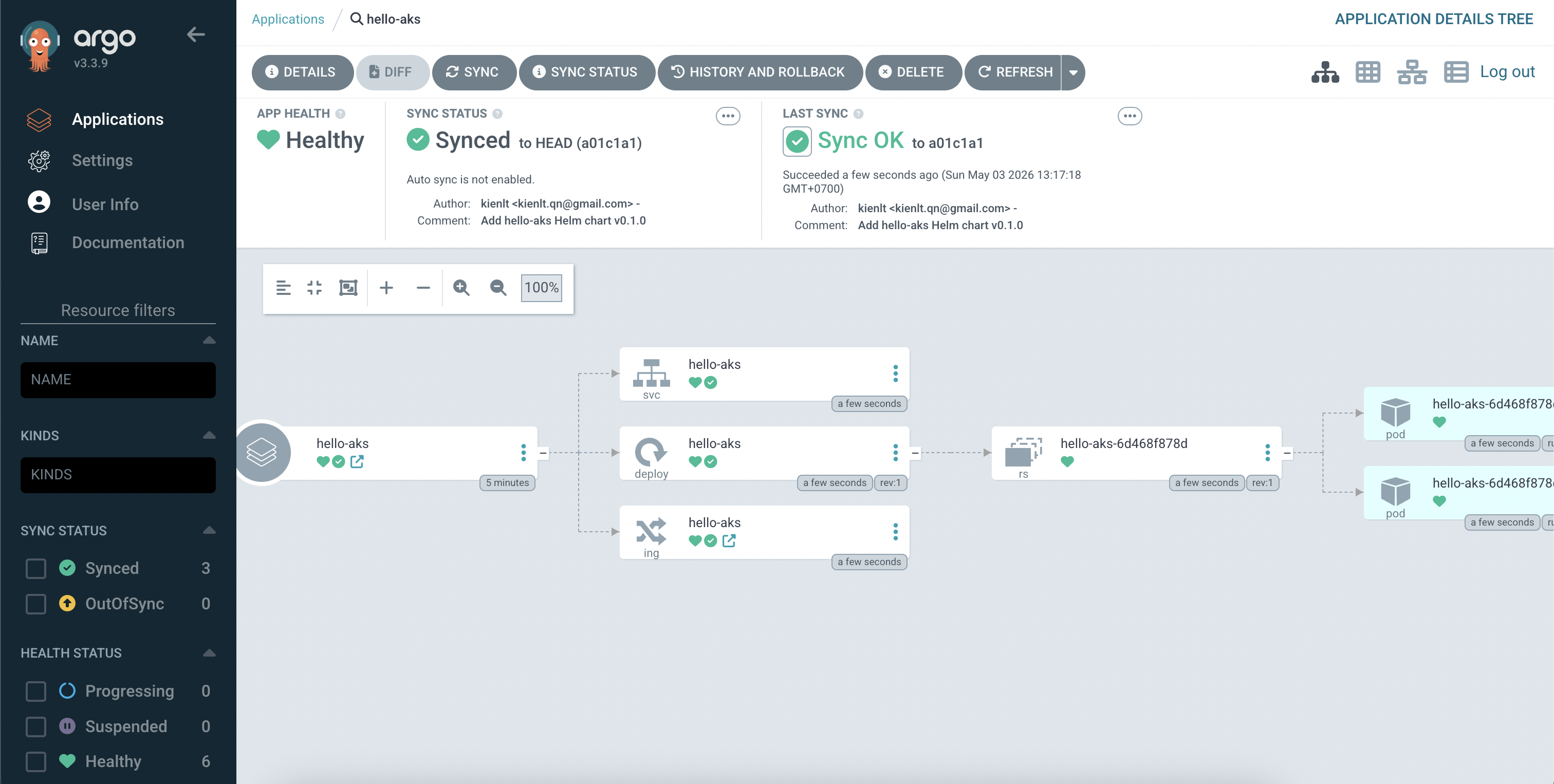

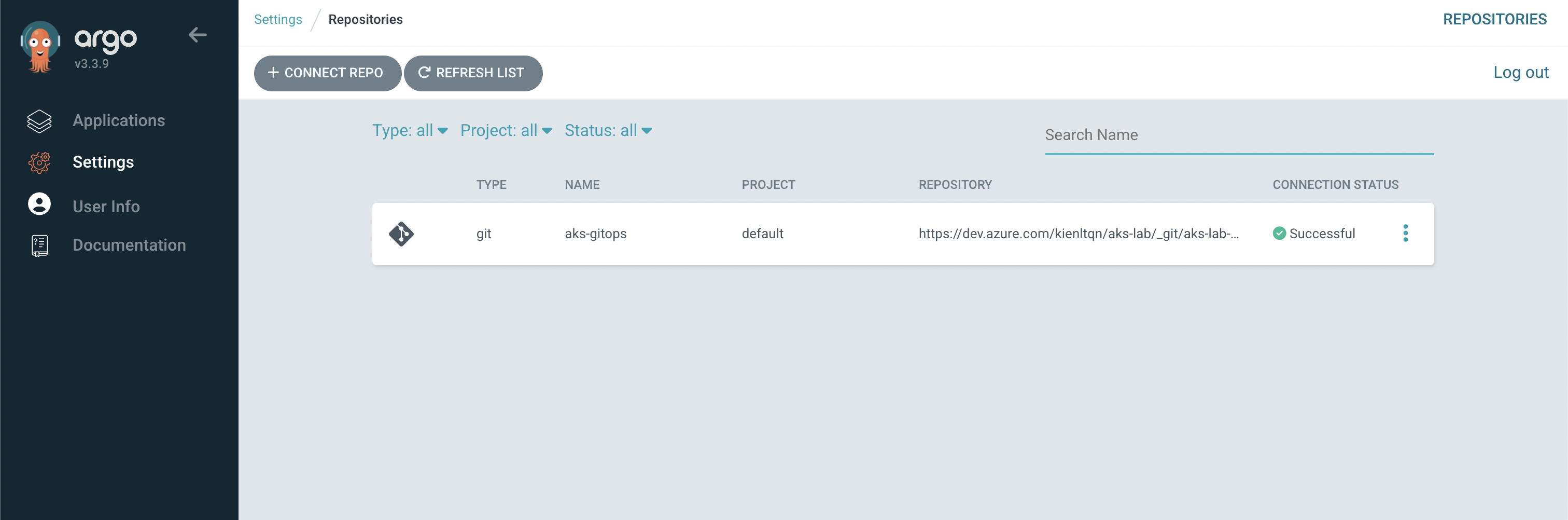

Expected result
Expected output in applications
My manifest for that application:
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
name: hello-aks
namespace: argocd
spec:
project: default
source:
repoURL: https://dev.azure.com/kienltqn/aks-lab/_git/aks-lab-gitops
targetRevision: HEAD
path: charts/hello-aks
helm:
valueFiles:
- values.yaml
destination:
server: https://kubernetes.default.svc
namespace: hello-aks
syncPolicy:
syncOptions:
- CreateNamespace=true
Step 3: Azure Pipeline build -> push ACR -> bump tag GitOps

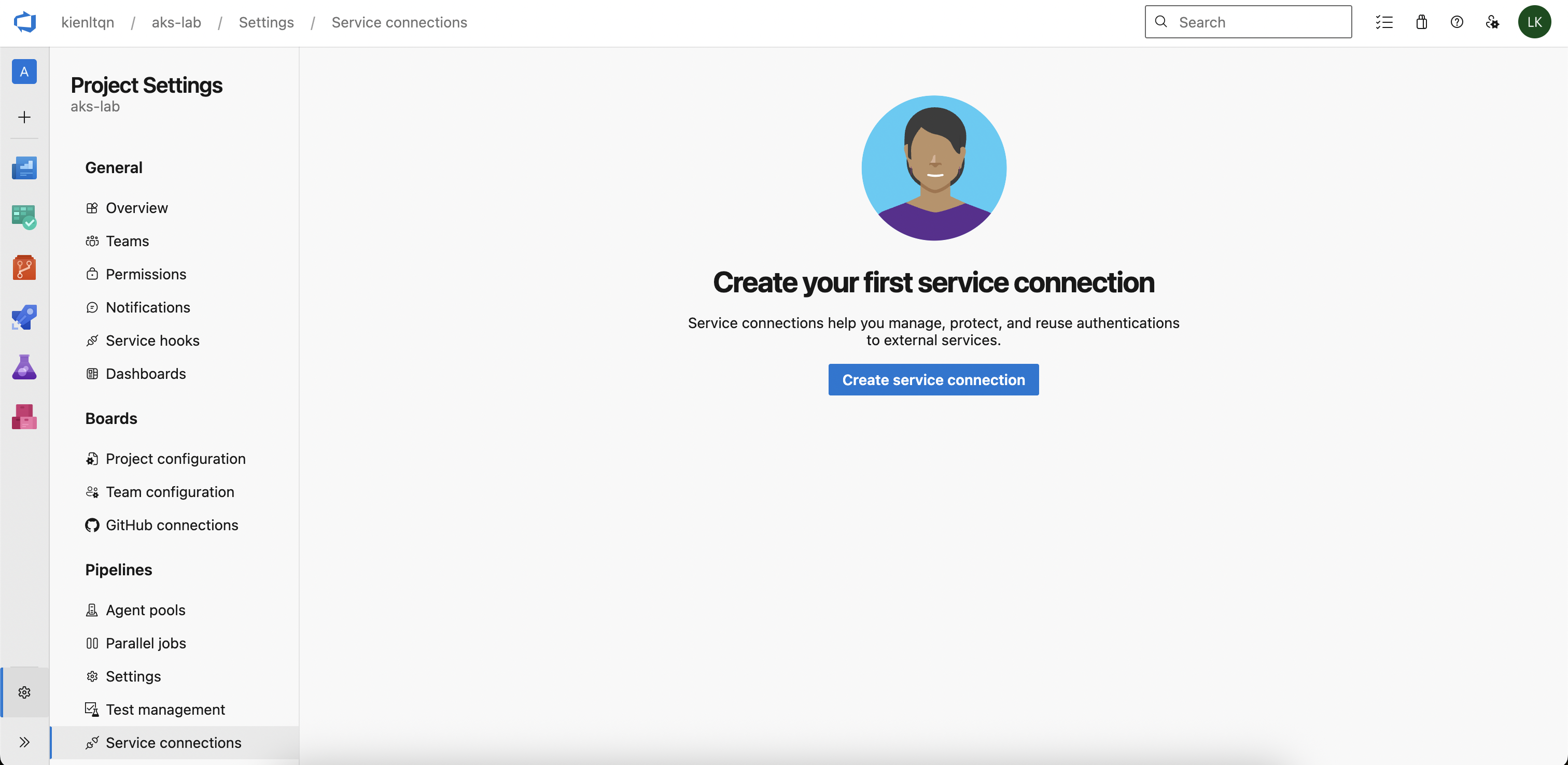

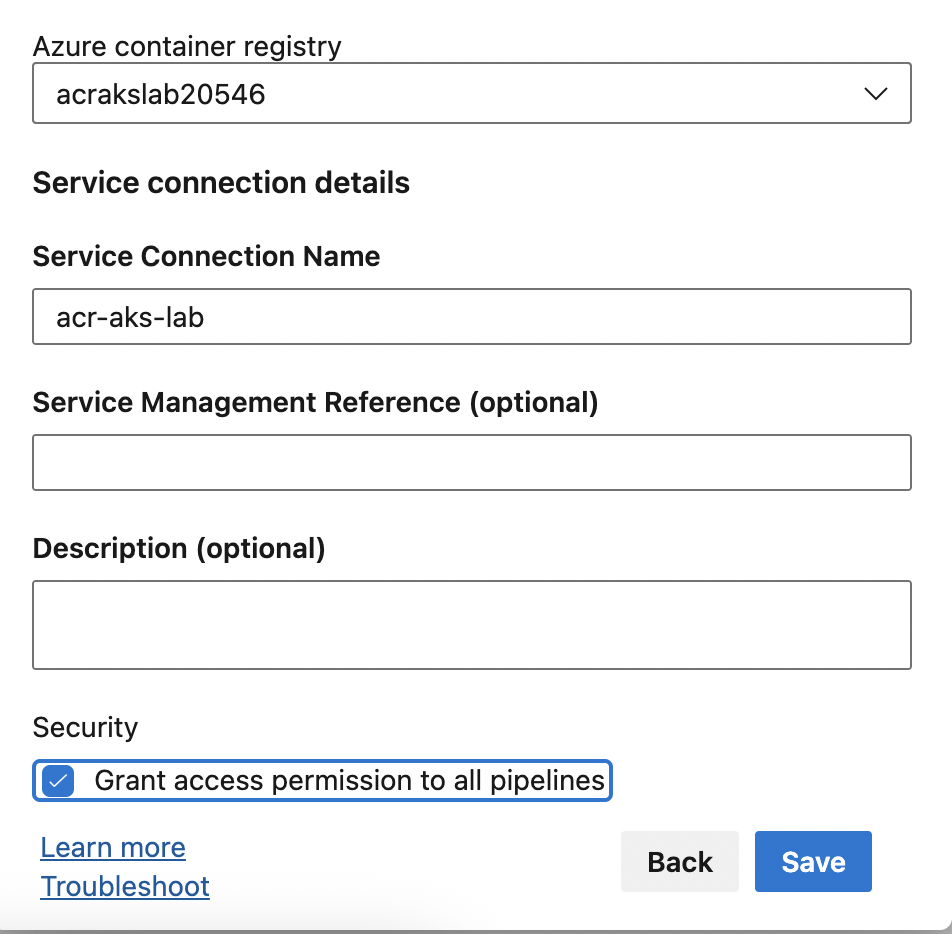

Create Service Connection for ACR
Pipeline needs to auth into ACR to push image. The recommended way is Service connection using Service Principal.
Project Settings --> Service Connections --> New Service Connections --> Docker Registry
After that:
- Registry type: Azure Container Registry
- Authentication Type: Service Principal
- Subscription: pick subscription that contains ACR
- Azure container registry: your ACR
- Service connection name: acr-aks-lab
- Grant access permission to all pipelines

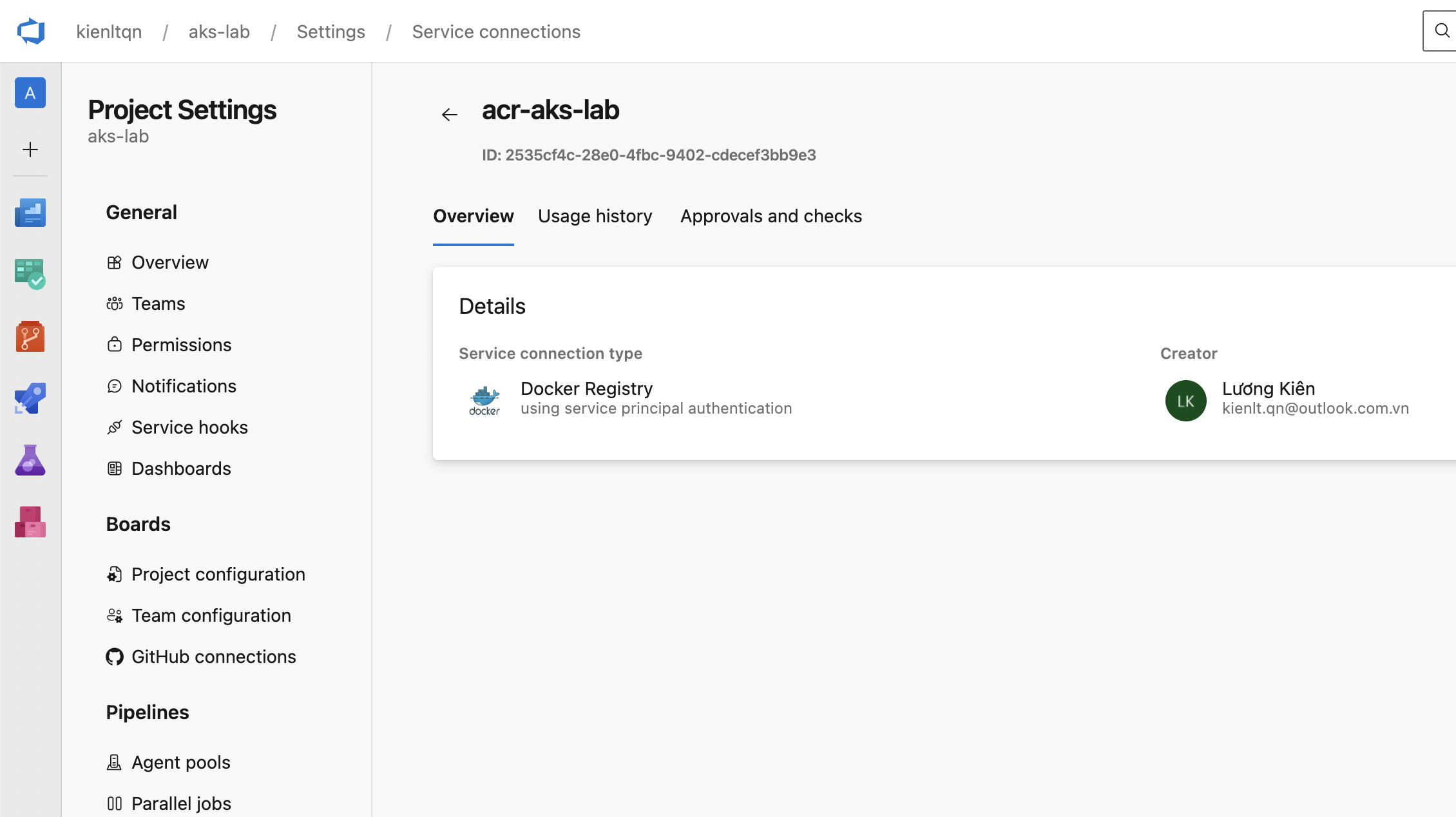

Output:
Grant access for Build Service push into gitops repo

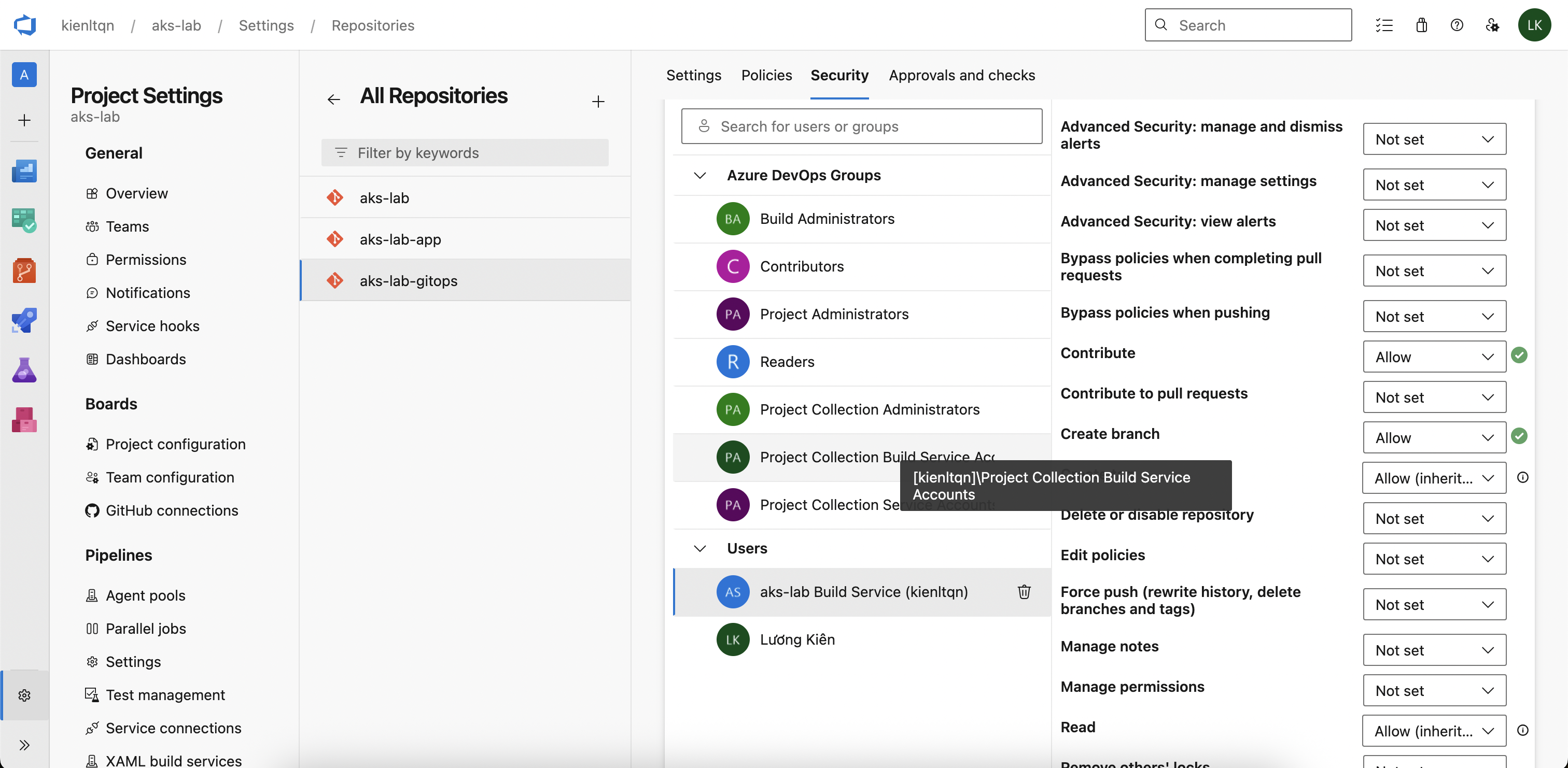

Project Settings -> Repositories -> aks-lab-gitops -> tab Security -> find user like: aks-lab Build Service (kienltqn). Then set following permission to "Allow" - Contribute - Create branch

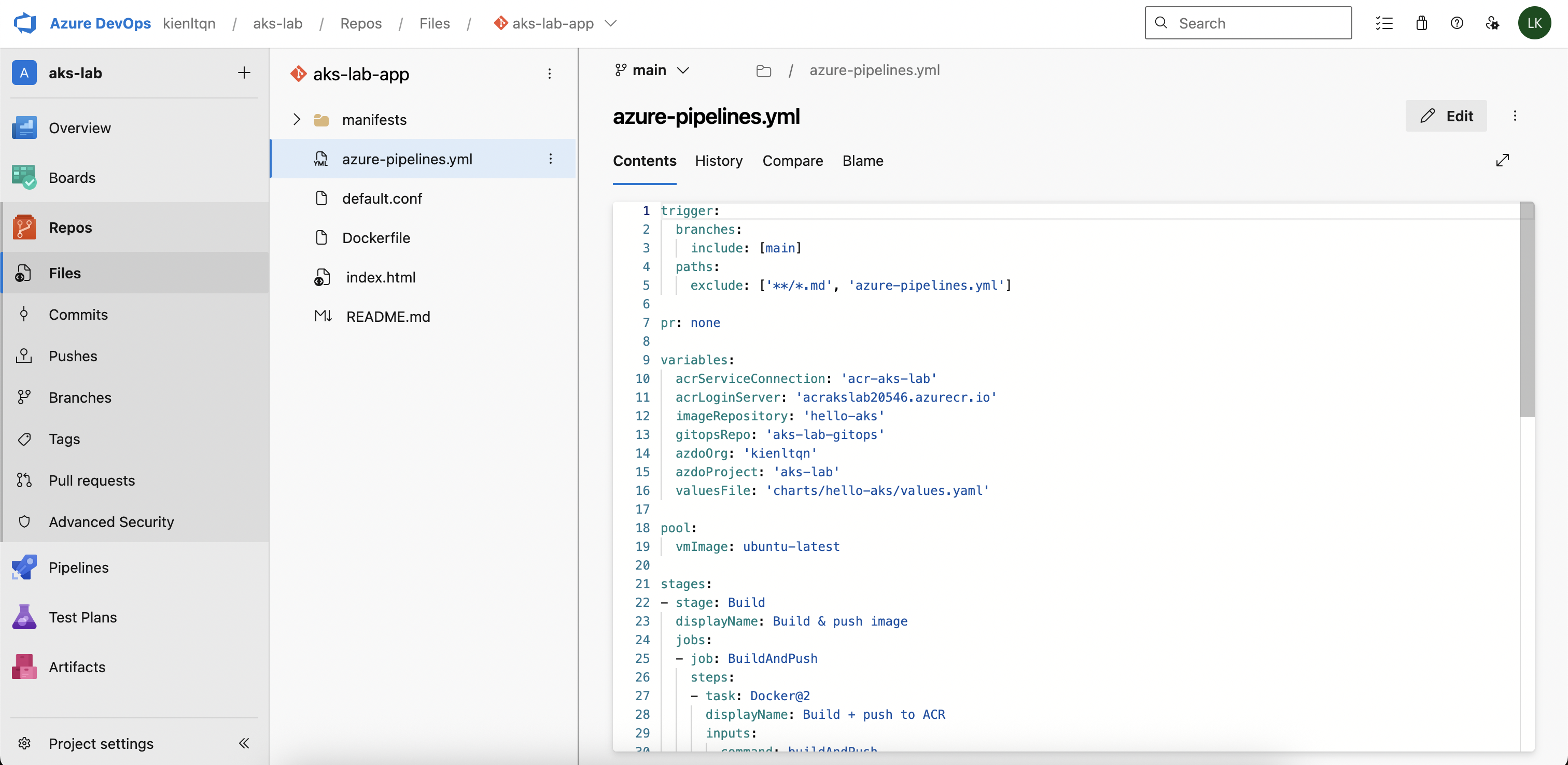

Create azure-pipelines.yml (like .gitlab-ci.yml xD)
trigger:
branches:
include: [main]
paths:
exclude: ['**/*.md', 'azure-pipelines.yml']
pr: none
variables:
acrServiceConnection: 'acr-aks-lab'
acrLoginServer: 'acrakslab20546.azurecr.io'
imageRepository: 'hello-aks'
gitopsRepo: 'aks-lab-gitops'
azdoOrg: 'kienltqn'
azdoProject: 'aks-lab'
valuesFile: 'charts/hello-aks/values.yaml'
pool:
name: local-mac
stages:
- stage: Build
displayName: Build & push image
jobs:
- job: BuildAndPush
steps:
- task: Docker@2
displayName: Login ACR
inputs:
command: login
containerRegistry: $(acrServiceConnection)
- bash: |
set -euo pipefail
BUILDX="${HOME}/.docker/cli-plugins/docker-buildx"
# Verify
"$BUILDX" version
# Create builder (idempotent)
"$BUILDX" create --use --name multiarch 2>/dev/null || "$BUILDX" use multiarch
"$BUILDX" inspect --bootstrap
"$BUILDX" build \
--platform linux/amd64 \
--tag $(acrLoginServer)/$(imageRepository):$(Build.BuildId) \
--push \
.
displayName: Build linux/amd64 & push (direct binary)
- task: Docker@2
displayName: Logout ACR
inputs:
command: logout
containerRegistry: $(acrServiceConnection)
- stage: UpdateGitOps
displayName: Bump image tag in gitops
dependsOn: Build
condition: succeeded()
jobs:
- job: BumpTag
steps:
- checkout: none
- bash: |
set -euo pipefail
# Diagnostic: verify PAT reached script
echo "PAT length: ${#GITOPS_PAT}"
# URL embed PAT (Azure Pipelines auto-mask secret in log)
REPO_URL="https://kienltqn:${GITOPS_PAT}@dev.azure.com/$(azdoOrg)/$(azdoProject)/_git/$(gitopsRepo)"
git clone "$REPO_URL" gitops
cd gitops
yq -i ".image.tag = \"$(Build.BuildId)\"" $(valuesFile)
echo "----- updated values.yaml -----"
cat $(valuesFile)
git config user.email "pipeline@dev.azure.com"
git config user.name "Azure Pipeline"
git add $(valuesFile)
if git diff --cached --quiet; then
echo "No tag change, skip commit."
exit 0
fi
git commit -m "ci: bump hello-aks image to $(Build.BuildId) [skip ci]"
git push origin HEAD:main
env:
GITOPS_PAT: $(GITOPS_PAT)
displayName: Update values.yaml & push
Note: This pipeline is designed for self-hosted Mac agent. We'll see why below.
Create Pipeline definition in Azure DevOps UI
Pipelines -> Pipelines -> Create Pipeline -> Azure Repos Git -> chọn aks-lab-app -> Existing Azure Pipelines YAML file -> Branch main, Path /azure-pipelines.yml -> Continue -> Run.

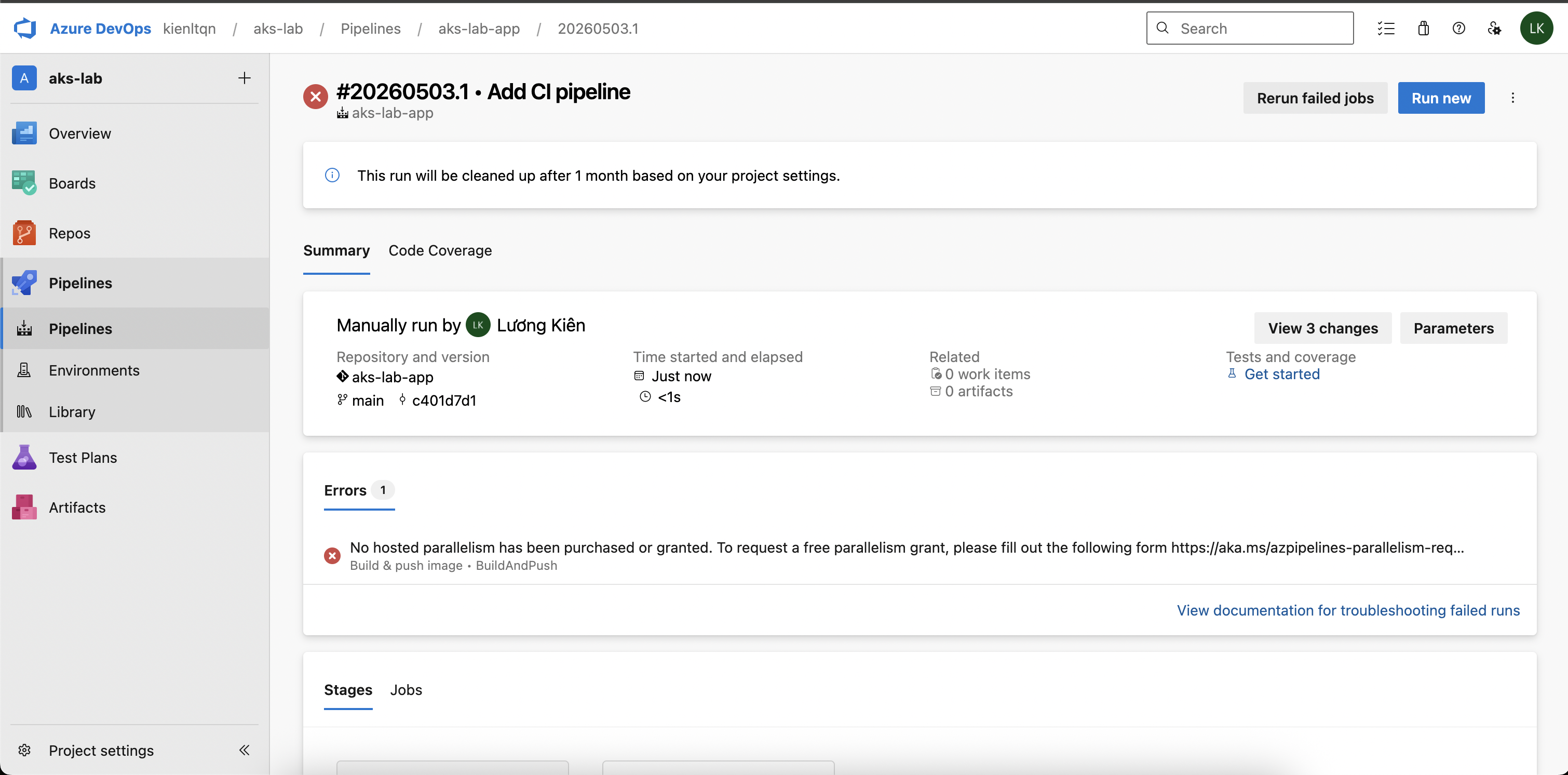

LOL, Holy fucking shit

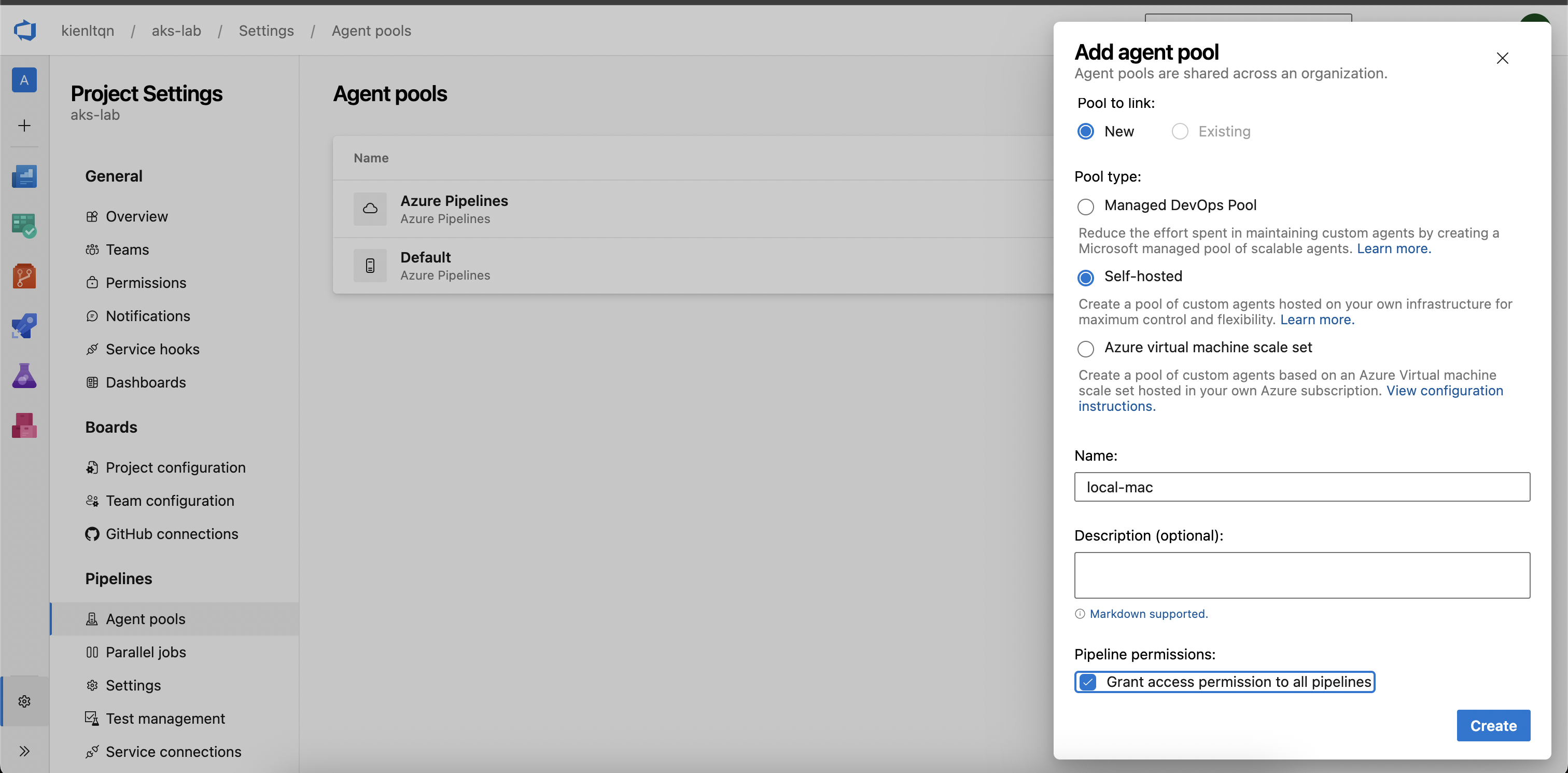

Time to create new agent-pool self-host

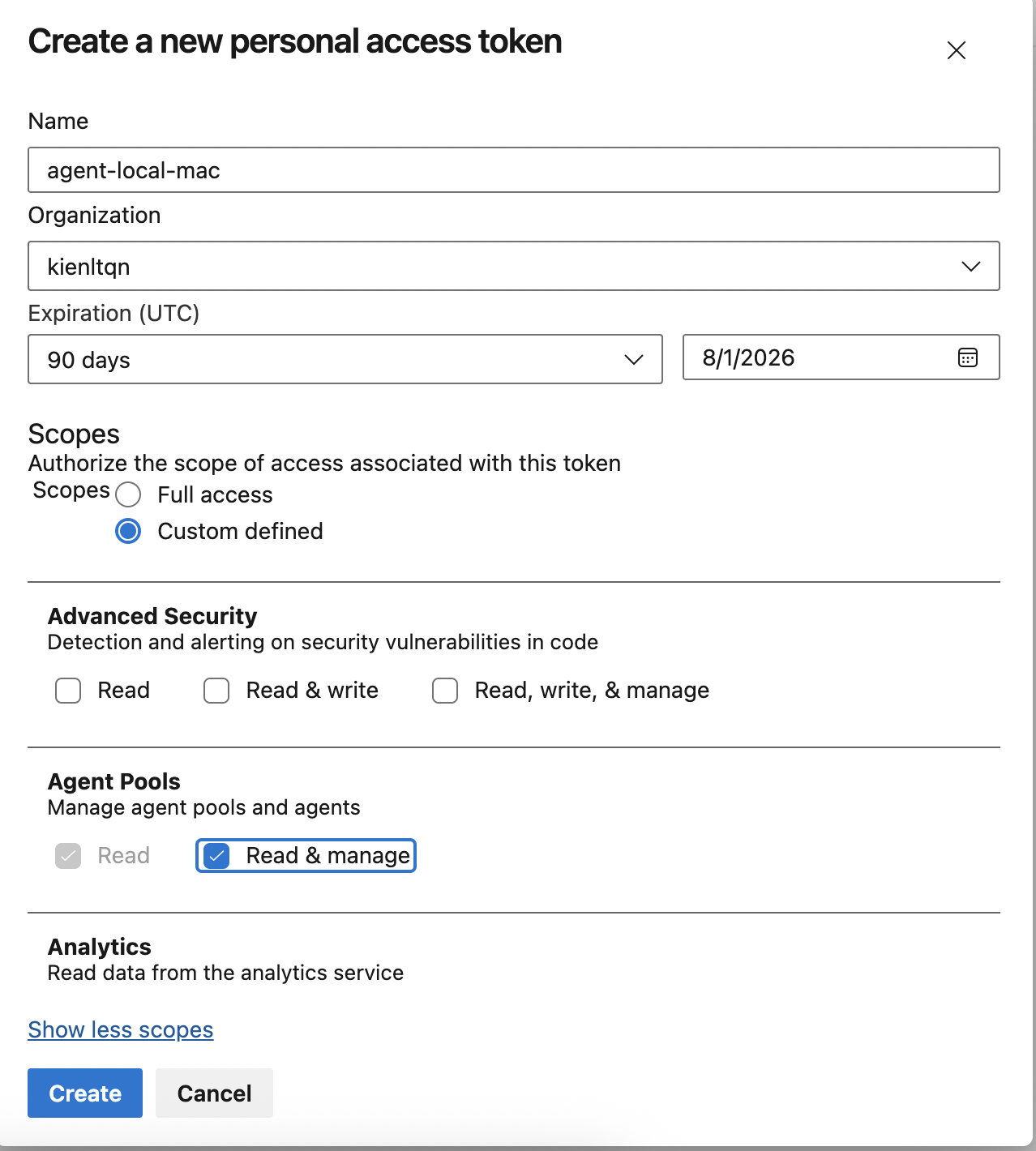

Create new PAT for agent-local-mac
User Settings (avatar) → Personal access tokens → New Token:
- Name: agent-local-mac
- Organization: kienltqn
- Expiration: 90 days
- Scopes: Custom defined → Agent Pools → tick Read & manage

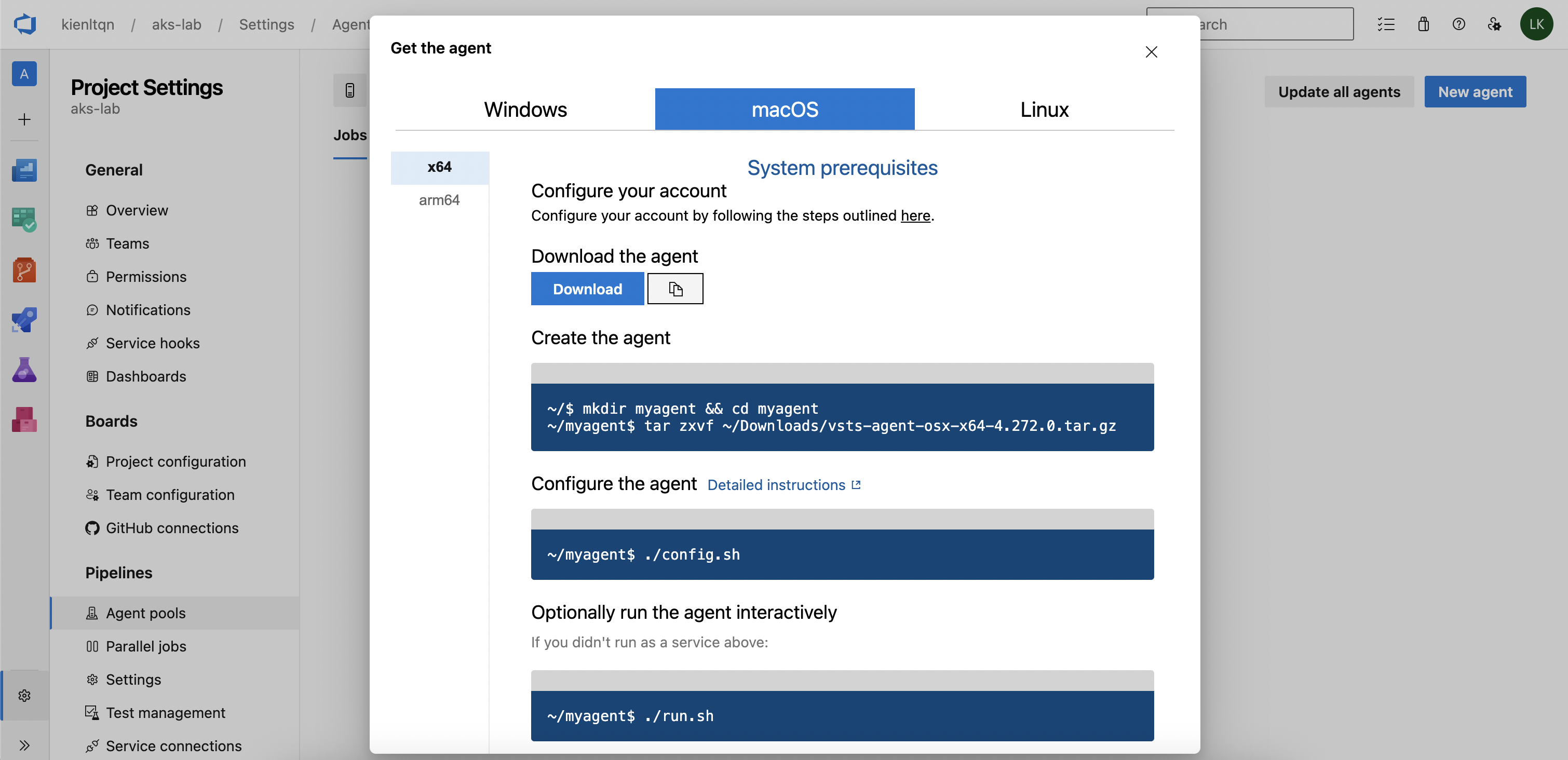

Install and config agent in local mac
Need to run: brew install docker-buildx for Mac Local and symlink
mkdir -p ~/.docker/cli-plugins
ln -sfn $(brew --prefix)/opt/docker-buildx/bin/docker-buildx \
~/.docker/cli-plugins/docker-buildx
Follow instruction and finally, we have following thing below, remember PAT is what we just created above.
kienlt@Luongs-MacBook-Pro azp-agent % ./config.sh
___ ______ _ _ _
/ _ \ | ___ (_) | (_)
/ /_\ \_____ _ _ __ ___ | |_/ /_ _ __ ___| |_ _ __ ___ ___
| _ |_ / | | | '__/ _ \ | __/| | '_ \ / _ \ | | '_ \ / _ \/ __|
| | | |/ /| |_| | | | __/ | | | | |_) | __/ | | | | | __/\__ \
\_| |_/___|\__,_|_| \___| \_| |_| .__/ \___|_|_|_| |_|\___||___/
| |
agent v4.272.0 |_| (commit 491e611)
>> End User License Agreements:
Building sources from a TFVC repository requires accepting the Team Explorer Everywhere End User License Agreement. This step is not required for building sources from Git repositories.
A copy of the Team Explorer Everywhere license agreement can be found at:
/Users/kienlt/azp-agent/license.html
Enter (Y/N) Accept the Team Explorer Everywhere license agreement now? (press enter for N) > Y
>> Connect:
Enter server URL > https://dev.azure.com/kienltqn
Enter authentication type (press enter for PAT) > PAT
Enter personal access token > ************************************************************************************
Connecting to server ...
>> Register Agent:
Enter agent pool (press enter for default) > local-mac
Enter agent name (press enter for Luongs-MacBook-Pro) >
Scanning for tool capabilities.
Connecting to the server.
Successfully added the agent
Testing agent connection.
Enter work folder (press enter for _work) >
2026-05-03 10:38:46Z: Settings Saved.
Ok, let's gooooooo:
kienlt@Luongs-MacBook-Pro azp-agent % ./run.sh
Scanning for tool capabilities.
Connecting to the server.
2026-05-03 10:39:06Z: Listening for Jobs

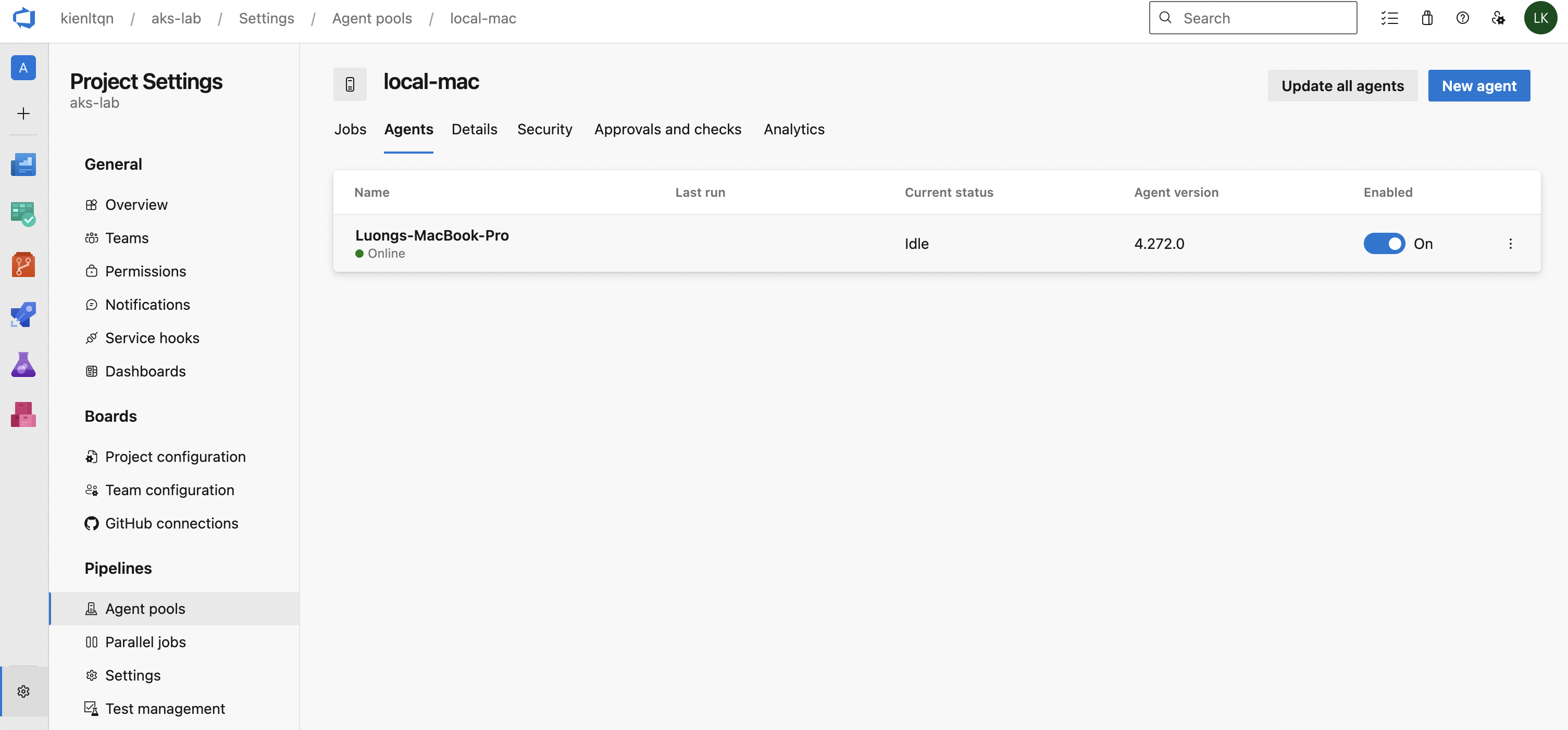

Verify agent online:
Change from azure-pipelines.yml from
pool:
vmImage: ubuntu-latest
to
pool:
name: local-mac

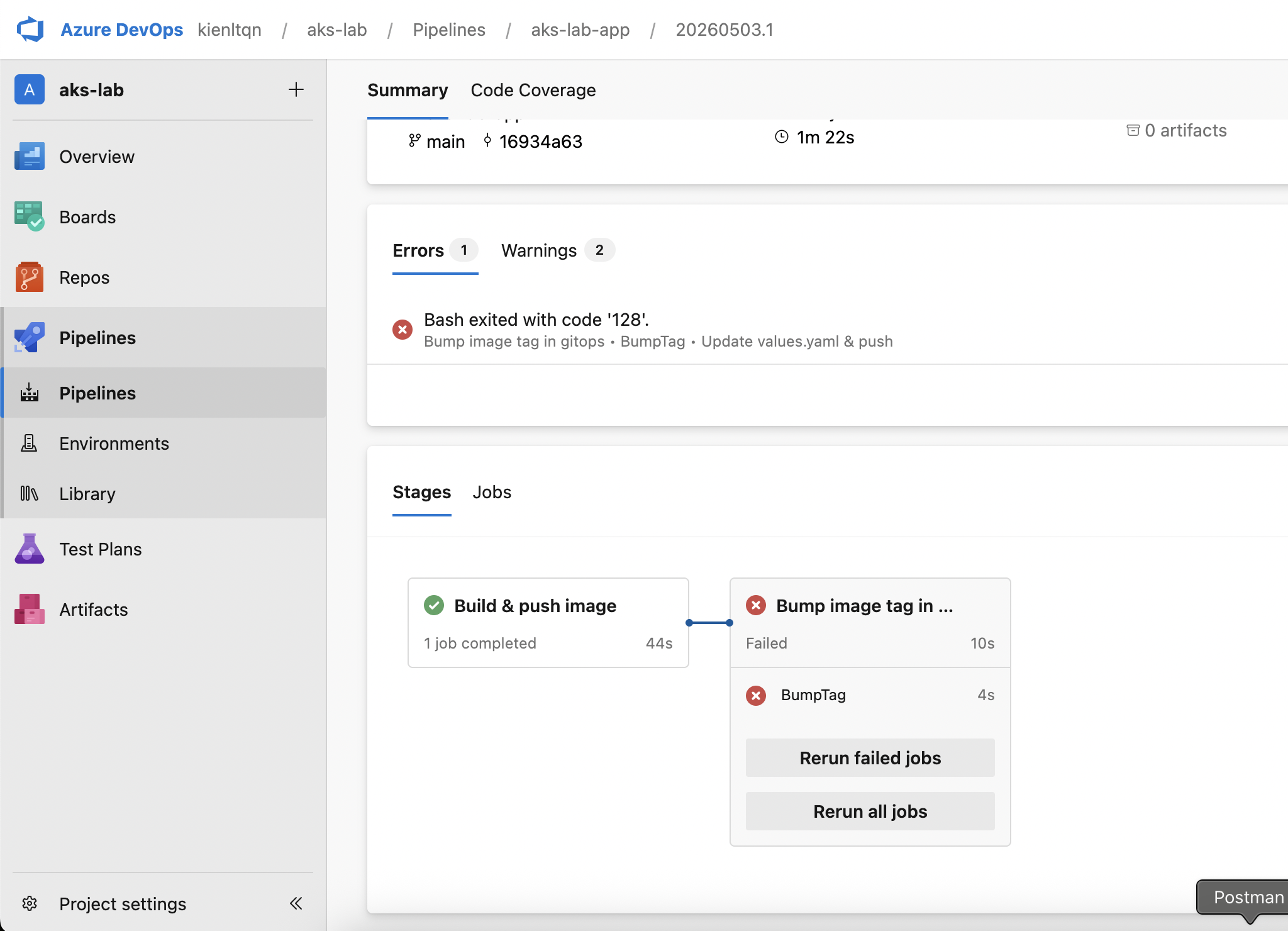

Delete existing pipeline, run new pipeline and here is output, failed but it run xD
Hmm, it still fucked up in part clone gitops repo. Time to create a new PAT for it — or just skip and reuse that fucking FULL ACCESS PAT!!!

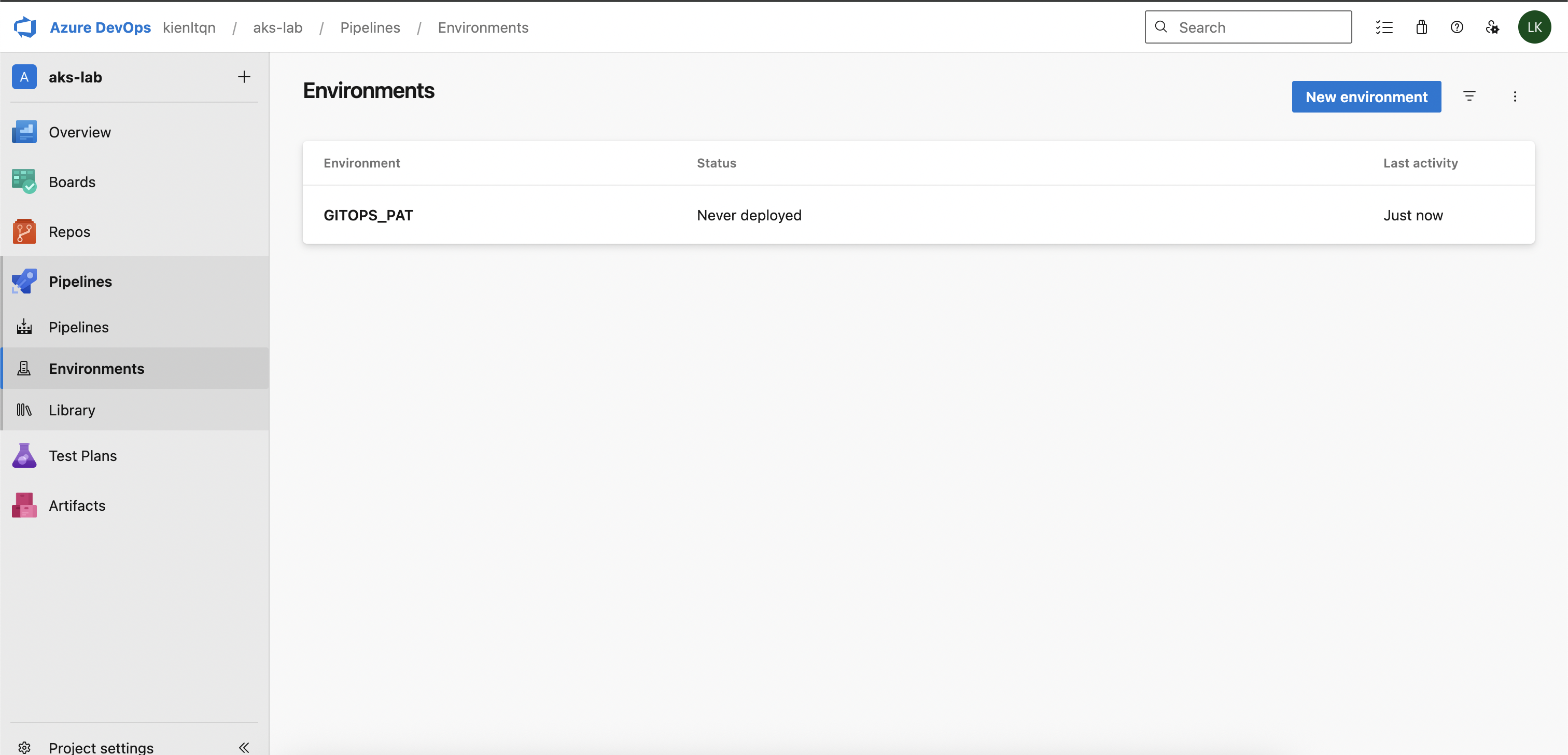

Add PAT for secret variable of pipeline, it is simple, create environment variable, like this!

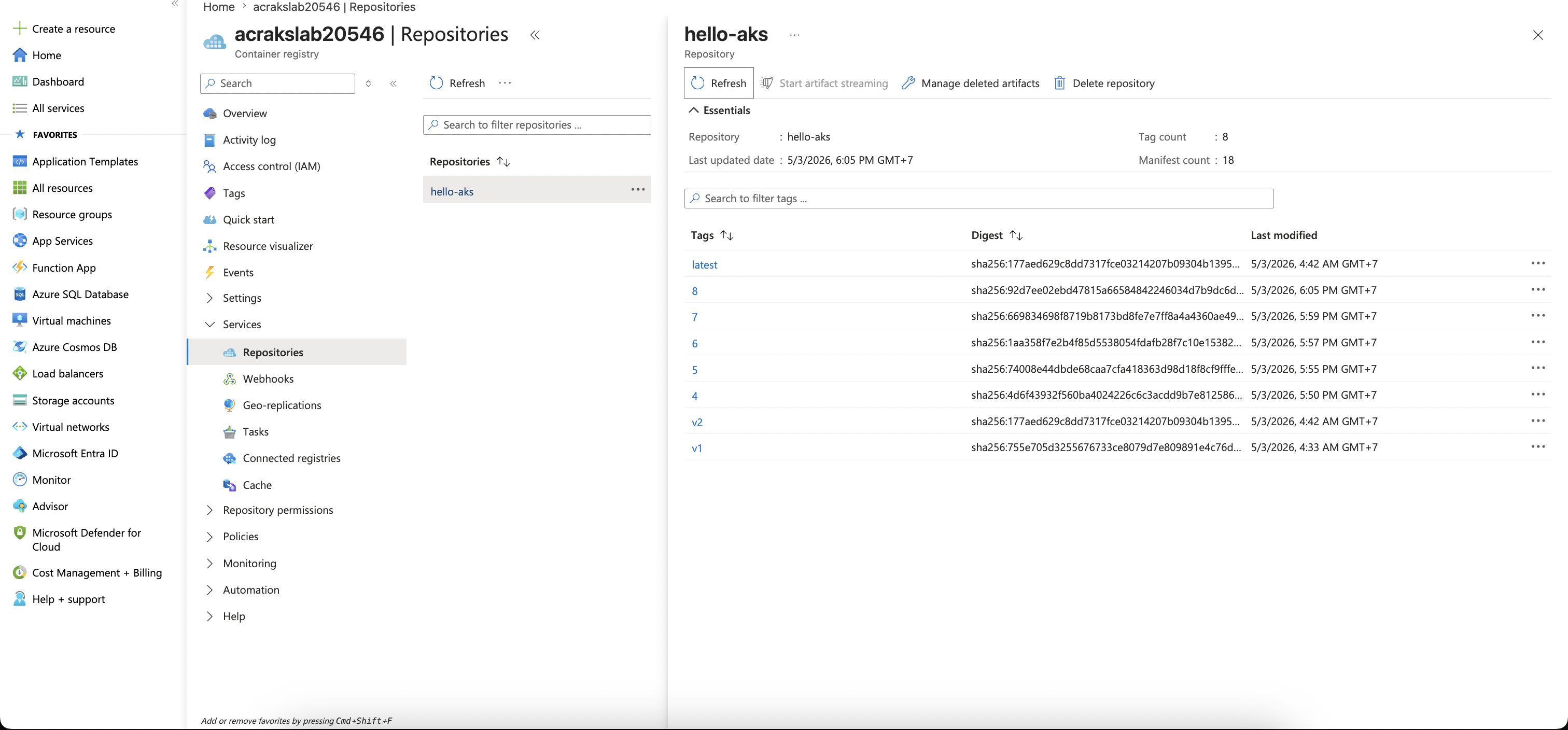

At least we got build image works

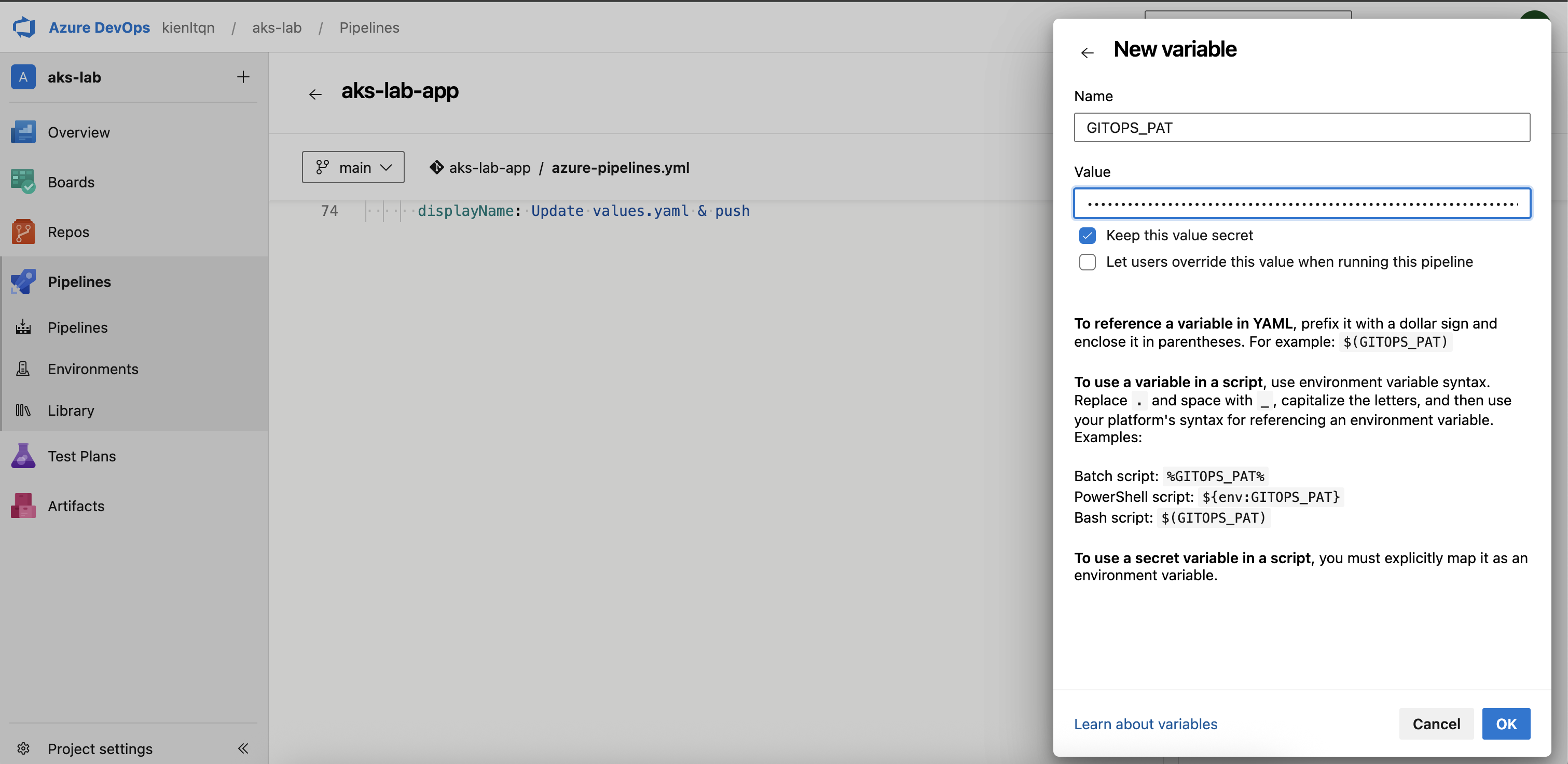

Hmmm, seem like I already fucked up, I create env, not pipeline variable?
In Azure DevOps: - Pipeline variable = key-value injected as env var in pipeline run (can mark as secret) - Environment = deployment target (k8s/VM/etc.) used for approval gates, not variable scope

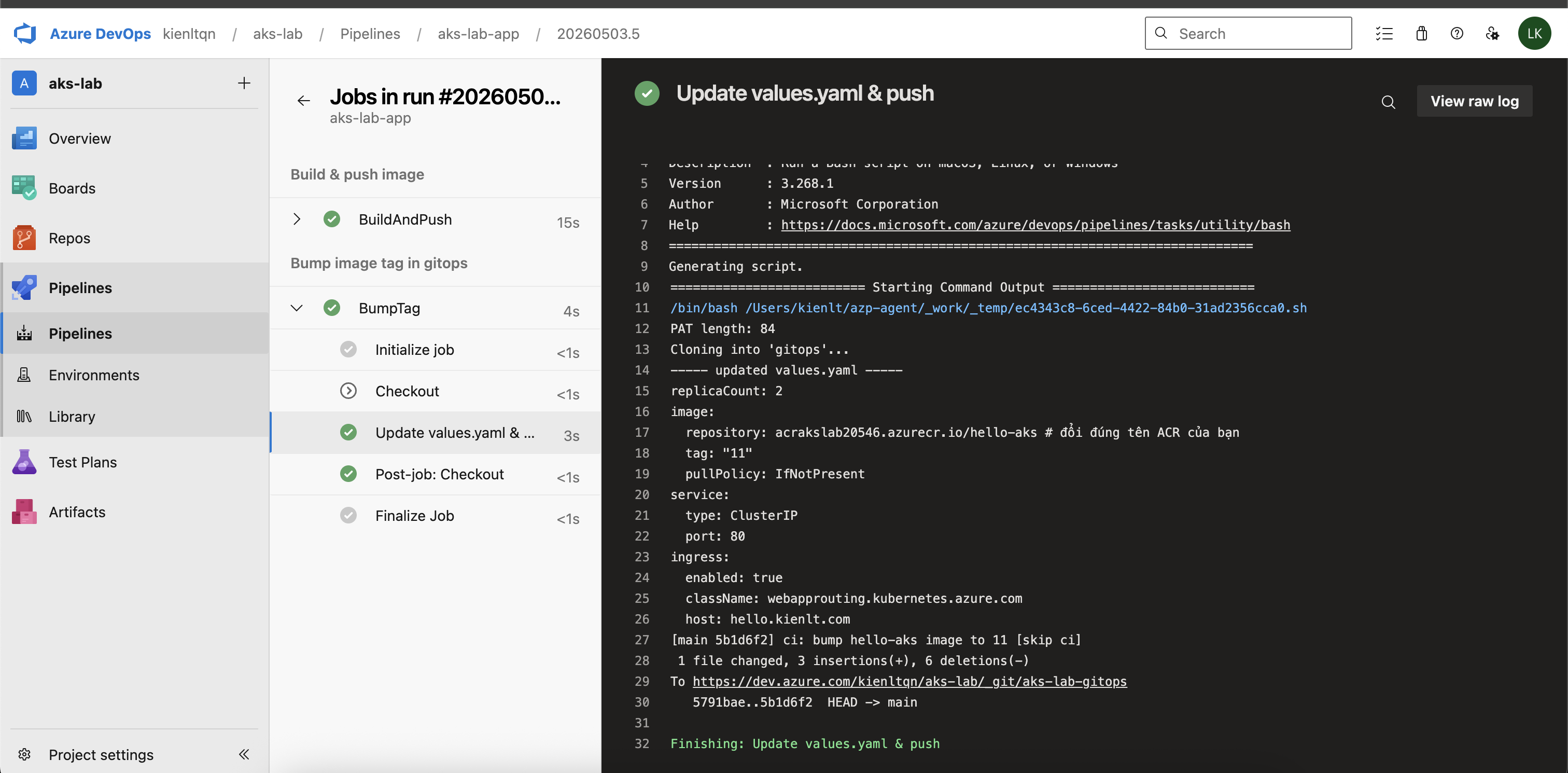

Yeah, god damn it!!!
Starting: Update values.yaml & push
==============================================================================
Task : Bash
Description : Run a Bash script on macOS, Linux, or Windows
Version : 3.268.1
Author : Microsoft Corporation
Help : https://docs.microsoft.com/azure/devops/pipelines/tasks/utility/bash
==============================================================================
Generating script.
========================== Starting Command Output ===========================
/bin/bash /Users/kienlt/azp-agent/_work/_temp/3651f932-ea84-4340-bf3c-573b2d13a766.sh
PAT length: 84
Cloning into 'gitops'...
/Users/kienlt/azp-agent/_work/_temp/3651f932-ea84-4340-bf3c-573b2d13a766.sh: line 12: yq: command not found
##[error]Bash exited with code '127'.
Finishing: Update values.yaml & push
Time to install yq in my local Mac brew install yq. Remember to delete Environment we created in previous step!
Yayyy, finally

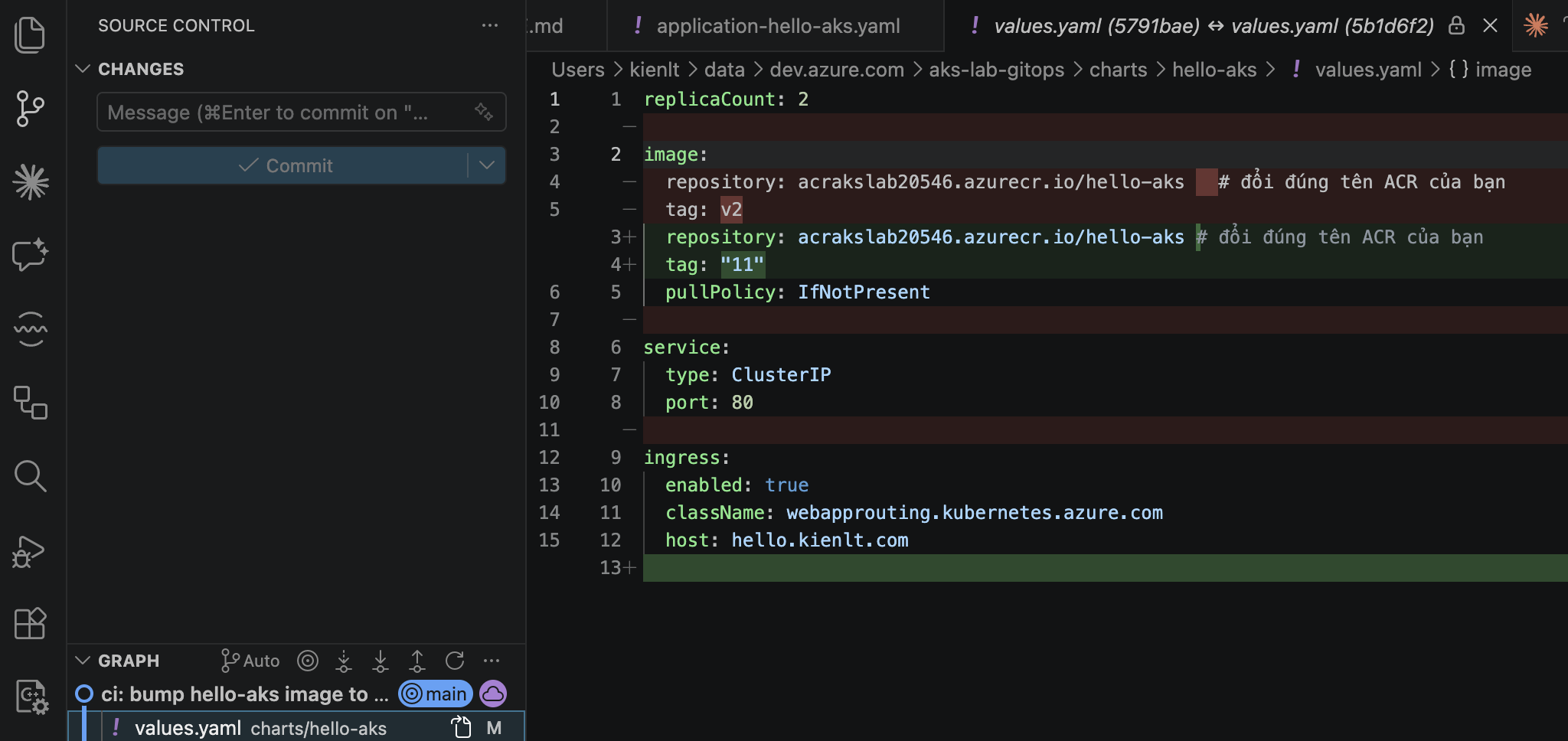

Verify in Gitops Repo

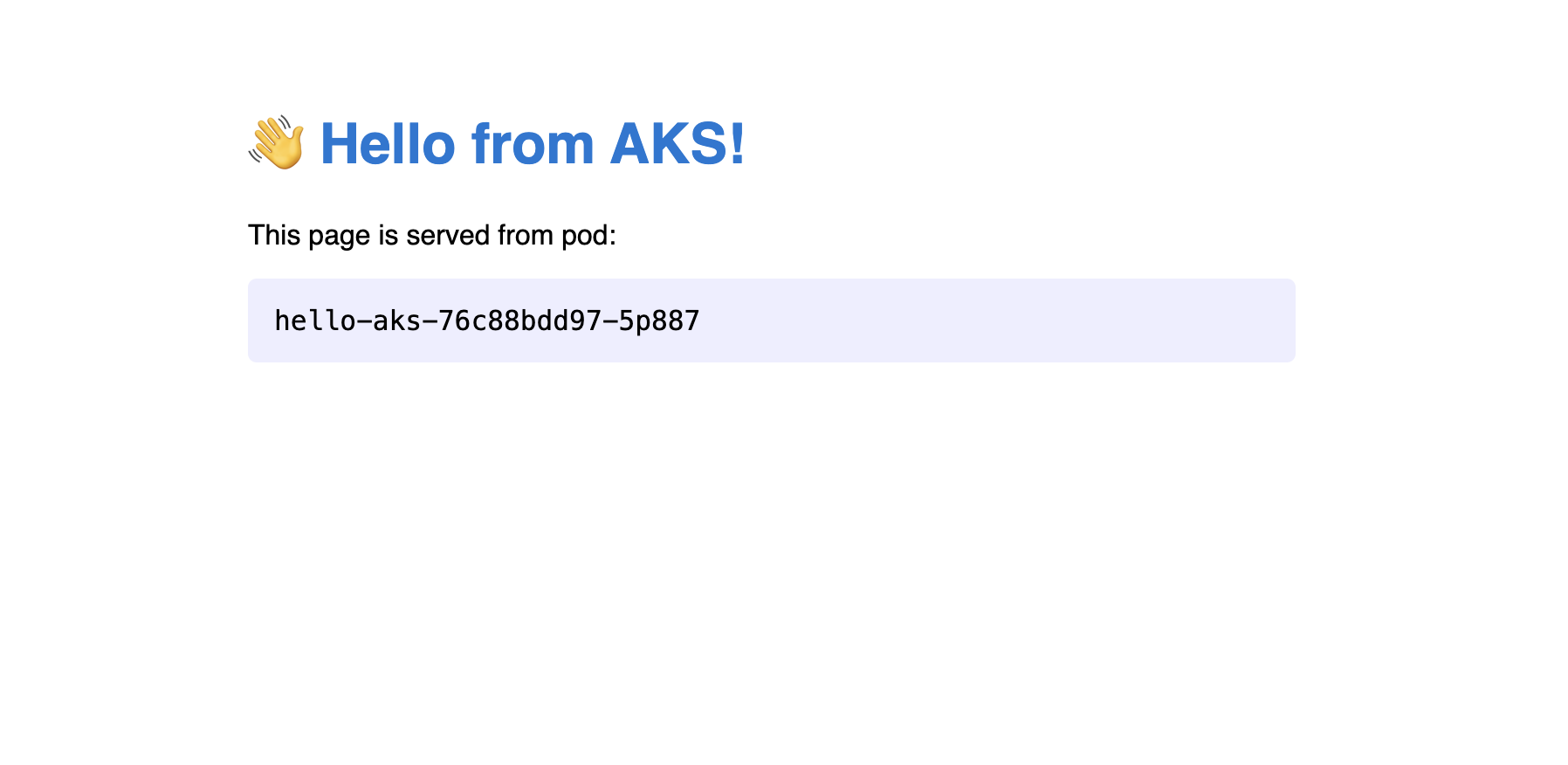

View via domain
Conclusion
If possible, I'd recommend GitHub Actions or GitLab Runners over Azure DevOps. It feels unnecessarily complex to me!
But good to know how it works when you have to use it, especially for Azure's ecosystem!
Cleanup
- Delete resource group:
az group delete -n rg-aks-lab --yes --no-wait
- Stop self-hosted agent
- Revoke PATs
